Walther Systemtechnik VMS-08 Assembly Instructions Manual

Mini-full-jet valve
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

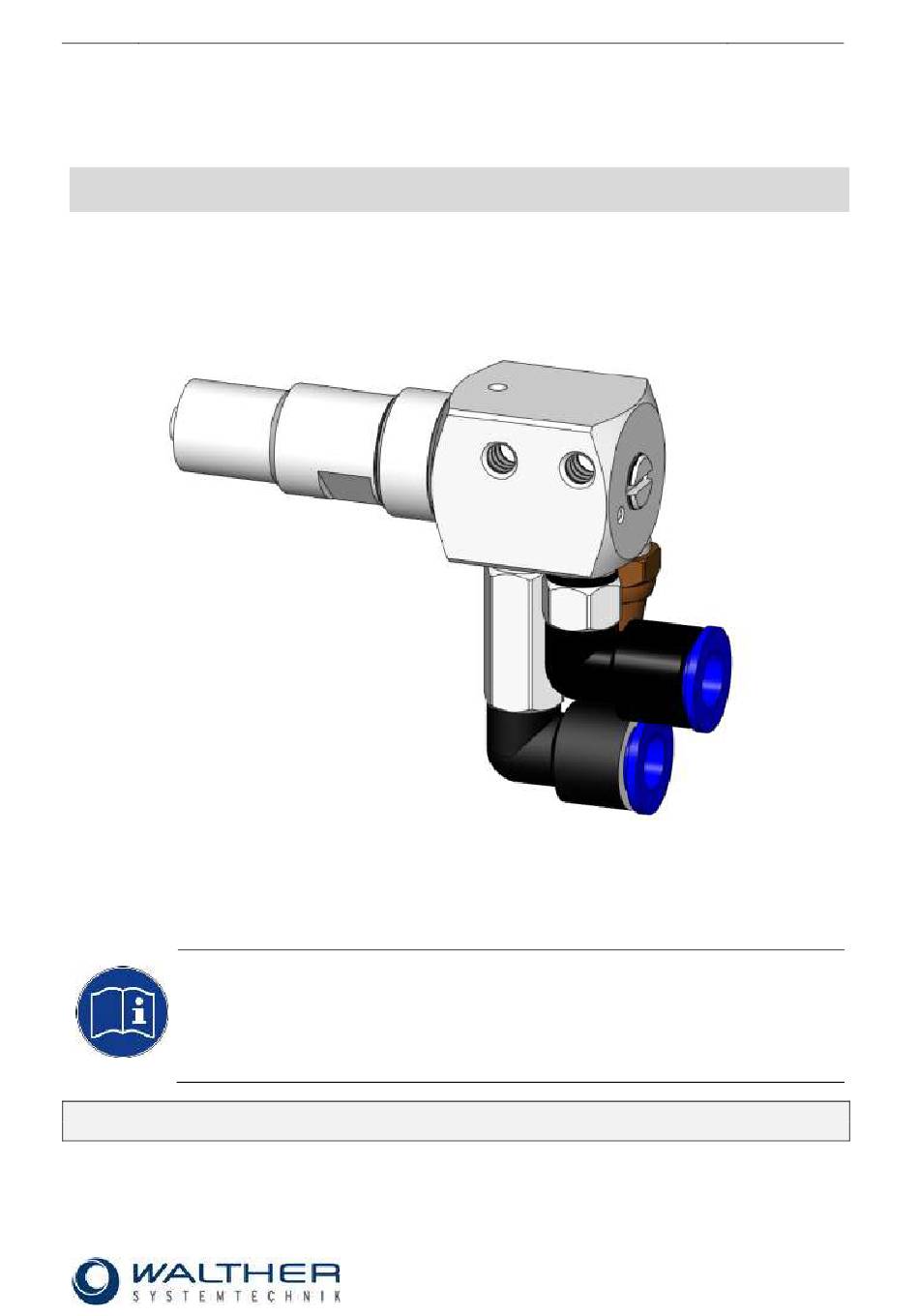

Rev. 1.1
Assembly Instructions
MINI-Full-Jet Valve VMS-08
Article Number:
NOTE
Please read the Assembly Instructions carefully before first using the incomplete device and
strictly adhere to the instructions!
This incomplete device may only be worked with and worked on by persons who are
familiar with the assembly instructions and the current regulations for industrial safety and
accident prevention.
Always keep a translated version of the original Assembly Instructions at the device!
Assembly Instructions - MINI-Full-Jet Valve VMS-08
V08-...
The instructions have to be close at hand any time!
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMS-08 and is the answer not in the manual?

Questions and answers

Related Manuals for Walther Systemtechnik VMS-08

Summary of Contents for Walther Systemtechnik VMS-08

  • Page 1 Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 1 of 16 Assembly Instructions MINI-Full-Jet Valve VMS-08 Article Number: V08-… NOTE Please read the Assembly Instructions carefully before first using the incomplete device and strictly adhere to the instructions! This incomplete device may only be worked with and worked on by persons who are familiar with the assembly instructions and the current regulations for industrial safety and accident prevention.

  • Page 2: Table Of Contents

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 2 of 16 Table of Contents Page EC DECLARATION OF INCORPORATION ........................4 INTRODUCTION ..............................5 ......................5 ARGET ROUP OF THE SSEMBLY NSTRUCTIONS ............................5 IST OF IGNS AND YMBOLS SAFETY................................
  • Page 3 Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 3 of 16 10.5 ......................16 RTICLE UMBERS FOR DAPTERS 10.6 ..............................16 CCESSORIES Walther Systemtechnik GmbH – D 76726 Germersheim Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91 http://www.walther-2000.de – info@walther-2000.de...

  • Page 4: Ec Declaration Of Incorporation

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 4 of 16 EC Declaration of Incorporation in accordance with EU Machinery Directive 2006/42/EU, dated 17 May 2006, Appendix II B We herewith confirm that the below mentioned incomplete device meets the basic requirements for safety and health as stated in EU Machinery Directive 2006/42/EU for its design and construction as well as for the configuration released by us on the market.

  • Page 5: Introduction

    Three hose are employed for supplying control air for opening, control air for closing and medium. The full jet valves of the VMS-08 series are precision tools. Always keep clean and observe minimum instructions to maintain a long useful life of the valve.

  • Page 6: Warranty And Liability

    GmbH. 2.4 Correct Use The VMS-08 MINI Full-jet Valve is a needle valve suitable for the processing of sprayable media in continuous as well as intermittent use. It is not suitable for spraying aggressive fluids such as acids, alkaline solutions, cleaning agents, chemicals etc.

  • Page 7: Transport

    The type of packaging depends on the individual mode of shipping. If not separately contracted, the packaging is in accordance with the rules and regulations of Walther Systemtechnik GmbH. This rule is in accordance with the Federal Association for Packaging HPE.

  • Page 8: Initial Start-Up

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 8 of 16 5 Initial Start-up 5.1 Mounting and Installation The spraying device can be installed in any position. The distance of the nozzle to the application surface depends on the required spraying width. The larger the distance of the nozzle to the application surface, the larger will be the spraying width of the material.

  • Page 9: Operation

     The valves of the VMS-08 series usually operate with a control air pressure of 5 - 7 bar. In case high material pressures are necessary, the safety regulations of the trade association must always be ob- served.

  • Page 10: Turning On

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 10 of 16 6.4 Turning on  Turn on energy supply.  Turn on supply for atomizer air, control air and material.  Use the control unit to start device. ...

  • Page 11: Maintenance And Repair

    Otherwise, ejected components can cause injuries. The full jet valves of the VMS-08 series are high precision tools. Always keep clean and observe minimum instructions to maintain a long and useful life of valve. We recommend lubricating moveable parts regularly, and greasing threads, especially the nozzle threads, when replacing or cleaning the nozzle.

  • Page 12: Replacing Nozzle And Nozzle Needle

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 12 of 16 8.5 Replacing Nozzle and Nozzle Needle CAUTION Make sure that all connections are depressurized.  Disconnect all connections from energy, pressure and material supply!  Remove/unscrew Luer-Lock adapter (1).

  • Page 13: Troubleshooting

    9.1 General Information IMPORTANT First check all supply lines for proper connection and serviceability. In case of serious problems that cannot be resolved, please contact the Walther Systemtechnik GmbH cus- tomer service. 9.2 Customer Service / Support Walther Systemtechnik GmbH...

  • Page 14: Appendix

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 14 of 16 10 Appendix 10.1 Dimensioned Drawing 10.2 Dimensioned Drawing with Luer-lock Walther Systemtechnik GmbH – D 76726 Germersheim Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91 http://www.walther-2000.de – info@walther-2000.de...

  • Page 15: Spare Part Drawing

    Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 15 of 16 10.3 Spare Part Drawing 10.4 Spare Part List Dwg.-No. Article No. Description 97211997 Luer-Lock adapter, ø0.5mm, M12 x 0.75, complete 97221308 Holder for Luer-Lock adapter 97640431 O-Ring 97810098...
  • Page 16 Assembly Instructions - MINI-Full-Jet Valve VMS-08 Rev. 1.1 Page 16 of 16 Article No. Description 97640580 Sealing kit Viton 97640739 Sealing kit ISOLAST 10.5 Article Numbers for Luer-Lock Adapters Please indicate required size when ordering spare parts for adapter sets (needle and adapter). Always re- place complete adapter sets at one time! Available adapter sizes (ø)
