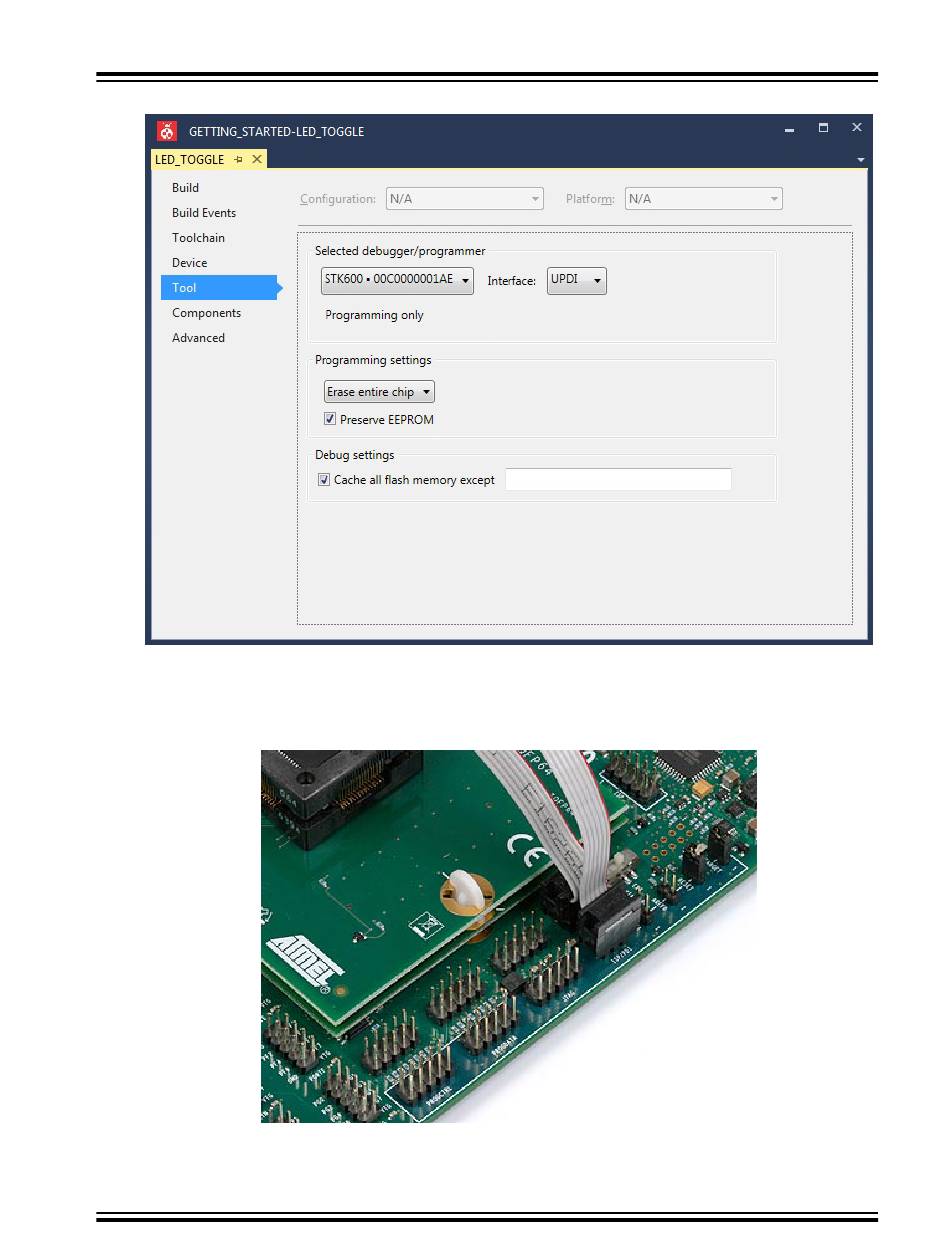

Figure 4-11. Debugger and Interface for ATmega4809
8.
Build the project by clicking Build → Build Solution or using the shortcut F7.
9.
Connect the embedded debugger on STK600 to ATmega4809 by connecting a cable between the
ISP/PDI headers, as shown in the figure below.
Figure 4-12. UPDIConnection on STK600
10. Connect PB2 to SW0, and PB5 to LED0 by using cables.
©
