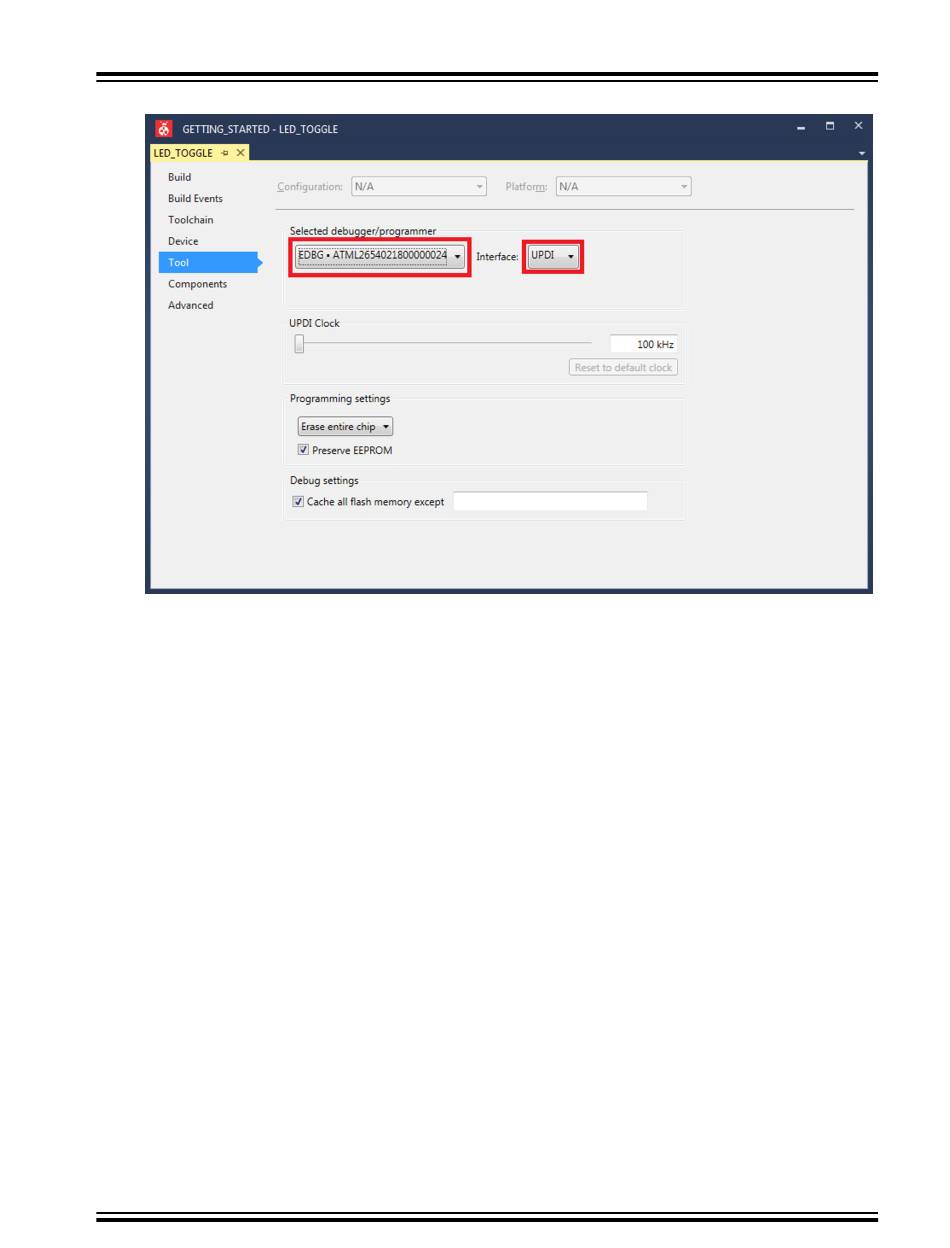

Figure 4-6. Debugger and Interface for ATmega4809
9. Build the project by clicking Build → Build Solution or by using the shortcut F7.
10. Program ATmega4809 with the project code and start debugging by clicking Debug → Start
debugging and break or by using the shortcut ALT+F5. The application is programmed onto the
device and program execution should break in main.
11. Run the code by clicking Debug → Continue or by using the shortcut F5).
12. Verify that LED0 is lit when SW0 is pushed on the ATmega4809 Xplained Pro.
4.2

Atmel Studio with STK600

Prerequisites
• Atmel Studio 7.0 1645 or above installed
• The STK600 board connected to Atmel Studio 7.0 via the on-board USB connector.
Workflow
1. Launch Atmel Studio 7.0.
2. Start creating a new project by clicking New → Project... or by using the shortcut Ctrl+Shift+N, as
shown in the figure below.
©
