Step By Step Instructions
19

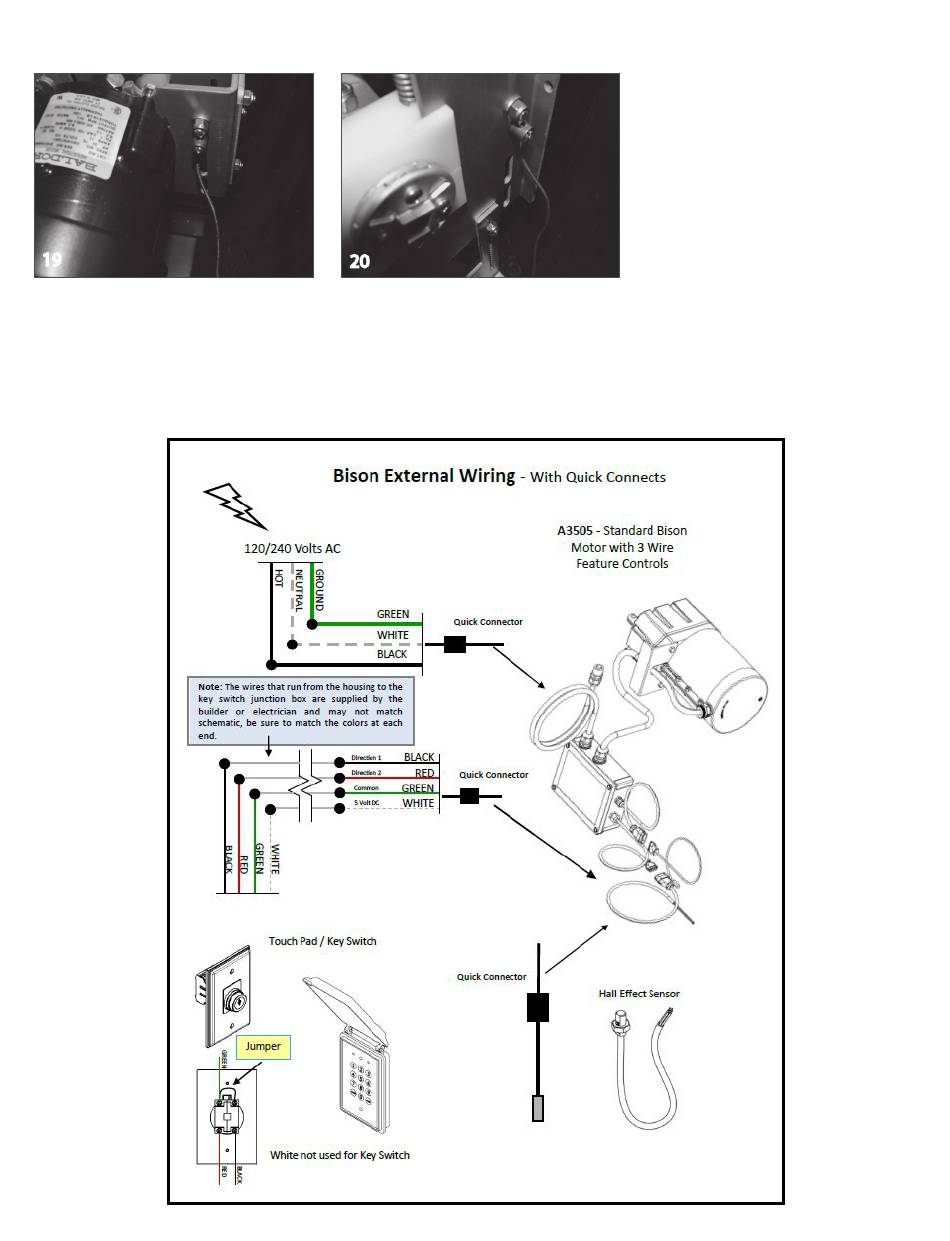

Attach the #8 copper bond wire that is
stubbed into the cover box to the bonding
lug on the motor end of the mechanism.
Wiring the Electrical Switch
There is one motor option available, the new 3 wire motor. It is critical that the control switch that controls the motor be mounted in an
all-weather box, in a location where 100% of the pool is visible. Use the following wiring diagram.
© Latham Pool Products, Inc. 2019. All rights reserved.
20
Make the same connection with the #8
copper bond wire that is in the cover box
on the non-motor end of the mechanism.
9 of 21
