Pool Cover Specialists INFINITY 4000 Installation Manual page 5

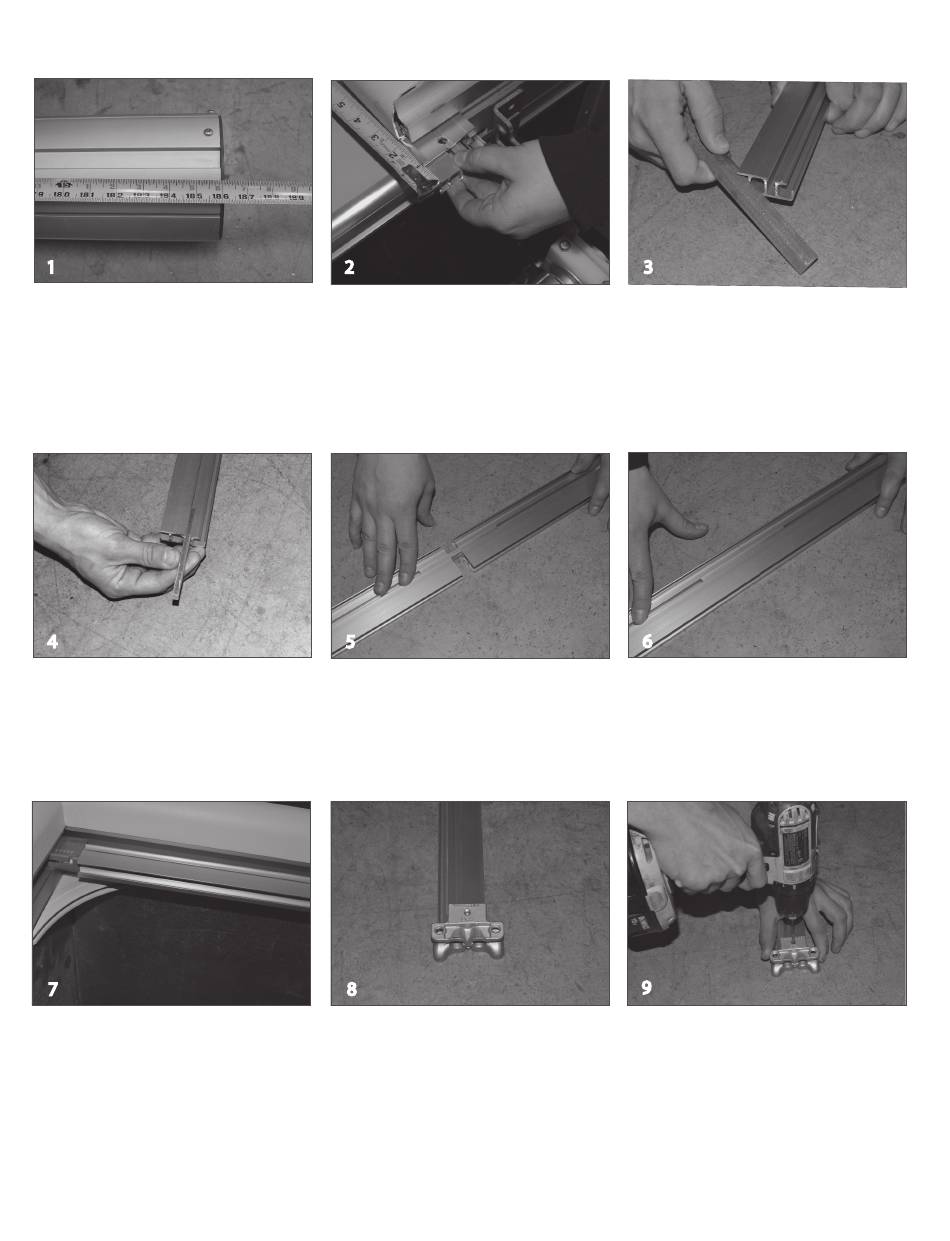

Step By Step Instructions Step By Step Instructions
1
To determine if the cover system was
ordered correctly for the pool, the length of
the roll-up tube should be 6 inches shorter
than the track space.
For example, for a 16 ft track space, the
correct length of roll-up tube is 15 ft 6 in.
4
Slide the center splice (23) into the center
channel of the track.
7
When encapsulation retainer is being used,
the track is normally installed during the
cover installation. With the track installed,
make sure it is flush with the end wall at
the shallow end.
© Latham Pool Products, Inc. 2019. All rights reserved.
2
Cut the length of the track on each side of
the pool so it will extend 1 inch past the end
of the retainer and into the cover box.
5
Lay the sections of track on the deck and tap
them together using a rubber mallet so the
center splice interlocks with each section of
track.
8
Using a 5/32" allen wrench, loosen the screw
on the top of the guide (14). Insert the guide
on the end of the track that will extend into
the housing.
5 of 21
Numbers in parenthesis refer to parts shown on page 3.
3
Before splicing the sections of track together,
file all track ends thoroughly, rounding
all edges and removing all burrs. Clean metal
shavings from the track. This step is
extremely important! If the track isn't filed
smooth, damage can occur to the ropes,
slider and cover.
6
Continue tapping the end of the track until
the two sections of track are tight together
so there is no gap between the lengths of
track.
9
While holding the guide firmly, use a drill
with a 3/16" bit to drill through the hole in
the guide and through the track. Remove
the guide. Do this for the track on both sides
of the pool.
