Running Out The Cover; Attaching The Cover And Bonding Wire - Pool Cover Specialists INFINITY 4000 Installation Manual

Step By Step Instructions

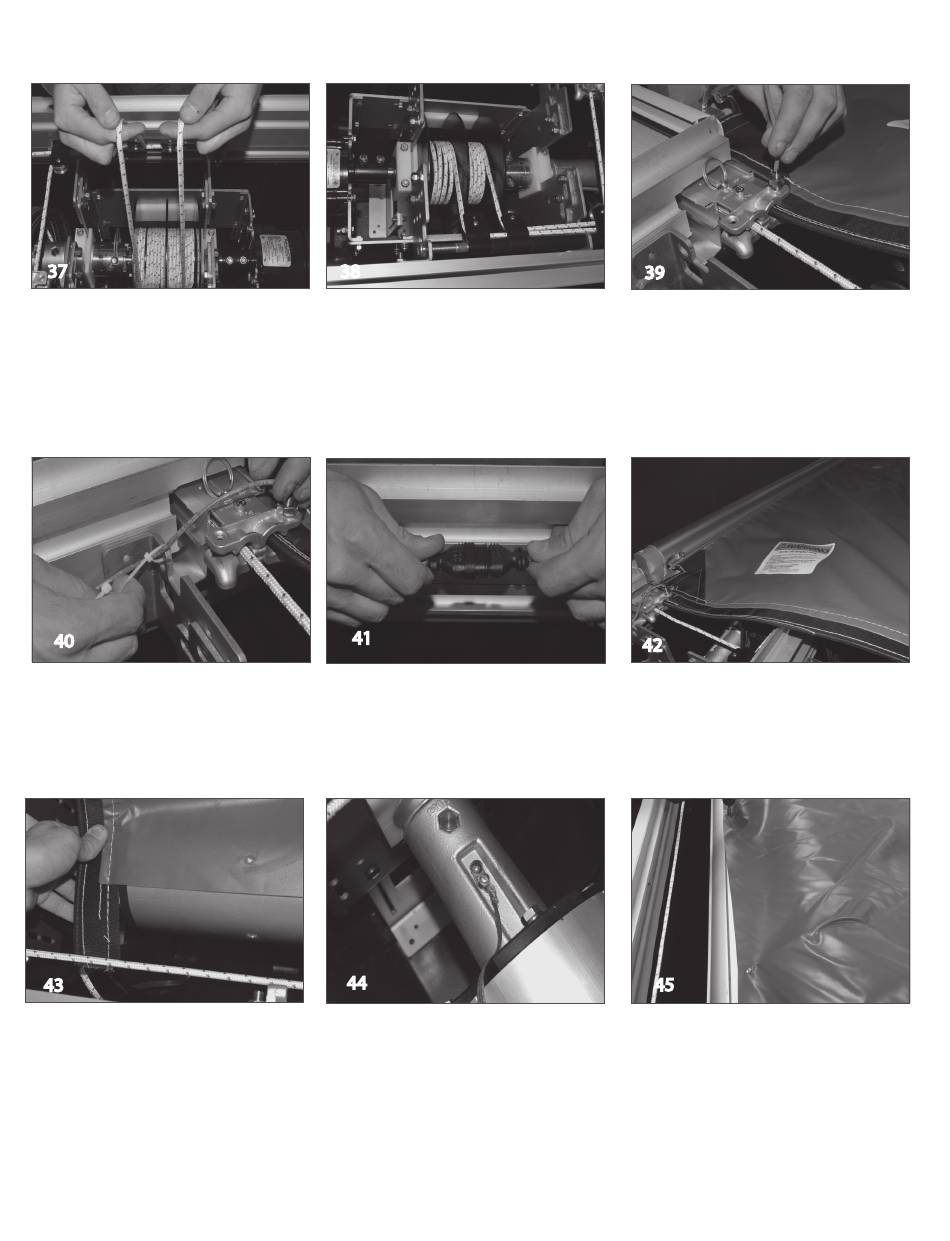

37
While holding the ropes over the mechanism,
run the key switch in the cover position.
40
Use cable ties (35) to secure the sensor wire
to the motor end of the mechanism to keep
it secure and from getting caught in the
cover or ropes.
43
Attaching the Cover & Bonding Wire
Make sure the webbing continues straight as
it travels from the track to the roll-up tube.
Attach the cover to the roll-up tube using
#10 x 1/2" SS tek screws (36). The first screw on
each end of the tube needs to be 3 inches
from the end of the tube. As the cover rolls up
on the tube, the webbing will be rolling up
over the end casting.
© Latham Pool Products, Inc. 2019. All rights reserved.
38
As the excess rope is wrapped around the
rope reel, make sure it goes on straight
without getting crossed with each other.
41
Connect the sensor wire to the motor wires
by pressing the wire connections together.
44
Attach the bond wire from the tail of the
cover to the bonding lug (37) that is
attached to the end casting.
16 of 21
Numbers in parenthesis refer to parts shown on page 3.
39
Installing the Sensor
Thread the sensor into the mounting hole
on the cover side of the guide. The webbing
of the cover will pass under the sensor.
If a stone lid is being used, the sensor may
need to be mounted on the underside of
the guide. The orientation of the magnet
will need to be reversed.
42

Running out the Cover

Operate the key switch in the cover position to
run the cover over the pool. Assist the cover as
it is being pulled over the pool by helping
unfold it and feed it into the cover track.
45
Distribute the slack of the cover evenly
between each screw across the length of
the tube. Secure the cover to the roll-up
tube using #10 x 1/2" SS tek screws (36)
every 2-3 feet.
