Pool Cover Specialists INFINITY 4000 Installation Manual page 10

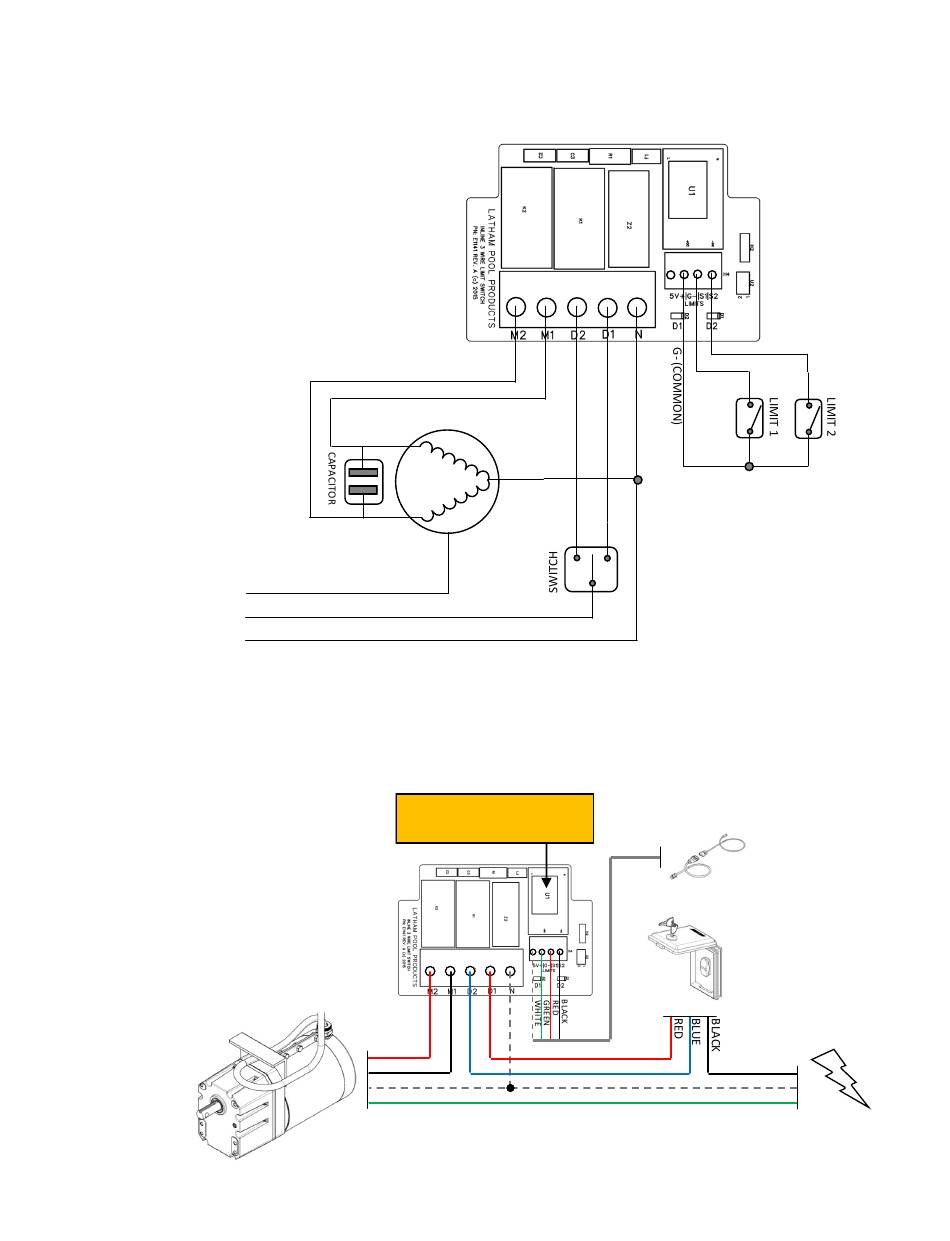

For the 3 Wire motor option, use the wiring diagrams below.
NOTE: The black wire may be replaced with
blue depending on what motor is being used.
110-240 VAC
50/60 Hz
15 AMP GFCI
______________________________________________________________________________________
NOTE: The black wire may be replaced
with blue depending on what motor is
being used.
© Latham Pool Products, Inc. 2019. All rights reserved.
Technical Wiring Schematic
BLACK
RED
GROUND
HOT (LINE 2)
NEUTRAL (LINE 1)
3 WIRE 110/220 VAC MOTOR
RED
BLACK
WHITE
GREEN
3 WIRE MOTOR
WHITE
Simplified Wiring Schematic
WARNING:
RELAY RATING MUST
MATCH SUPPLIED VOLTAGE!
10 of 21
S2
S1
SENSOR
SWITCH
110/220 VAC
LINE 2
LINE 1
GROUND
