Attaching The Leading Edge Tube - Pool Cover Specialists INFINITY 4000 Installation Manual

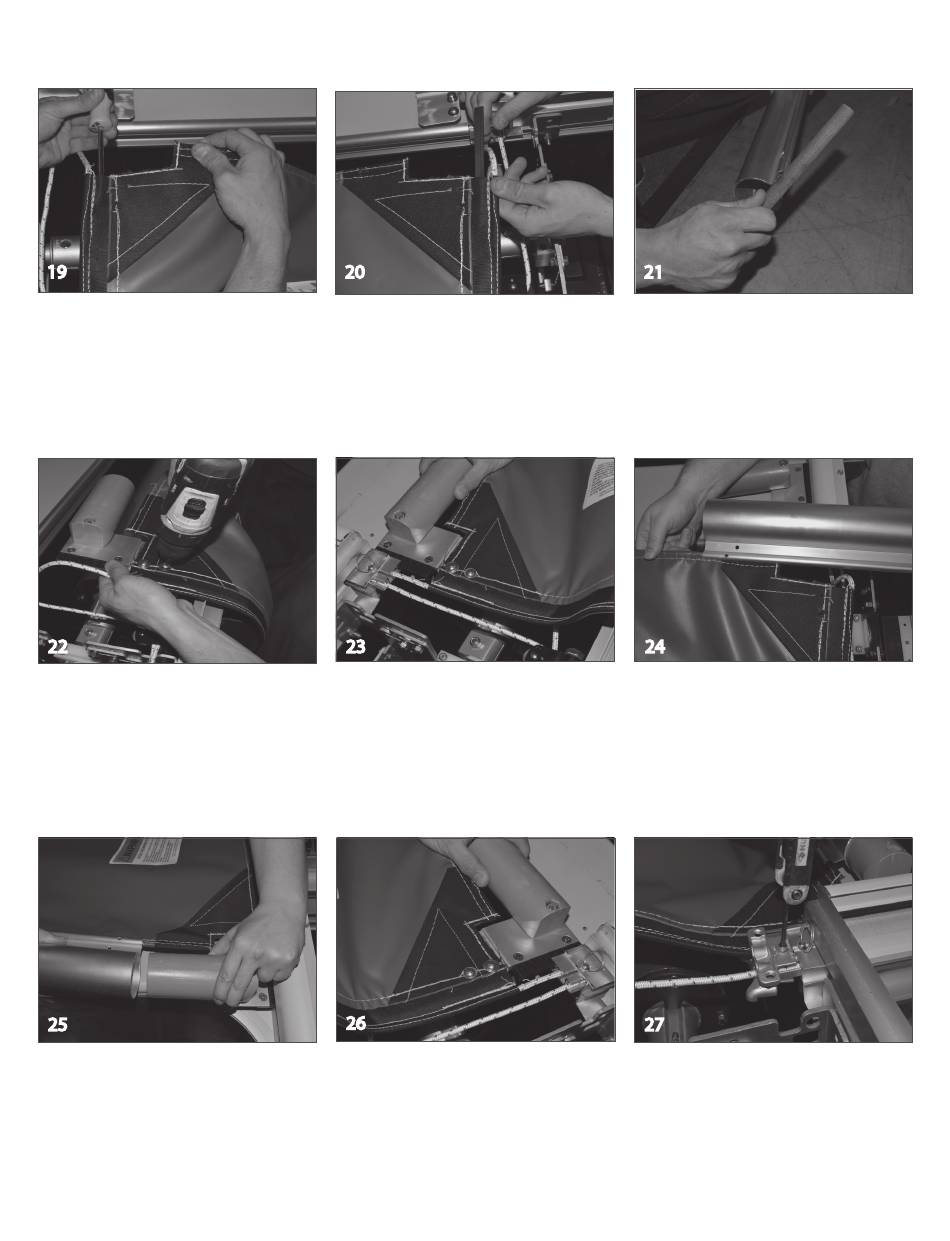

Step By Step Instructions
19
On the front corner of the cover, that is on the
same side as the motor, insert a screw driver
into the end of the webbing to open it up and
create a pocket.
22
Attach the leading edge insert and slider
plate to the cover by threading (2) 4-20 x 5/8"
two screws (32) and the 1/4 x 5/8" washers
(34) that come attached to the slider plate,
through the pre punched holes in the cover
and into the slider plate. Repeat this on both
sides of the cover. Use caution if using a drill
to attach these screws.
25
Slide the nylon leading edge inserts into the
ends of the leading edge tube. Note, one of
these insert assemblies is in the track while
the other is outside of the track. Make sure
the inserts can slide freely inside the leading
edge tube. If they don't, clean off any burrs
that may be causing them to bind.
© Latham Pool Products, Inc. 2019. All rights reserved.
20
Apply the supplied grease to the magnet.
This will help it slide in the webbing easier.
Slide the magnet (31) into the webbing with
the same side facing up that shut the motor
off when it was passed in front of the sensor.
23
On one side of the cover, pull the rope as it
comes out of the track as you feed the slider
and cover into the track. Keep pulling until
the slider is in the track a few inches. Having
the slider on one side of the cover in the track
will help with the installation of the leading
edge bar.
26
Insert the side of the cover that isn't in the
track yet. Pull the rope as it comes out of
the cover track
14 of 21
Numbers in parenthesis refer to parts shown on page 3.
21

Attaching the Leading Edge Tube

File the edges of the rope channel before
sliding it onto the rope hem of the cover.
If the leading edge tube will remain exposed,
slide the tube on to the bead on the front of
the cover.
24
On the opposite side of the cover that hasn't
been pulled in the track yet, slide the leading
edge tube on the rope hem along the front
edge of the cover. Pull tight on the cover to
help slide the leading edge bar onto the
cover.
27
With the cover and slider in the track, insert
the guide on the end of the track. Use a
5/32" allen wrench to tighten the screw that
connects the two sections of guide together.
Tip: To prevent the screw and nut from
seizing, get it wet before tightening.
