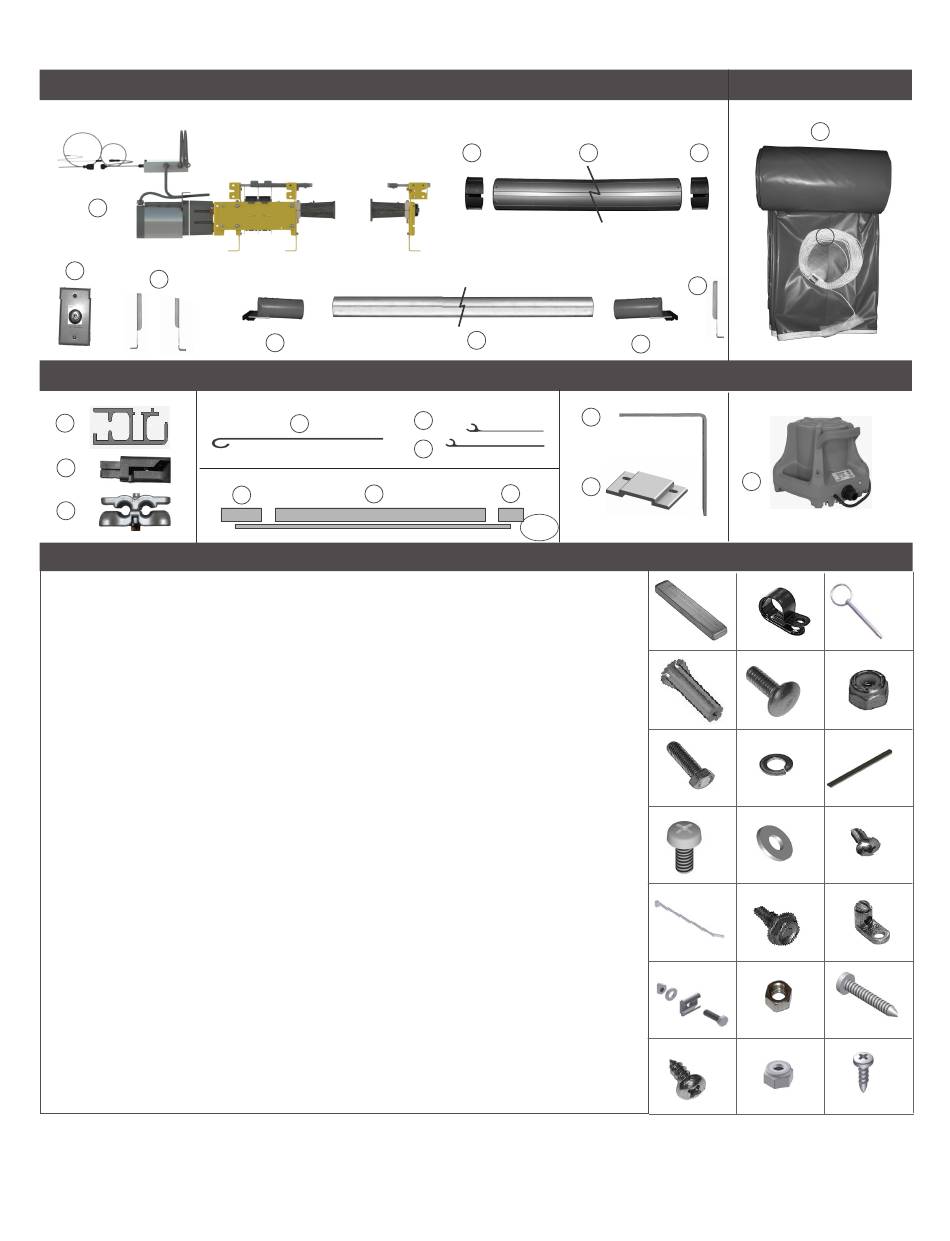

Parts Reference Guide
Mechanism Components
1
7
3
Cover Track
12
13
14
Parts List
*
1.
See below list with mechanism options
3. FT0001
Infinity 4000 Mounting Feet (Set)
4. M9682
Composite Tube Insert - 6"
5. X0673
Roll-up Tube 6" extruded anodized 20'
7. IN1103
IDEC Key Switch Assem w/ Installation box
8. UTO1016
Slider Assembly for 2-1/2" LE
9. 54806-24
Extruded Leading Edge Tube
Cover fabric
10. Cover
11. C0114
Rope Diamond w/ Silver Tracer
12. 55031
Outside Slider Under Track - 22'
13. UTO1800
Under Track Pulley Cartridge Assembly
14. UT1010
Under Track SS Speed Guide Kit
15.
54809
Standard Aluminum Lid Extrusion 24 '
16.
54807
5" Lid Hinge 13'
17. 54812
7" Lid Hinge 13'
18. 22078
Standard 34" Motor Lid End
19. 22077
Standard 18" Opposite Lid End
20. M4105
Standard UT Lid Bracket
21. LD2103
Drop in Anchor Plate Kit
22. MH232
Little Giant cover pump & instructions
23. 22130
Splice, Under Track (outside slider)
24. H0075
Rope Loop Black Plastic
25. 33314
Ring Pin
26. 33600
#10 x 1" Red Holob Anchor
The parts list above is typical for most pools up to
20' x 40' and includes all parts necessary to install
the PCS system. However, parts will vary for
longer or wider pools and according to your
specific order.
© Latham Pool Products, Inc. 2019. All rights reserved.
8
Cover Lid
15
15
18
27. H0294 Carriage bolt 1/4-20 x 3/4"
28. H0276 Nut Nylock 1/4-20"
29. H0096 Bolt HH 3/8-16 x 1-1/4"
30. H0006 Washer split lock 3/8"
31. 10901 Magnet 7/16 x 6" Autostop Sensor
32. 33356 1/4 - 20 x 5/8" Phillips Pan Head
33. H0002 1/4 x 5/8" Washer
34. H0152 Screw PPMS 10-32 x 1/2"
35. 10815 Cable Tie Miniature
36. H0313 Screw HHWSM tek 10 x 1/2" SS
37. E1086 Bonding Lug Copper L35
38. 24004 VFH0002 2009 T-Slot Bolt Lock
39. H0512 Nut 5/16" - 18
40. 33248 #12 x 1-1/2" Phillips Pan Head Screw
41. H0310 Screw PPSM 10 x 1/2" SS
42. H0176 #10-32 Nylock Nut
43. 33250 #10 x 5/8" Phillips Pan Head Screw
*
IM4010-R3LV-GLD Infinity 4000 110V Bison Low Voltage -RRT
IM4010-R3-GLD Infinity 4000 110V Bison (Rec Right)
IM4010-L3LV-GLD Infinity 4000 110V Bison Low Voltage -RLT
IM4010-L3-GLD Infinity 4000 110V Bison (Rec Left)
IM4000-R3LV-GLD Infinity 4000 110V Bison Low Voltage -DRT
IM4000-R3-GLD Infinity 4000 110V A3361 (Deck Right)
IM4000-L3LV-GLD Infinity 4000 110V Bison Low Voltage -DLT
IM4000-L3-GLD Infinity 4000 110V A3361 Bison (Deck Left)
4
5
9
Lid Support Bracket
Side view
20
16
17
Top view
21
19
16/17
3 of 21
Cover Fabric
10
4
3
8
Cover Pump
22
Misc. Hardware
24
23
26
27
30
29
32
33
35
36
39
38
41
42
11
25
28
31
34
37
40
43
