Note:
1. GV-FWC connection to GV-AS Controller via TCP/IP is only supported by GV-AS210 /
2110 / 2120 / 410 / 4110 / 4111 / 810 / 8110 / 8111 V2.20 or later.
2. Face images are also sent to the GV-ASManager upon recognition only when the
GV-FWC is connected to GV-AS Controller via TCP/IP.

Step 6 [Optional] Connecting GV-FWC to GV-Reader
Only for access control requiring both face recognition plus card swipe, to
connect GV-FWC to a GV-Reader, see 2.1 Connecting Extended Reader.
Note: For access control requiring both face recognition plus card swipe, GV-FWC must be
connected to GV-AS Controller via TCP/IP.
Once setup's complete, access records by Face IDs are recorded on GV-ASManager upon
recognition. If a message of "Access Denied: Invalid Card" appears on GV-ASManager, you
can right-click on the message to add the card to your access database.

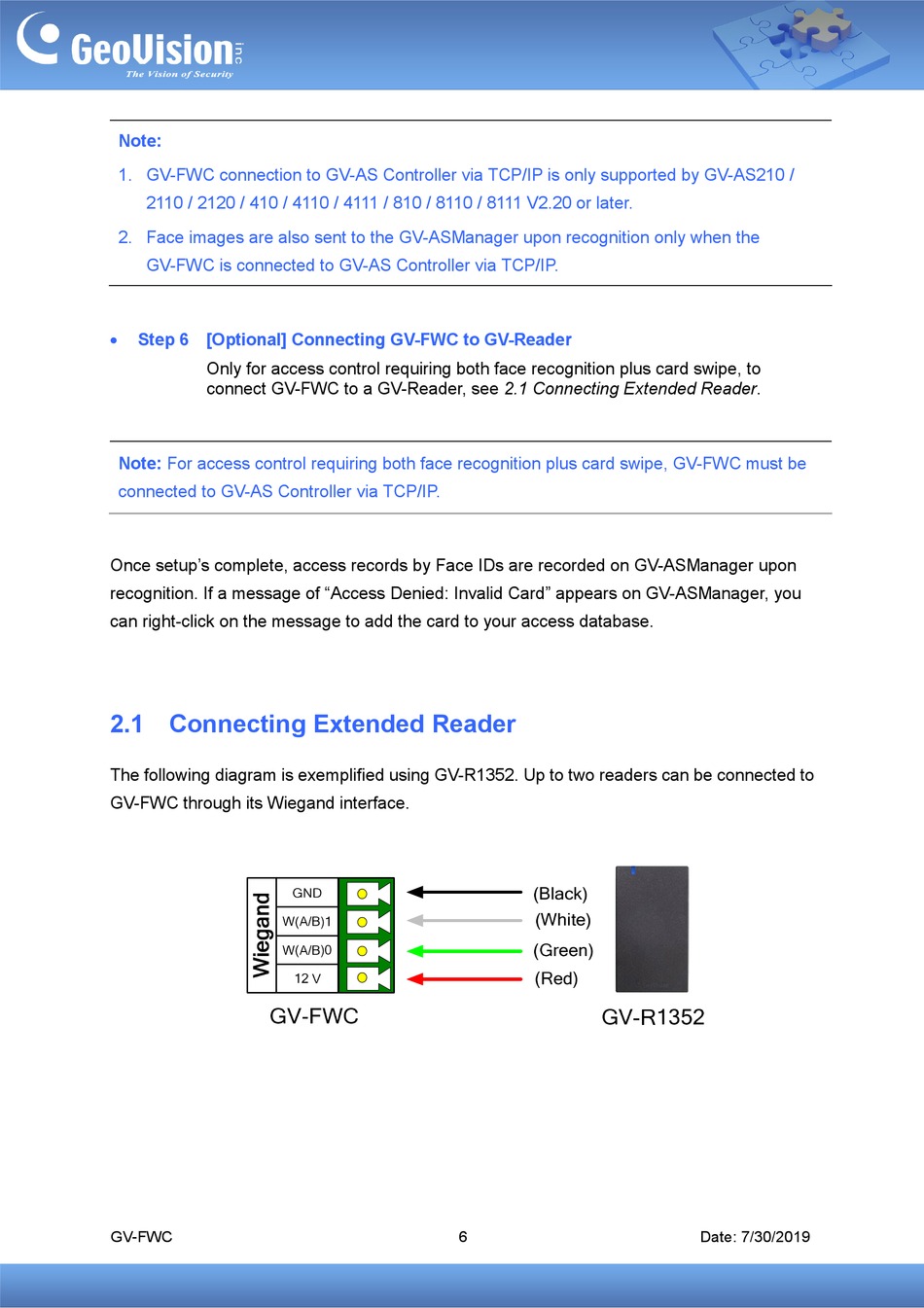

2.1 Connecting Extended Reader

The following diagram is exemplified using GV-R1352. Up to two readers can be connected to
GV-FWC through its Wiegand interface.
GV-FWC 6 Date: 7/30/2019
