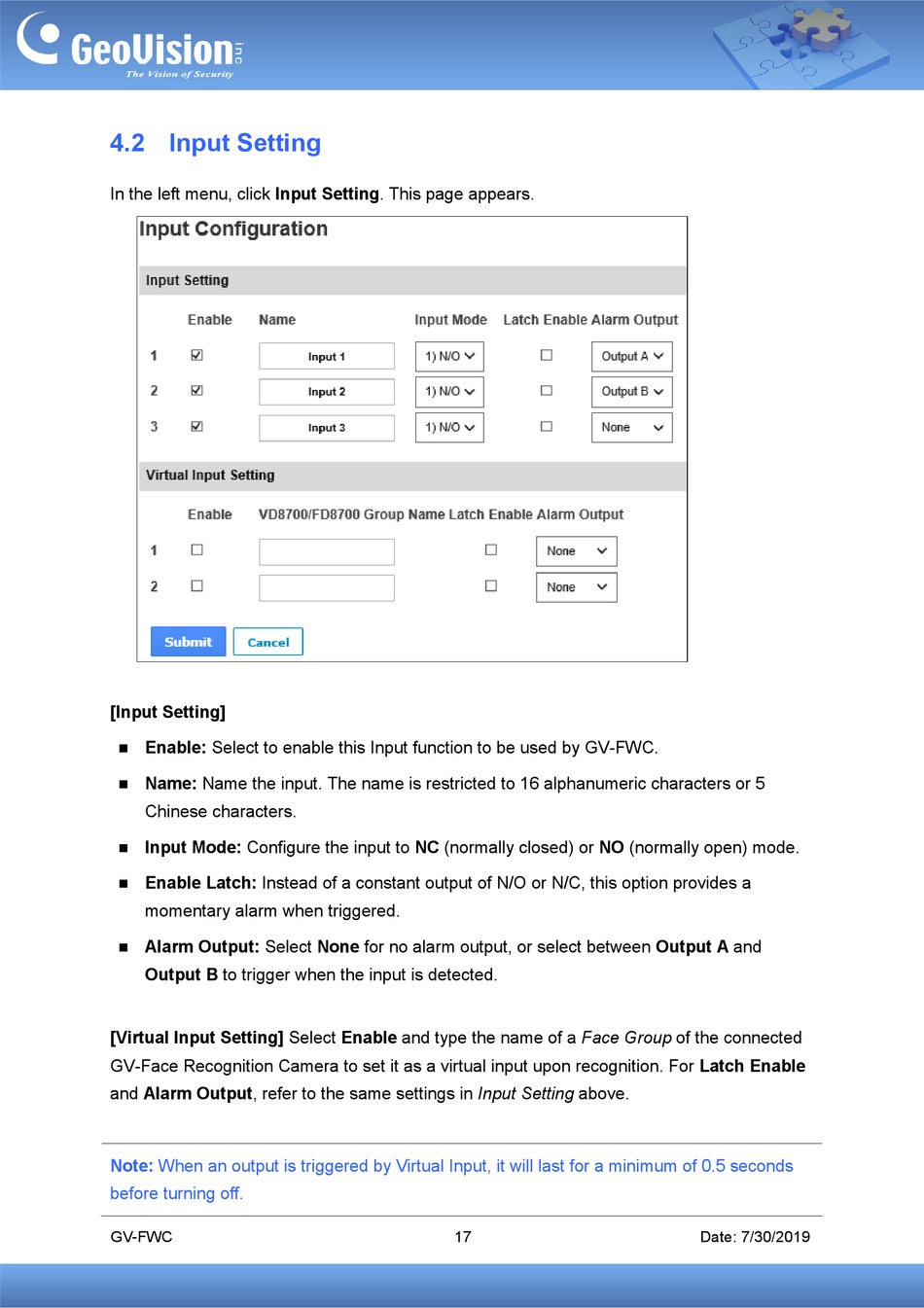

4.2 Input Setting

In the left menu, click Input Setting. This page appears.
[Input Setting]
Enable: Select to enable this Input function to be used by GV-FWC.

Name: Name the input. The name is restricted to 16 alphanumeric characters or 5

Chinese characters.
Input Mode: Configure the input to NC (normally closed) or NO (normally open) mode.

Enable Latch: Instead of a constant output of N/O or N/C, this option provides a

momentary alarm when triggered.
Alarm Output: Select None for no alarm output, or select between Output A and

Output B to trigger when the input is detected.
[Virtual Input Setting] Select Enable and type the name of a Face Group of the connected
GV-Face Recognition Camera to set it as a virtual input upon recognition. For Latch Enable
and Alarm Output, refer to the same settings in Input Setting above.
Note: When an output is triggered by Virtual Input, it will last for a minimum of 0.5 seconds
before turning off.
GV-FWC 17 Date: 7/30/2019
