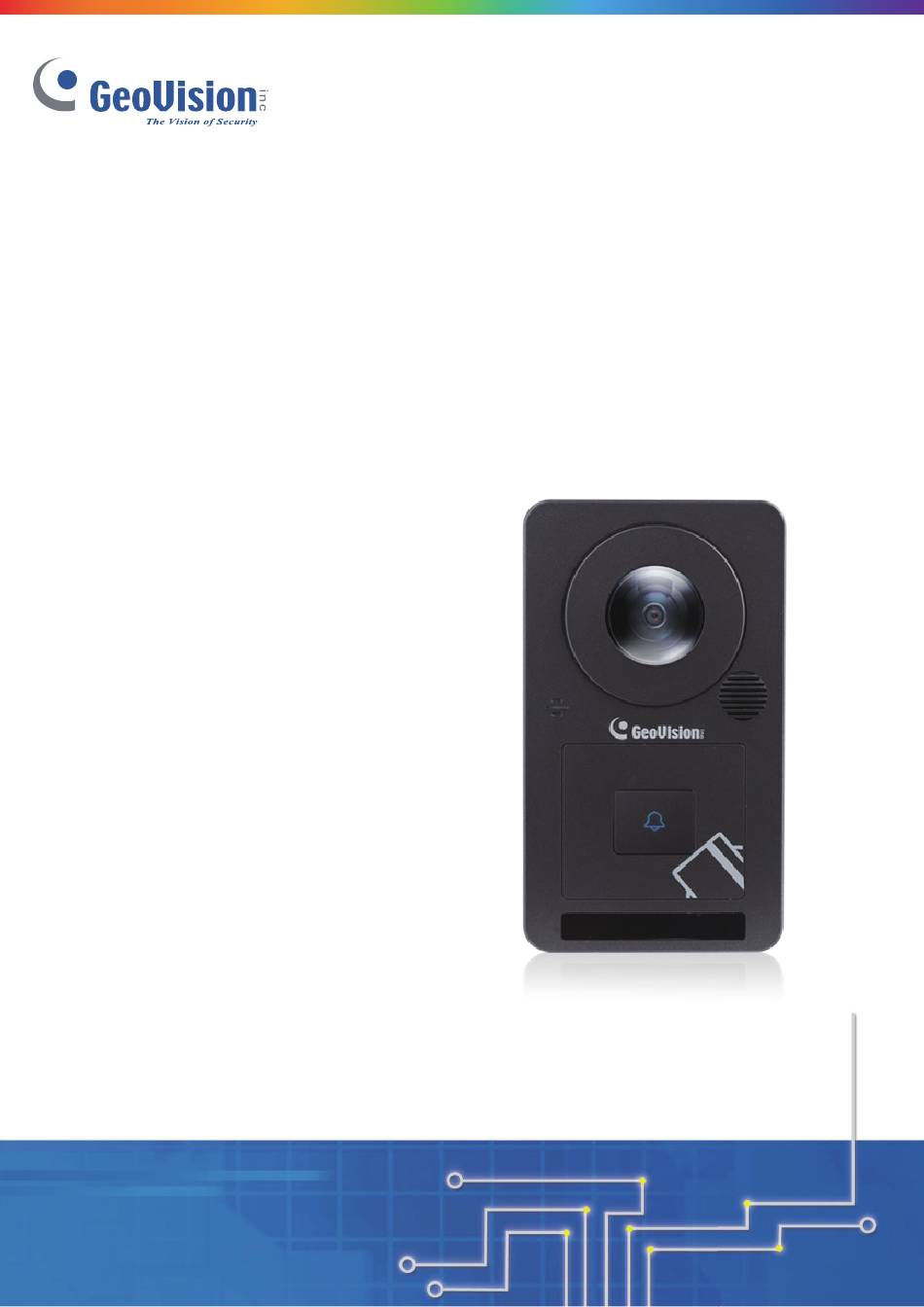

Quick Start Guide
GV-CS1320 Camera Access Controller
Thank you for purchasing GV-CS1320 Camera Access Controller. This guide is designed to assist the new
user in getting immediate results from the controllers. For advanced information on how to use GV-CS1320,
please refer to GV-CS1320 Camera Access Controller User's Manual on Software CD / DVD.
CS1320V211-Q-G- A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-CS1320 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-CS1320

Summary of Contents for GeoVision GV-CS1320

  • Page 1 Quick Start Guide GV-CS1320 Camera Access Controller Thank you for purchasing GV-CS1320 Camera Access Controller. This guide is designed to assist the new user in getting immediate results from the controllers. For advanced information on how to use GV-CS1320, please refer to GV-CS1320 Camera Access Controller User's Manual on Software CD / DVD.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    3.1 Connecting RS485 Readers .................. 8 3.2 Connecting Network Readers ................9 3.3 Connecting Input Devices ..................10 3.4 Connecting Output Devices ..................11 3.5 Connecting GV-CS1320 to PC................12 3.6 Connecting the Power...................14 4. Accessing the GV-Fisheye Camera..........15 4.1 Web Browser ......................15 4.2 Looking Up the Dynamic IP Address..............16...

  • Page 4: Installation Considerations

    When placed at a building gate, GV-CS1320 should be about 1.4-1.5 meters above the ground.  When placed at a parking lot gate, GV-CS1320 should be about 1.2 meters above the ground to match the height of vehicles. Face Detection Limitations ...

  • Page 5: Optional Accessories

    Optional Accessories Optional devices can expand the capabilities and versatility of your GV-CS1320. Contact your dealer for more information. Name Details GV-Reader 1352 V2 is a card reader that uses a 13.56 MHz GV-Reader 1352 V2 frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
  • Page 6 Name Details GV-CR420 GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes identification cards and transmits live view through network connection. Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device.

  • Page 7: Introduction

    Introduction 1. Introduction Welcome to the GV-CS1320 Camera Access Controller Quick Start Guide. In the following sections, you will learn the basic installations and configurations of GV-CS1320. For a detailed user manual, see the GV-CS1320 Camera Access Controller User’s Manual on the...

  • Page 8: Packing List

    1.1 Packing List   GV-CS1320 Mounting Plate   Standard Screw x 2 Plastic Screw Anchor x 2   Security Tube Torx Wrench  Silica Gel Bag  Software DVD  Micro SD Card 2 GB  Warranty Card...

  • Page 9: Compatible Software Versions

    1.3 System Requirements To access the functions and settings of GV-CS1320 on the Web interface, ensure your PC has good network connection and use one of the following web browsers: • Internet Explorer 9 x or later • Microsoft Edge •...

  • Page 10: Overview

    1.3 Overview Name Function Lens Receives image. Microphone Receives sound from GV-CS1320. Card Reader Reads ID cards or ID tags. IR LEDs Automatically illuminates for night time use. Speaker Talks to the surveillance area from the local computer. Touch pad and LED Touch to activate the talk mode.
  • Page 11 Introduction LED and Beeper Status Condition Beeper Ready Blue (Connected to GV-ASManager) Purple (Disconnected from GV-ASManager) Access Denied Displays red LED Two short beeps momentarily Access Granted Displays green LED One long beep momentarily Touch pad activated Flashes blue momentarily One short beep Touch pad ignored Returns to blue/purple LED...

  • Page 12: Installation

    2. Installation After the location of your GV-CS1320 is decided, follow the steps below to install the camera access controller. 1. Attach the single gang power box to the wall. 2. Place the mounting plate on the single gang power box and secure with the 2 standard screws provided.
  • Page 13 Installation 4. Secure the security screw on the bottom with the mounting plate.

  • Page 14: Connecting The Camera

    2 readers. You need two power wires and two RS-485 wires from one reader to GV-CS1320. When connecting a second reader to GV-CS1320, you will need to set up a separate power source to power the second reader if the total power consumption (including output devices) exceeds 12V.

  • Page 15: Connecting Network Readers

    Connecting GV-CS1320 3.2 Connecting Network Readers GV-CS1320 supports network connection with GV-CR420 and GV-GF1921 / 1922.

  • Page 16: Connecting Input Devices

    Light Red Button IN2 Brown IN COM Note: You can connect a GV-I/O Box to your GV-CS1320 to give an extra layer of security. For details, see Chapter 8 Connecting to GV-I/O Box 4 Ports, GV-CS1320 Camera Access Controller User’s Manual.

  • Page 17: Connecting Output Devices

    (+) point on the locking device to the Door COM wire on GV-CS1320, connect the two (-) points of the locking device and the external power supply together, and connect the (+) point on the external power supply to the Door NO or Door NC wire on GV-CS1320 based on the state of the locking device.

  • Page 18: Connecting Gv-Cs1320 To Pc

    3.5 Connecting GV-CS1320 to PC Connecting GV-CS1320 to a computer enables you to access its Web interface and connect it to GV-ASManager if the computer is installed with GV-ASManager. The computer running GV-ASManager software can be used to monitor the access information and alarm messages from GV-CS1320.
  • Page 19 Connecting GV-CS1320 When GV-CS1320 is connected to GV-ASManager, GV-ASNotify will generate a notification message whenever the bell button (touch pad) on GV-CS1320 is activated. You can use GV-ASNotify to watch live view and communicate with the surveillance site with the microphone and speaker functions of GV-ASNotify.

  • Page 20: Connecting The Power

    1. Power should only be applied to the unit when all connections are completed and tested. 2. GV-CS1320 produces an output voltage of 12V. You will need to connect an external power supply if the total power consumption exceeds 12V after readers and output...

  • Page 21: Accessing The Gv-Fisheye Camera

    Accessing GV-CS1320 4. Accessing GV-CS1320 4.1 Web Browser To access the functions and settings of GV-CS1320 on the Web interface, ensure your PC use one of the following web browsers.  Browser Internet Explorer 9.x or later  Firefox ...

  • Page 22: Looking Up The Dynamic Ip Address

    4.2 Looking Up the Dynamic IP Address By default, when GV-CS1320 is connected to LAN with a DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Note: The PC installed with GV-IP Device Utility must be under the same LAN with GV-CS1320.
  • Page 23 Accessing GV-CS1320 4. The login page appears. 5. Type the default ID and password admin and click Apply to login.

  • Page 24: Configuring The Ip Address

    4.3 Configuring the IP Address By default, GV-CS1320, connected to LAN without a DHCP server, is assigned with a static IP address of 192.168.0.10. Follow the steps below to assign a new IP address to avoid IP conflict with other GeoVision devices.
  • Page 25 Accessing GV-CS1320 4. Select Static IP address. Type the IP Address, Subnet Mask, Router/Gateway, Primary DNS and Secondary DNS. 5. Click Apply. GV-CS1320 is now accessible by entering the assigned IP address on the web browser. Important: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from the DHCP server or ISP to log in.

  • Page 26: The Web Interface

    Snapshot, Digital PTZ, Wide Angle Lens Dewarping, Wide Angle Setting, PIP and PAP. Brings up these functions: Alarm Notify, Video and Audio Show System Configuration, Remote Config, Show Camera Name and Image Menu Enhance. For details, see Chapter 3, GV-CS1320 Camera Access Controller User’s Manual.

  • Page 27: Upgrading System Firmware

    Upgrading System Firmware 6. Upgrading System Firmware GeoVision periodically releases the updated firmware on the website. To load the new firmware into the GV-CS1320, follow the instructions below. 1. In the Live View window, click the Show System Menu button and select Remote Config.

  • Page 28: Restoring To Factory Default

    7. Restoring to Factory Default You can restore GV-CS1320 to factory default settings using the Web interface or directly on the camera. 7.1 Using the Web Interface 1. In the left menu, select Management and select Tools. 2. Under the System Settings section, click the Load Default button.
