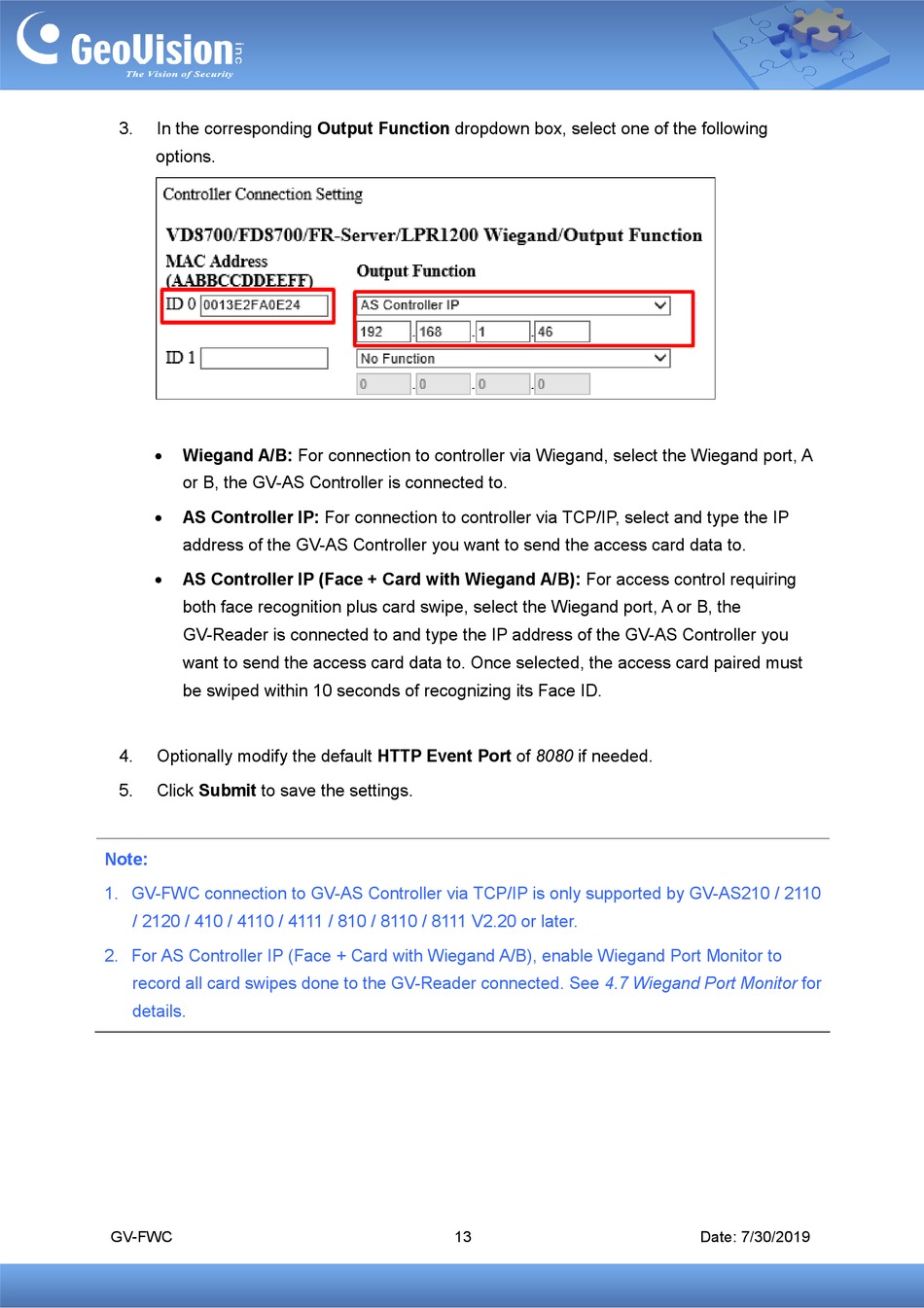

GeoVision GV-FWC Installation Manual page 13

3. In the corresponding Output Function dropdown box, select one of the following
options.

Wiegand A/B: For connection to controller via Wiegand, select the Wiegand port, A
or B, the GV-AS Controller is connected to.

AS Controller IP: For connection to controller via TCP/IP, select and type the IP
address of the GV-AS Controller you want to send the access card data to.

AS Controller IP (Face + Card with Wiegand A/B): For access control requiring
both face recognition plus card swipe, select the Wiegand port, A or B, the
GV-Reader is connected to and type the IP address of the GV-AS Controller you
want to send the access card data to. Once selected, the access card paired must
be swiped within 10 seconds of recognizing its Face ID.
4. Optionally modify the default HTTP Event Port of 8080 if needed.
5. Click Submit to save the settings.
Note:
1. GV-FWC connection to GV-AS Controller via TCP/IP is only supported by GV-AS210 / 2110
/ 2120 / 410 / 4110 / 4111 / 810 / 8110 / 8111 V2.20 or later.
2. For AS Controller IP (Face + Card with Wiegand A/B), enable Wiegand Port Monitor to
record all card swipes done to the GV-Reader connected. See 4.7 Wiegand Port Monitor for
details.
