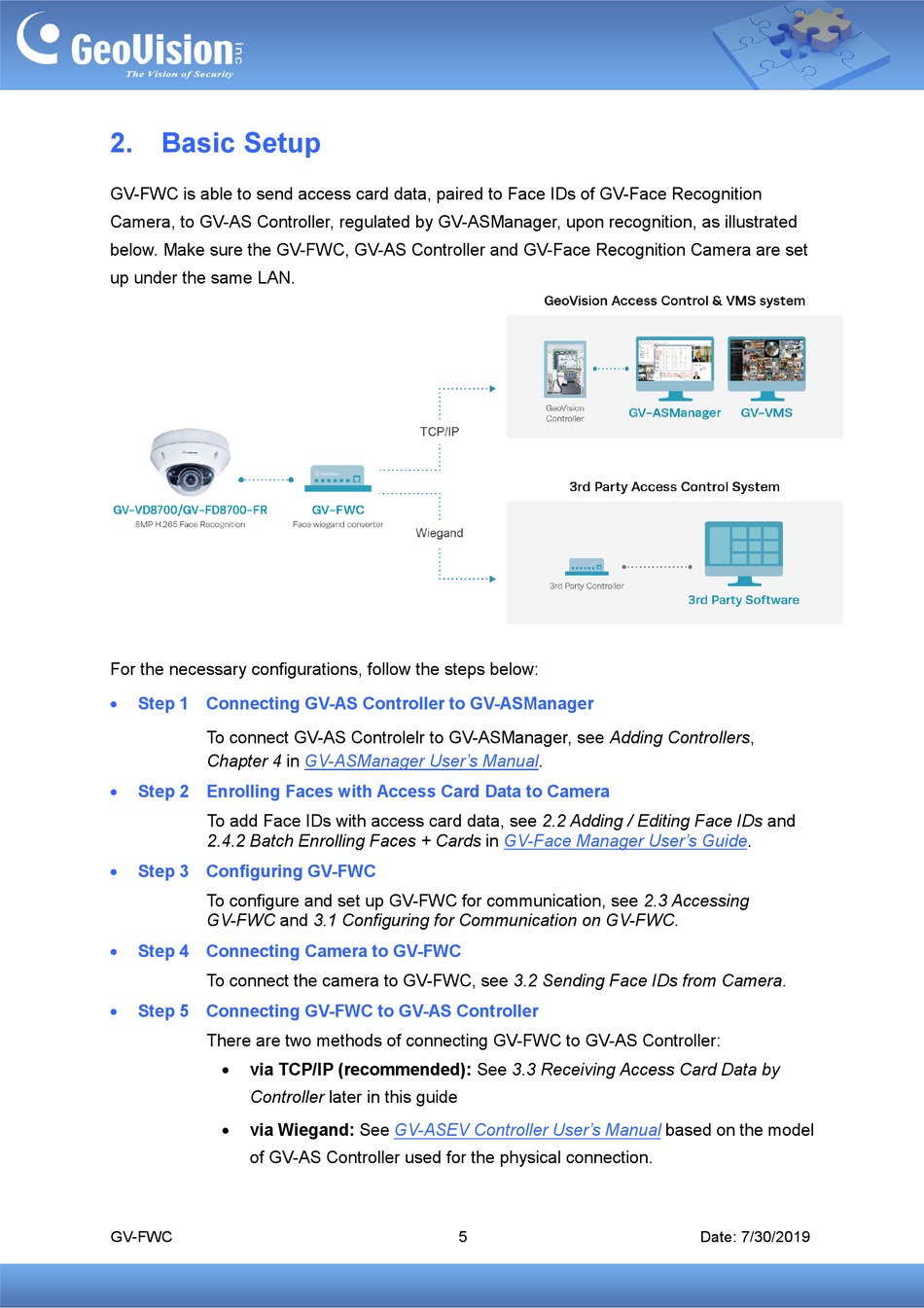

2. Basic Setup

GV-FWC is able to send access card data, paired to Face IDs of GV-Face Recognition
Camera, to GV-AS Controller, regulated by GV-ASManager, upon recognition, as illustrated
below. Make sure the GV-FWC, GV-AS Controller and GV-Face Recognition Camera are set
up under the same LAN.
For the necessary configurations, follow the steps below:

Step 1 Connecting GV-AS Controller to GV-ASManager
To connect GV-AS Controlelr to GV-ASManager, see Adding Controllers,
Chapter 4 in

Step 2 Enrolling Faces with Access Card Data to Camera
To add Face IDs with access card data, see 2.2 Adding / Editing Face IDs and
2.4.2 Batch Enrolling Faces + Cards in

Step 3 Configuring GV-FWC
To configure and set up GV-FWC for communication, see 2.3 Accessing
GV-FWC and 3.1 Configuring for Communication on GV-FWC.

Step 4 Connecting Camera to GV-FWC
To connect the camera to GV-FWC, see 3.2 Sending Face IDs from Camera.

Step 5 Connecting GV-FWC to GV-AS Controller
There are two methods of connecting GV-FWC to GV-AS Controller:

via TCP/IP (recommended): See 3.3 Receiving Access Card Data by
Controller later in this guide

via Wiegand: See
of GV-AS Controller used for the physical connection.
GV-FWC
GV-ASManager User's
GV-ASEV Controller User's Manual
5
Manual.
GV-Face Manager User's Guide.
based on the model
Date: 7/30/2019
