Connections, LEDs, Buttons, Slide Switches, Rotaries

VIDEO
HDMI Inputs

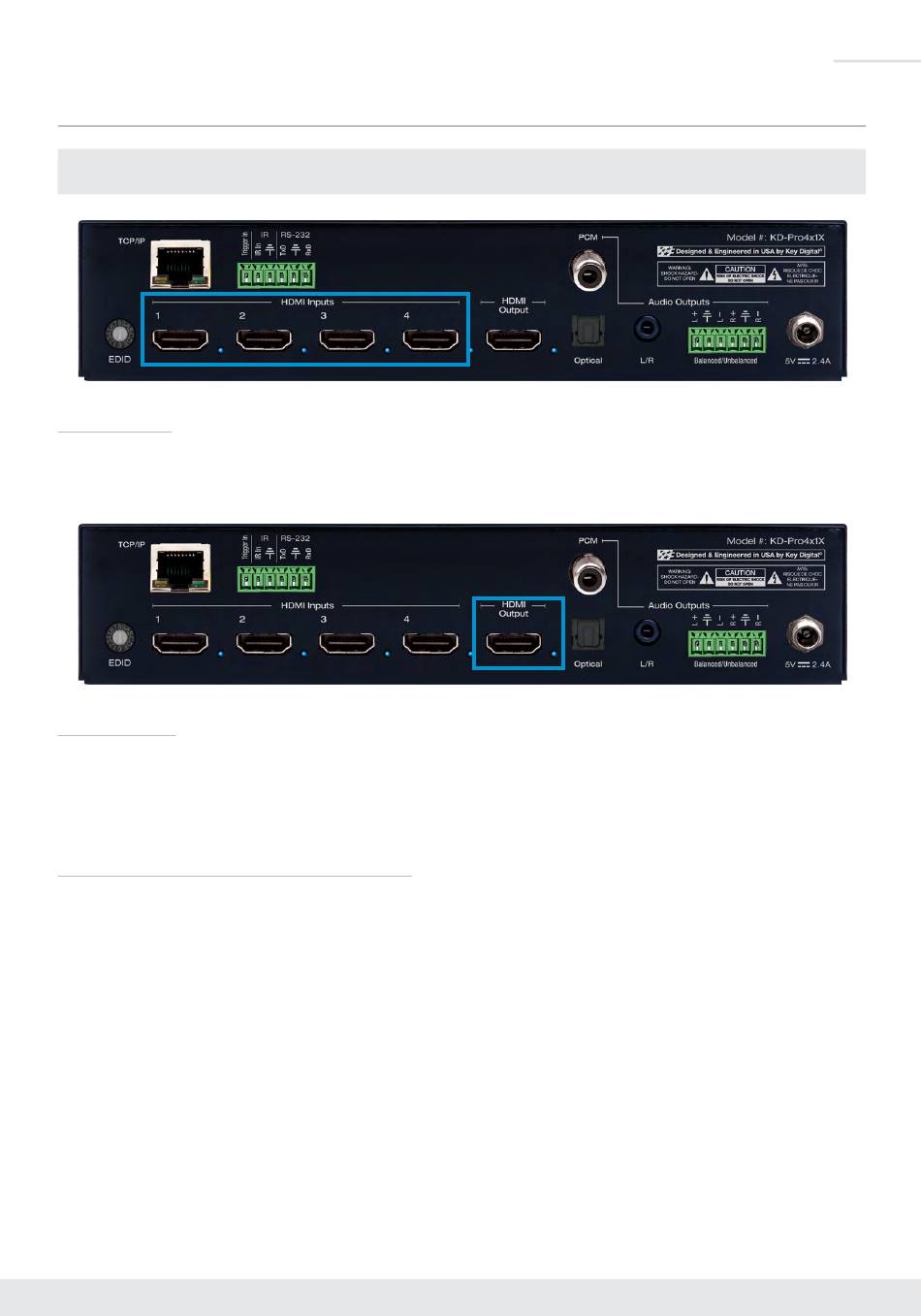

The 2/4 HDMI inputs are located on the left side of the back panel.
›
Blue LED illuminates solid to indicate an active HDMI signal is incoming.
›
HDMI Output
1 HDMI located on the center to right side of the back panel.
›
Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
›
output device
HDMI Input/Output Port Specifications
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
›
See Supported standard 4K Video Formats table
»
Supports HDR10
›
Compliant with HDCP 2.2 and previous
›
Supports lossless compressed audio formats including Dolby
›
Atmos , and DTS-HD Master Audio
®
CEC pass-through from display to selected HDMI source
›
For Display Port sources/monitors, use active converters
›
™
TrueHD, Dolby Digital Plus, Dolby
® ®
7
