FRONT PANEL
Input Select button
Used to choose which connected source is output to the connected display/device
»
Selecting a source with the Input Select button or IR remote will disable Auto Sensing Mode IF Auto
»
Sensing has not been set via the front switch.
To factory reset the unit, press and hold for approx. 10 seconds until the front LEDs blink twice
»
Output Active LED
Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
»
output device
Service USB
Micro USB port
»
Used for configuration and control from PC via KDMS Pro, KDMS, or third-party control terminal
»
Used for firmware updates (consult with Key Digital tech support before updating firmware)
»
Supports USB driver for Windows 10, 7, XP, Mac, Linux
»

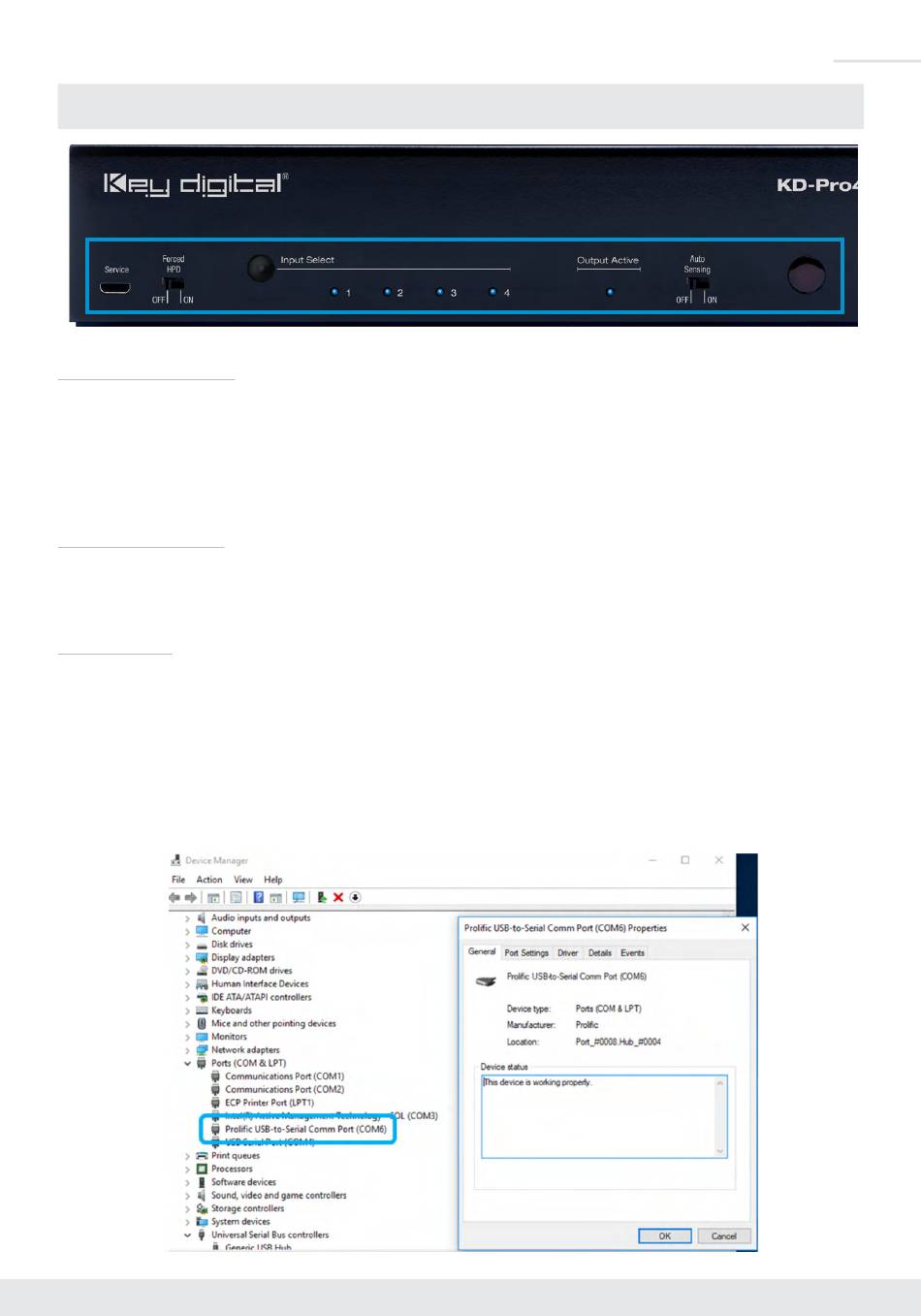

Will register as "Prolific USB-to-Serial Comm Port in Device Manager
»
Can be used as RS-232 control port. Baud rate is 57,600.
»
