Summary of Contents for Key Digital KD-XWPS

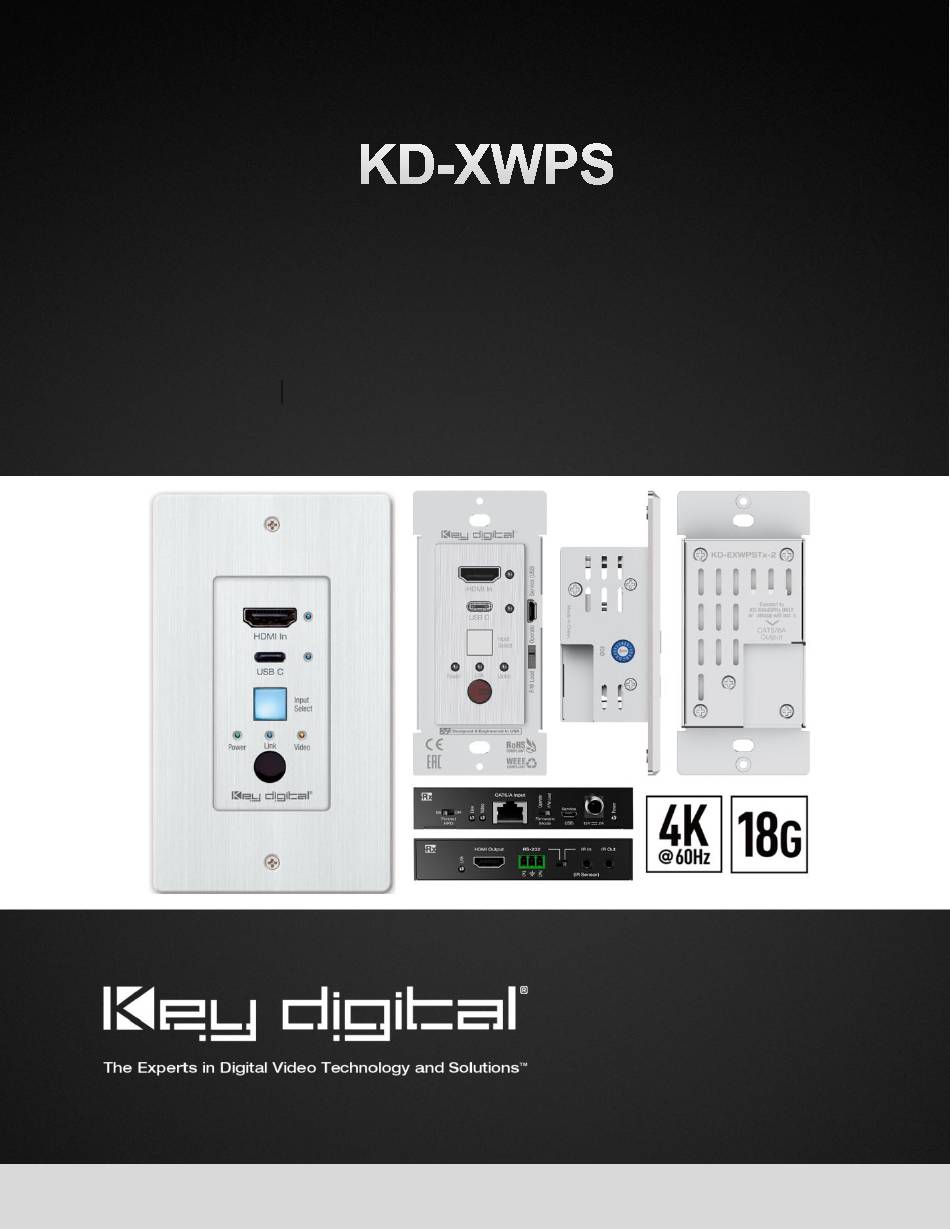

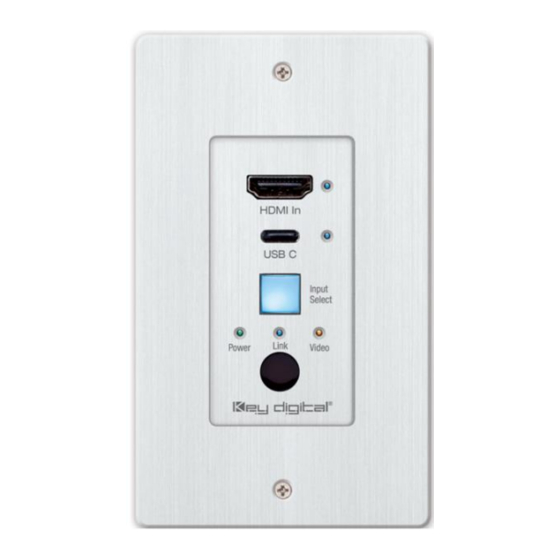

- Page 1 Rev 1.0 – Oct, 2022 Single Gang HDMI USB-C over 164ft / 50m CAT6/6A Auto Switching Wall Plate Switcher Transmitter with Receiver Kit. 4K UHD, 18G, Power over CAT. Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
-
Page 2: Table Of Contents
Rev 1.0 – Oct, 2022 Table of Contents About KD-XWPS Quick Setup Guide Application Example Connections and Adjustments LED Indicators Rack Mounting Specifications Warranty Information Product Warnings & Safety Instructions Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3... -
Page 3: About Kd-Xwps
4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A cable up to 164ft (50m). In addition to HDMI video and audio signals, KD-XWPS features an IR sensor on the faceplate to control remotely located equipment. KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles. -
Page 4: Quick Setup Guide
IR sensor of the device you wish to control. a. Connect CAT6 cable from KD-XWPS TX’s RJ45 output port to the RX units RJ45 input. Use 568-B termination. Do not connect the Tx or Rx units to third-party devices, including HDBaseT. -
Page 5: Application Example
Rev 1.0 – Oct, 2022 Application Example Presentation Switching and extension with IR control to projector / display Connections and Adjustments HDMI Input and Output: Using an HDMI cable, connect your HDMI source. • Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps •... - Page 6 IR Sensor: Collects line of sight infrared from remotes without external connecting block • Signal is output on Rx unit’s IR Out port • KD-XWPS Tx is NOT controllable via IR • Receives signals from a 90° angle at up to 30ft away. •...
- Page 7 • Micro USB port • Used for firmware updates (consult with Key Digital tech support before updating firmware) EDID Management Rotary Use the EDID rotary if you wish for your source to output a different video resolution and audio format •...
-
Page 8: Led Indicators
If set to OFF, Hot Plug Detection (HPD) voltage is passed thru from connected source to the display RS-232 and IR In ports (Rx only) The ports do not have any connection to the Tx unit and therefore have no functionality in the KD-XWPS kit. LED Indicators Power: •... -
Page 9: Rack Mounting
In addition to mounting with the supplied L-Brackets, multiple Rx units may be mounted in KD-SMS16 using the side mounting screws. KD-SMS16 is a mounting shelf for all Key Digital units with side mounting screw spacing of 2.912”, 2.582”, or 2.252”. -
Page 10: Specifications
• Packaging Weight: 1.98lbs 0.9 kg Warranty Information All Key Digital® products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm Product Warnings & Safety Instructions Important Product Warnings: 1. - Page 11 Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital® Warranty and risk damage to your unit and associated equipment. Street Mt. Vernon, NY 10553 • www.keydigital.com...
- Page 12 Rev 1.0 – Oct, 2022 Street Mt. Vernon, NY 10553 • www.keydigital.com 521 East 3...
