Summary of Contents for Key Digital KD-S2x1X-2

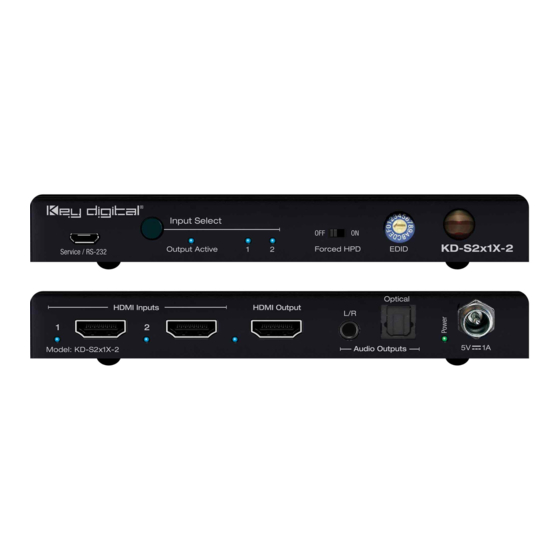

- Page 1 KD-S2x1X-2 KD-S4x1X-2 2x1 / 4x1 4K 18G HDMI Switcher with Auto-Switching, Analog & Digital Audio De-Embed Engineered for Your Success Operating Instructions ™...
-
Page 2: Table Of Contents
Introduction Key Digital® KD-S2x1X-2/KD-S4x1X-2 are 4K/18G HDMI switchers engineered to offer the best in Introduction ..............1 quality, performance, and reliability, while providing a cost-effective HDMI switching solution. -
Page 3: Quick Setup Guide
In addition to mounting with the supplied L-Brackets, multiple KD-S2x1X-2/KD-S4x1X-2 may be mounted CONNECT: in KD-SMS16 using the side mounting screws. KD-SMS16 is a mounting shelf for Key Digital units with Test for proper operation of the unit and cables in your system before permanently securing the side mounting screw spacing of 2.912”, 2.582”, or 2.252”... - Page 4 Supports multi-channel Dolby ® and DTS ™ surround formats up to 5.1 › Used for firmware updates (consult with Key Digital tech support before updating firmware) » Automatically mutes if audio formatting is not PCM, Dolby , or DTS ® ™...
- Page 5 Supports USB driver for Windows 10, 7, XP, Mac, Linux » Will register as “Prolific USB-to-Serial Comm Port in Device Manager » Can be used as RS-232 control port. Baud rate is 57,600. » Use included 3.5mm TRS to Micro USB cable: »...
-
Page 6: Ir Remote Control
› ------------------------------------------------------------------------- Auto Switching mode is only disabled via IR or RS-232. It is not disabled via manual source › KD-S2x1X-2 Status Command (STA). Returns unit status and settings in readable format: switching/selection. KD-S2x1X-2> STA ------------------------------------------------------------------------- Key Digital Systems STATUS... -
Page 7: Specifications
KD-S4x1X-2 Status Command (STA). Returns unit status and settings in readable format: Product: › KD-S4x1X-2> STA KD-S2x1X-2 - 5.8 x 3.5 x 0.8” (147 x 90 x 20mm), 0.8 lb » ------------------------------------------------------------------------- KD-S4x1X-2 - 7.7 x 3.5 x 0.8” (197 x 90 x 20mm), 0.9 lb »... -
Page 8: Contacting Key Digital
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment. - Page 9 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
