PCM Digital Audio Output
RCA audio output with de-embedded audio from the selected HDMI source
›
SPDIF IEC 60958 format
›
Compatible with sampling rates up to 192KHz
›
Supports multi-channel Dolby
›
Automatically mutes if audio formatting is not PCM, Dolby
›
For All Audio De-embed Outputs
There are no volume or tone control features
›
There are no DSP features
›
Audio Input
Signal Format
2ch PCM
Multi-Channel PCM
Dolby DTS
HD Audio
UNIT CONTROL

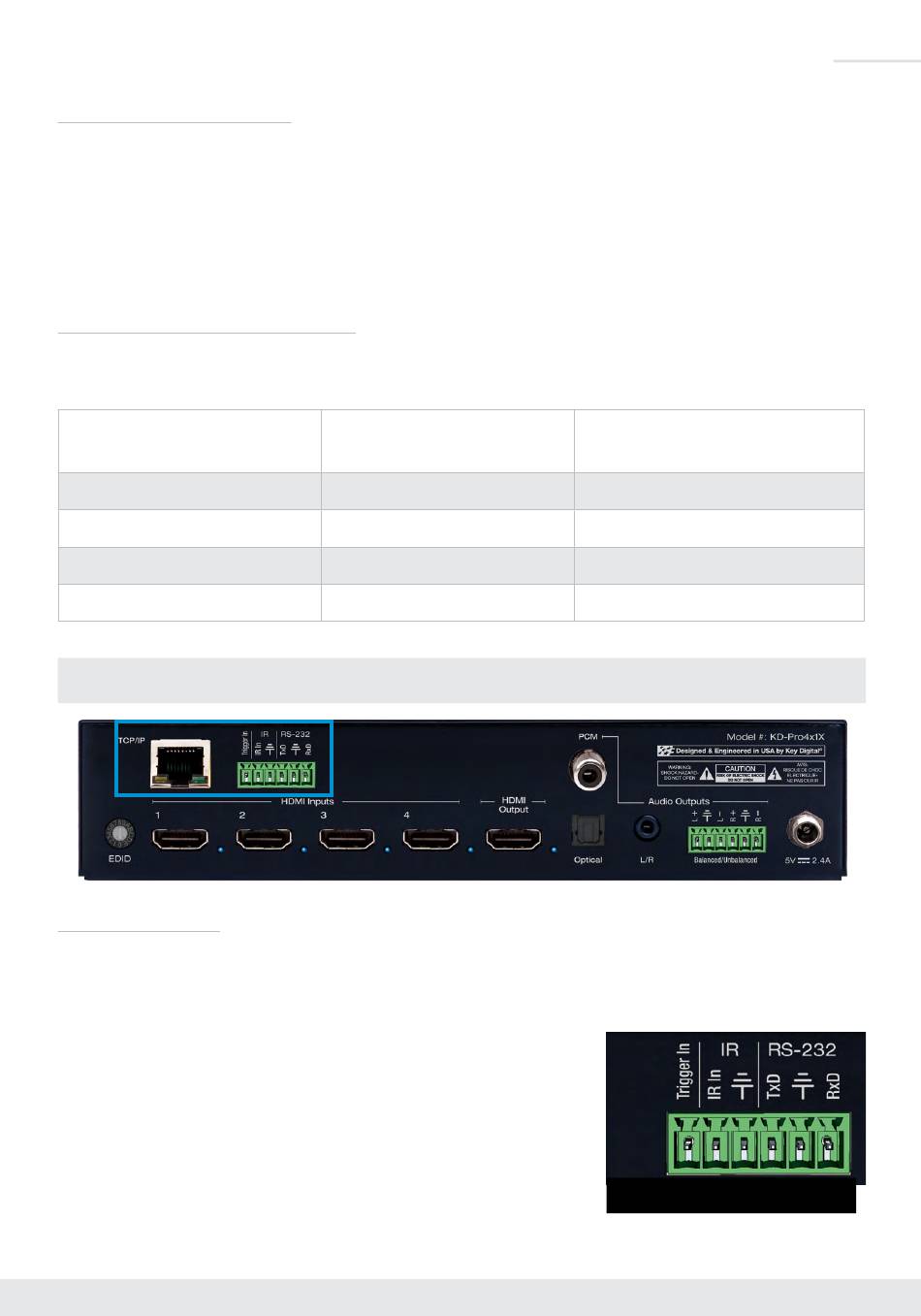

Main Control Port
6-Pin Terminal Block for Trigger In, IR and RS-232
»
TCP/IP and RS-232 commands may be found in the TCP/IP & RS-232 Commands section
»
Pin out:
»
Pin 1 = Trigger In
»
Pin 2 = IR In
»
Pin 3 = IR/Trigger Ground
»
Pin 4 = RS-232 Tx Data
»
Ping 5 = RS-232 Ground
»
Pin 6 = RS-232 Rx Data
»
surround formats up to 5.1 and DTS
®
Audio L/R
Output
Pass-Through
Front L/R Pass-Through
MUTE
MUTE
6.1
™
, or DTS
® ™
Digital Audio Output
(PCM & Optical)
Pass-Though
MUTE
Pass-Though
MUTE
Pin: 1 2 3 4 5 6
