Data Domain-Specific Installation
Data Domain ES30 Expansion Shelf and FS15 SSD Shelf Hardware Guide
116
DD6300, DD6800 and DD9300 have eight SLIC slots (0-7) and are 8-lane PCIe Gen3
with an assigned specific functionality. The non-optional SAS, NVRAM, and 10GBaseT
SLICs are allocated to fixed slots. The optional Host Interface SLICs are used for front
end networking and fibre channel connections.

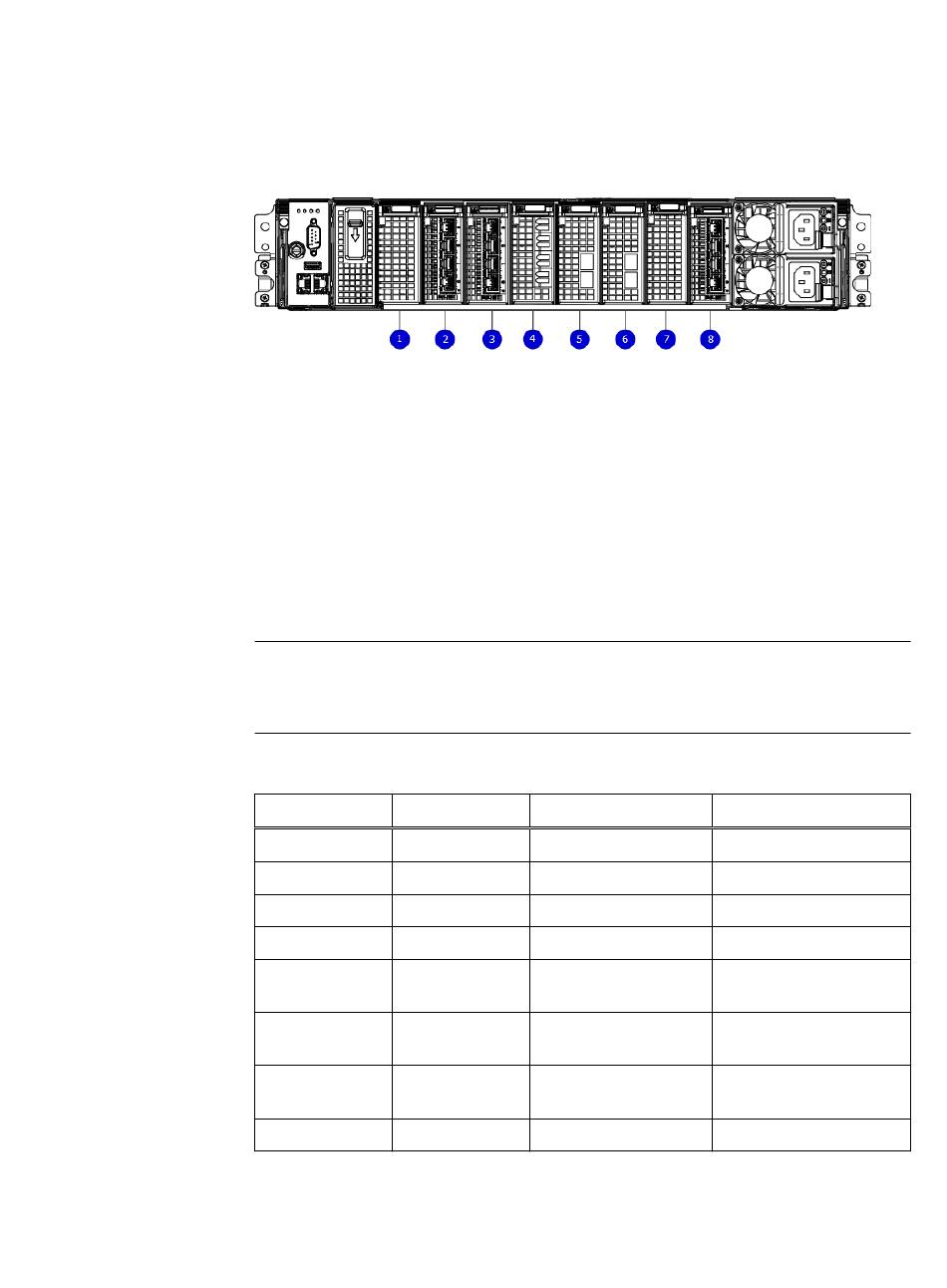

Figure 80 Rear view and SLIC slot numbering
1. Slot 0
2. Slot 1
3. Slot 2
4. Slot 3
5. Slot 4
6. Slot 5
7. Slot 6
8. Slot 7
Note
Slots 2 and 7 are used for SAS I/O modules. DD6300 systems use only slot 7 when the
SAS module is needed.
Table 26 DD6300, DD6800 and DD9300 I/O module slot assignments
Slot Number DD6300
0 NVRAM
1 10GbE
2 Reserved
3 SAS
4 FC, Ethernet or
empty
5 FC, Ethernet or
empty
6 FC, Ethernet or
empty
7 Empty
DD6800
NVRAM
10GbE
SAS
SAS
FC, Ethernet or empty
FC, Ethernet or empty
FC, Ethernet or empty
SAS
DD9300
NVRAM
10GbE
SAS
SAS
FC, Ethernet or empty
FC, Ethernet or empty
FC, Ethernet or empty
SAS
