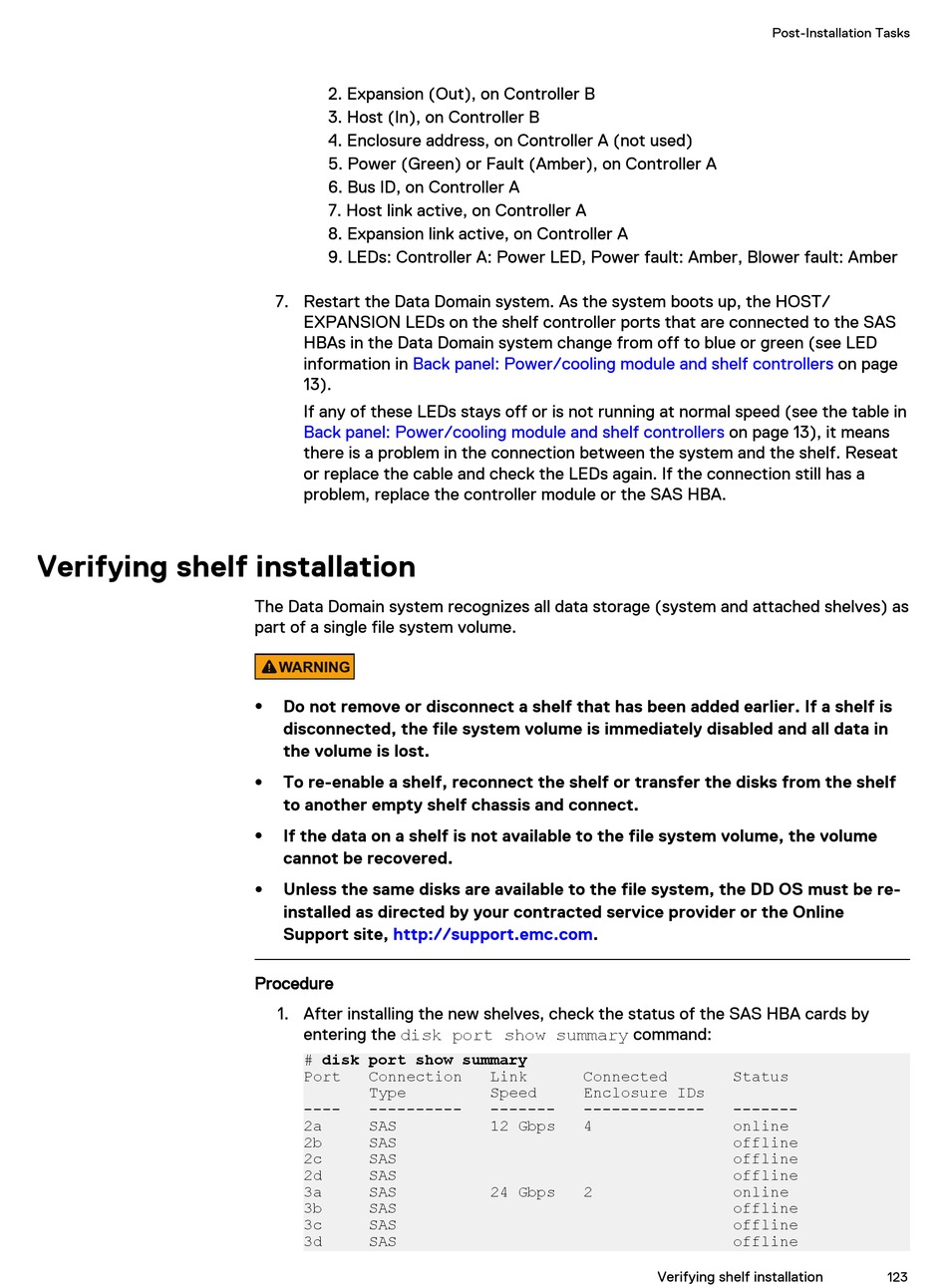

Verifying shelf installation

2. Expansion (Out), on Controller B
3. Host (In), on Controller B
4. Enclosure address, on Controller A (not used)
5. Power (Green) or Fault (Amber), on Controller A
6. Bus ID, on Controller A
7. Host link active, on Controller A
8. Expansion link active, on Controller A
9. LEDs: Controller A: Power LED, Power fault: Amber, Blower fault: Amber
7. Restart the Data Domain system. As the system boots up, the HOST/
EXPANSION LEDs on the shelf controller ports that are connected to the SAS
HBAs in the Data Domain system change from off to blue or green (see LED
information in Back panel: Power/cooling module and shelf controllers
13).
If any of these LEDs stays off or is not running at normal speed (see the table in
Back panel: Power/cooling module and shelf controllers
there is a problem in the connection between the system and the shelf. Reseat
or replace the cable and check the LEDs again. If the connection still has a
problem, replace the controller module or the SAS HBA.
The Data Domain system recognizes all data storage (system and attached shelves) as
part of a single file system volume.
WARNING
Do not remove or disconnect a shelf that has been added earlier. If a shelf is
l
disconnected, the file system volume is immediately disabled and all data in
the volume is lost.
To re-enable a shelf, reconnect the shelf or transfer the disks from the shelf
l
to another empty shelf chassis and connect.
If the data on a shelf is not available to the file system volume, the volume
l
cannot be recovered.
Unless the same disks are available to the file system, the DD OS must be re-
l
installed as directed by your contracted service provider or the Online
Support site, http://support.emc.com.
Procedure
1. After installing the new shelves, check the status of the SAS HBA cards by
entering the disk port show summary command:
# disk port show summary
Port Connection
Type
---- ----------
2a SAS
2b SAS
2c SAS
2d SAS
3a SAS
3b SAS
3c SAS
3d SAS
Link Connected
Speed Enclosure IDs
------- -------------
12 Gbps 4
24 Gbps 2
Verifying shelf installation
Post-Installation Tasks
on page
on page 13), it means
Status
-------
online
offline
offline
offline
online
offline
offline
offline
