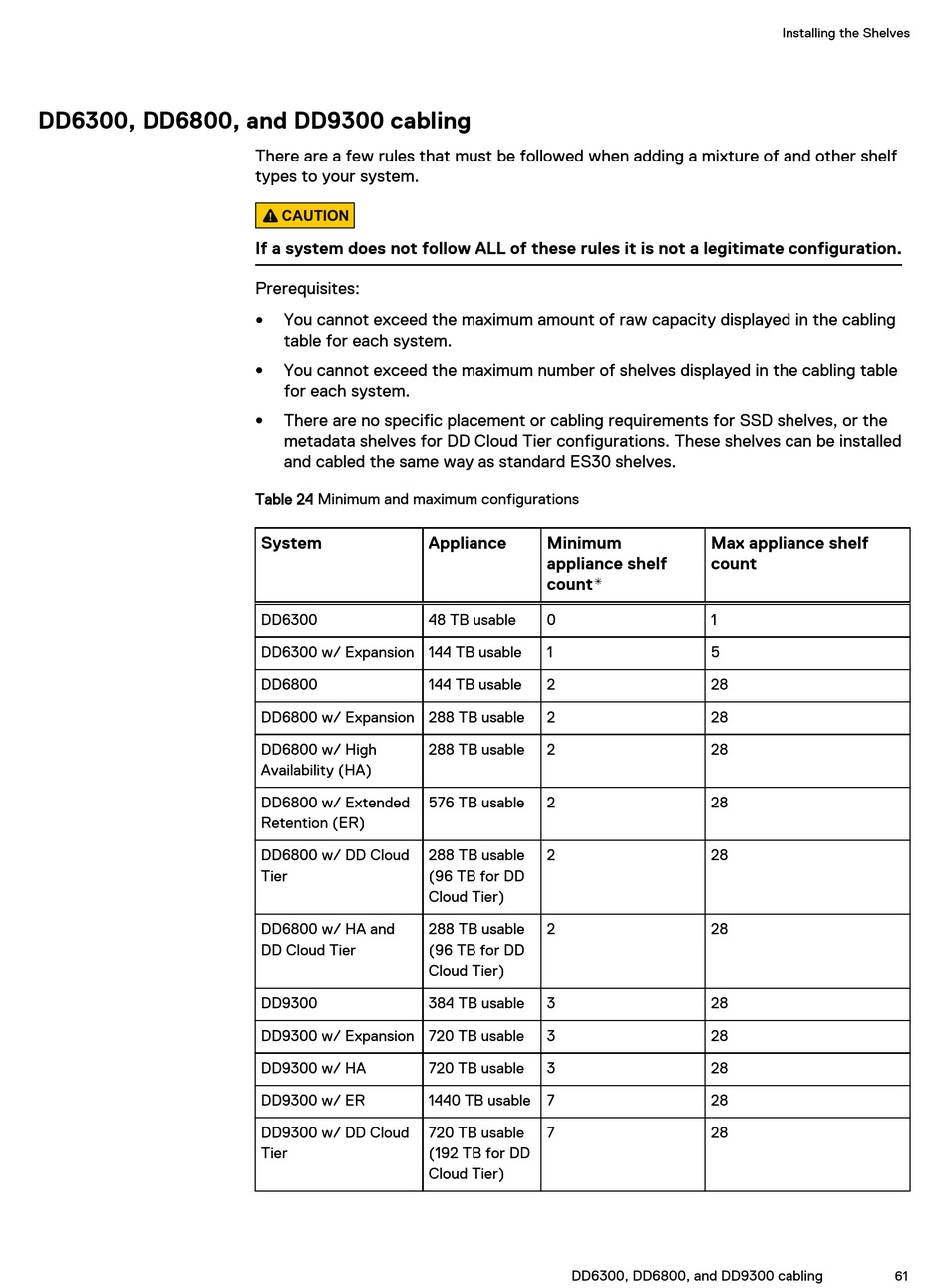

DD6300, DD6800, and DD9300 cabling

There are a few rules that must be followed when adding a mixture of and other shelf
types to your system.
CAUTION
If a system does not follow ALL of these rules it is not a legitimate configuration.
Prerequisites:
You cannot exceed the maximum amount of raw capacity displayed in the cabling
l
table for each system.
You cannot exceed the maximum number of shelves displayed in the cabling table
l
for each system.
There are no specific placement or cabling requirements for SSD shelves, or the
l
metadata shelves for DD Cloud Tier configurations. These shelves can be installed
and cabled the same way as standard ES30 shelves.
Table 24 Minimum and maximum configurations
System Appliance
DD6300 48 TB usable
DD6300 w/ Expansion 144 TB usable
DD6800 144 TB usable
DD6800 w/ Expansion 288 TB usable
DD6800 w/ High 288 TB usable
Availability (HA)
DD6800 w/ Extended 576 TB usable
Retention (ER)
DD6800 w/ DD Cloud 288 TB usable
Tier (96 TB for DD
Cloud Tier)
DD6800 w/ HA and 288 TB usable
DD Cloud Tier (96 TB for DD
Cloud Tier)
DD9300 384 TB usable
DD9300 w/ Expansion 720 TB usable
DD9300 w/ HA 720 TB usable
DD9300 w/ ER 1440 TB usable 7
DD9300 w/ DD Cloud 720 TB usable
Tier (192 TB for DD
Cloud Tier)
Minimum Max appliance shelf
appliance shelf count
count*
0 1
1 5
2 28
2 28
2 28
2 28
2 28
2 28
3 28
3 28
3 28
28
7 28
