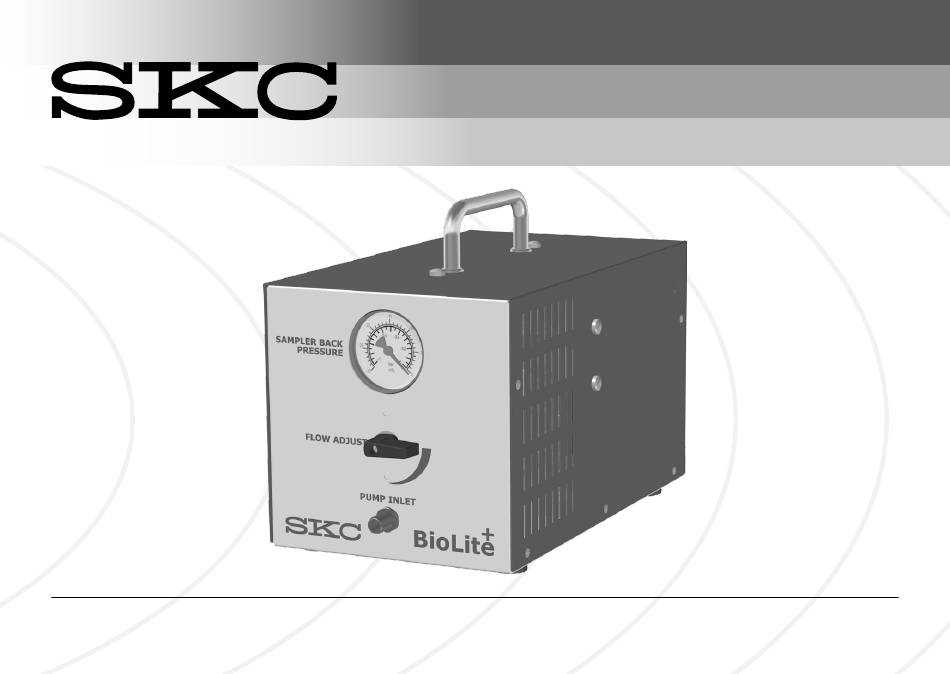

- Page 1 www.skcltd.com BioLite+ Air Sampling Pump Operating Instructions This manual covers the following models: 228-9615 & 228-9620...
- Page 2 Date of Purchase SKC recommends a minimum service interval of one year for this product. The first service is due one year from the date of purchase, and then at yearly intervals on this date. However, it is the responsibility of the user to perform a risk assessment to determine the necessary frequency of servicing that is required.
-
Page 3: Table Of Contents
Contents Specifications ..............................2 General Information ............................3 The BioLite+ Pump ............................4 Operating the BioLite+ Pump ........................5 Troubleshooting .............................6 Replacement Parts and Accessories ......................7 Warranty Information .............................8 www.skcltd.com 007-01-013 Issue B Page 1... -
Page 4: Specifications
Specifications • Maximum flow rate: 62 litre/min • Maximum back pressure: 850mbar • Dimensions: W x H x D 162 x 209 x 303mm • Weight: Model 228-9615 - 7.42kg (16.32 lb) / Model 228-9620 - 7.25kg (15.95 lb) • Enclosure rating - IP20 •... -
Page 5: General Information
Directive. Please contact your local distributor or SKC Ltd for further details on how to comply with the requirements of the WEEE Directive. -
Page 6: The Biolite+ Pump

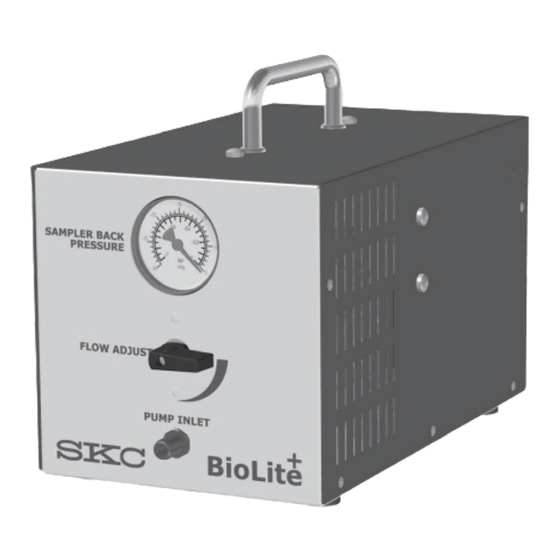

The Biolite+ Pump Carry handle Mains inlet Back pressure gauge On/off switch Flow adjuster Pump outlet Cooling air outlet grille Fuse holder Pump inlet Accessory mounting points Cooling fan inlet Page 4 007-01-013 Issue B www.skcltd.com... -
Page 7: Operating The Biolite+ Pump
4. The back pressure gauge gives a reading of the vacuum generated by the pump due to the restriction to flow of the sample train. This is important for indicating correct operation of the SKC Biosampler - the Biosampler achieves sonic flow at a suction of 15in Hg (refer to the Biosampler instructions for further details). -
Page 8: Troubleshooting
• Check for leakages in the sample train. Pump cannot acheive required • Pump vanes damaged or excessively worn. Return pump to SKC flow rate Limited for service / repair. • Check for flow blockages in the sample train and rectify if required. Wait for pump to cool before restarting. -
Page 9: Replacement Parts And Accessories
Pump rotor vanes (set of four) If the required item is not listed, contact your supplier or SKC sales on +44 (0) 1258 480188. SKC provide an extensive range of sampling media, including filters, sorbent tubes and impingers. A full selection can be found in the current SKC catalogue and at www.skcltd.com... -
Page 10: Warranty Information
(1) year. This warranty DOES NOT cover any claims due to abuse, misuse, neglect, alteration, or accident, or use in application for which the instrument was either not designed or not approved by SKC, or, due to the buyer’s failure to maintain normal maintenance, improper selection or misapplication. This warranty shall further be void if changes or adjustments to the instrument are made by a person other than an employee of the seller or, if the operating instructions furnished at the time of installation are not complied with. - Page 11 Warranty Information price, at the option of SKC. However, SKC will not elect refund unless it is unable to provide replacement and repair is not commercially practicable. 5. The terms of this warranty begin on the date the instrument is delivered to the buyer and continue for a period of one (1) year.
- Page 12 A member of the SKC global group of companies SKC Limited 11 Sunrise Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST United Kingdom T: +44 (0) 1258 480188 F: +44 (0) 1258 480184 E: info@skcltd.com W: www.skcltd.com...
