Installation

5 Installation
5.1

Installing the Software

5.1.1 Installing the Driver
For the operation of the CAN-Gateway Configurator a VCI driver is needed.
The VCI driver is constantly improved and expanded! Check if a newer version is available within the
support area on www.ixxat.com.
► Install the VCI driver (see Installation Guide VCI Driver).
5.1.2 Installing the CAN-Gateway Configurator
The CAN-Gateway Configurator is constantly improved and expanded! Check if a newer version is
available within the support area on www.ixxat.com.
Download the CAN-Gateway Configurator CANbridge NT & CAN@net NT 200/420 package
►
from www.ixxat.com.
Run CanGWconfig.exe.
►
→ Installation wizard starts automatically.
► Follow instructions in installation program.
With the CANbridge NT 200 it is possible to open existing configuration files that are not configured via
the CAN-Gateway Configurator: open menu File and select Import legacy configuration.
5.2

Installing the Hardware

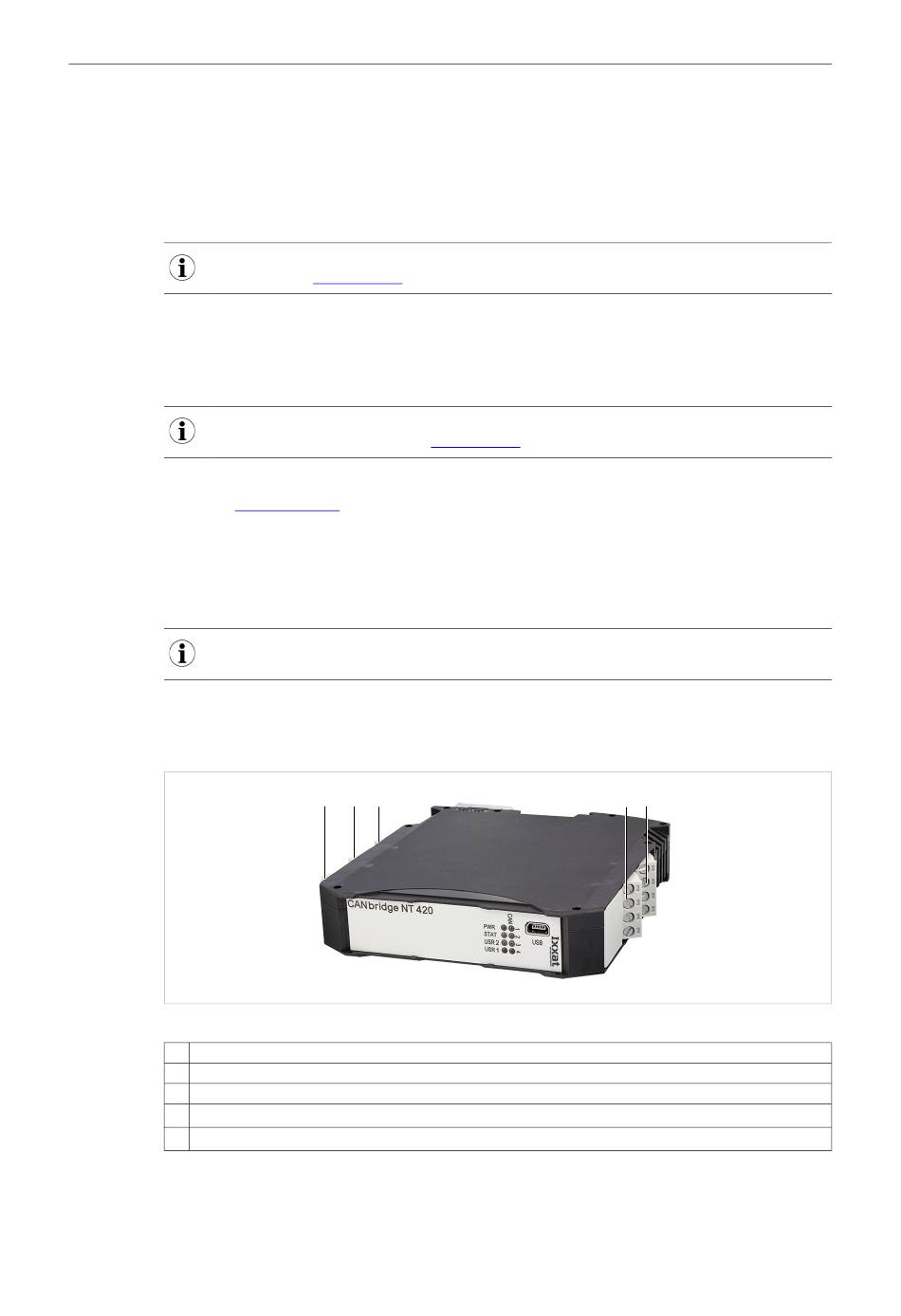

Fig. 1 Connectors
1 CAN 1
2 CAN 2
3 Power connector
4
CAN 3 (only with CANbridge NT 420)
5
CAN 4 (only with CANbridge NT 420)
CANbridge NT User Manual
2
1 3 4 5
4.01.0331.20000 1.5 en-US
7 (24)
