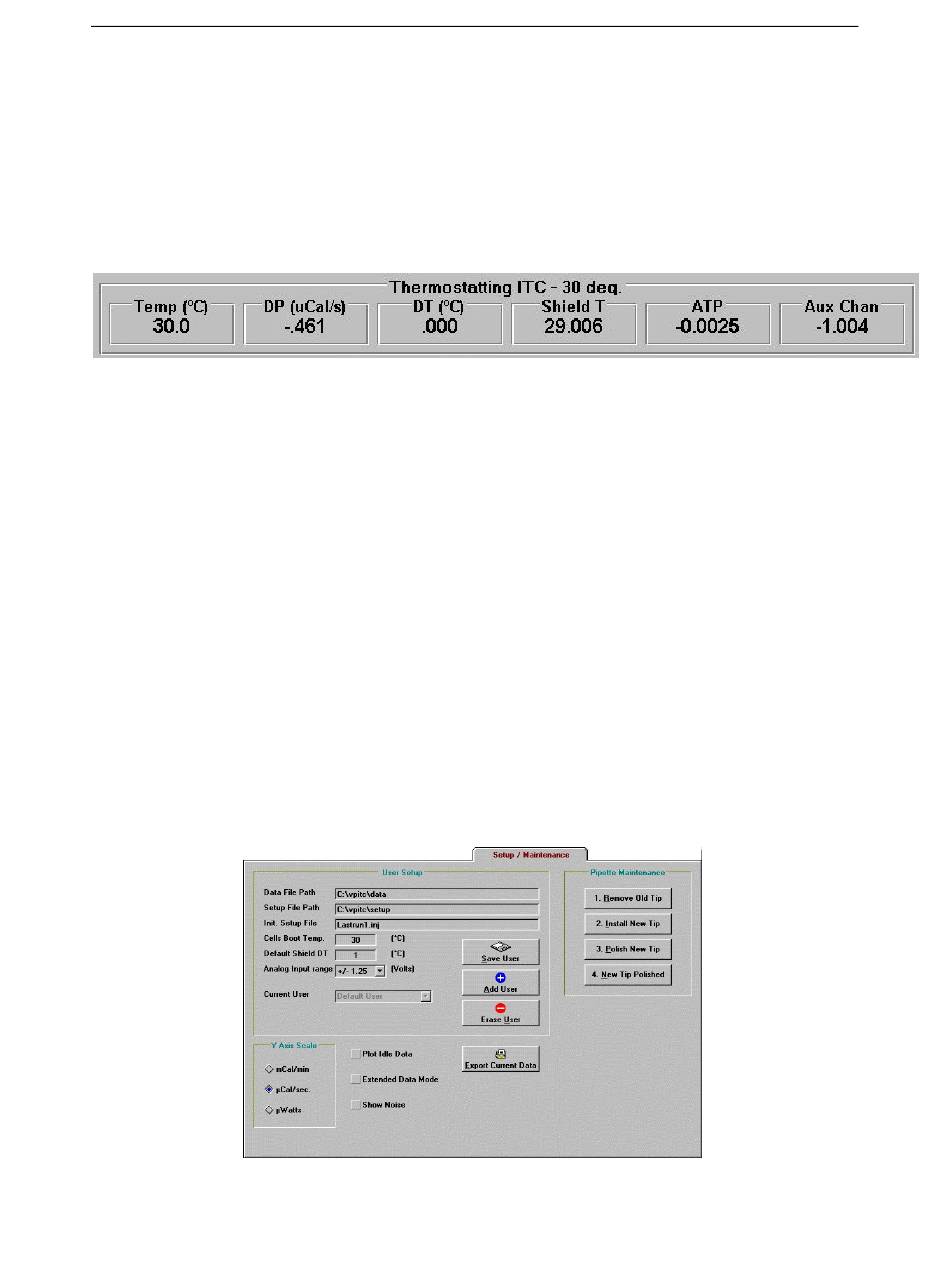

7.1 Extended Data Display

In addition to the standard data channel display VPViewer can also display additional data
channels used for troubleshooting. The extra data channels are displayed by double clicking on
the numerical DeltaT display. These extra data channels are displayed below. (Double clicking
on the Aux Chan(nel) label will toggle this display to a time display.
Shield T (Deg/C) This is the current temperature (in degrees Celsius) of the adiabatic shield.
ATP(no units) A numerical indication of heat sink operation.
Aux Channel(no units) A numerical indication of heat being applied to the jacket. If you
double click on this numeric value the display will change to a time function

7.2 Customizing VPViewer

In instances of multiple users operating the same VP-ITC system, it may be advantageous for
those users to be able customize some aspects of the VPViewer application and recall those
custom settings. Specifying the desired VPViewer configuration file at start up can do this. If no
configuration file is specified then the default configuration file will be used. The primary
advantage to having multiple user profiles is that each user's data is saved to a separate folder
(directory).
Within the Setup/Maintenance menu you will find the three buttons that will be used to initialize
a new user. These buttons are Save User, Add User and Erase User. The window and
corresponding buttons are displayed below.
