VP-ITC MicroCalorimeter User's Manual

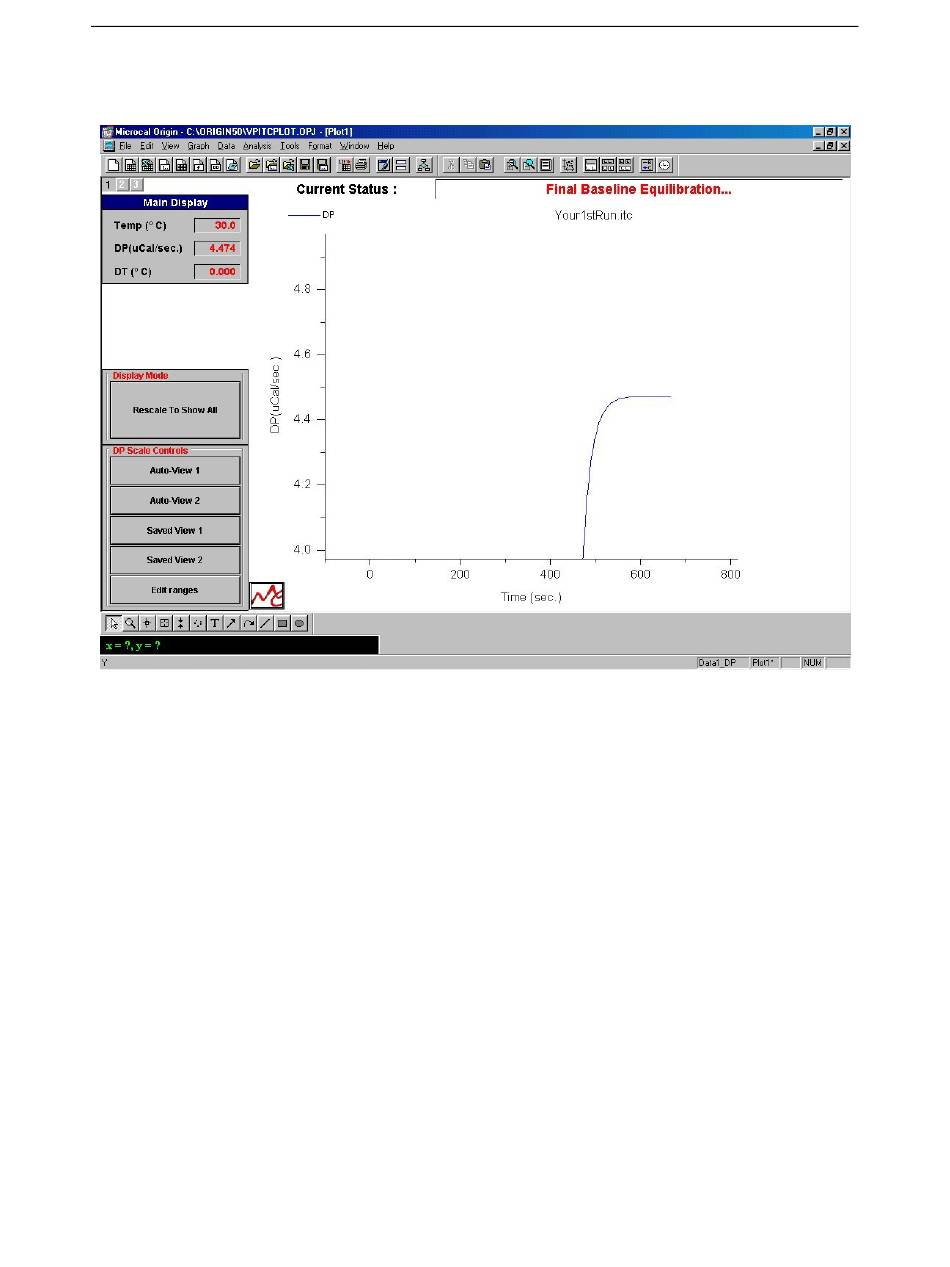

You may want a closer look at the final baseline before proceeding. Click on the Auto-View 1
button. You should see a view similar to that below.
When VPViewer determines that the Final Baseline has equilibrated properly, the display in the
DP box will turn from red to green. Since Auto was checked in the ITC Equilibration Options
group, VPViewer will automatically start the experiment. (If the automatic mode was disabled
you would now need to double-click anywhere in the DP display box, to start the experiment).
The experiment will begin, the DP display box will turn from green to black and the display title
will read Pre-Titration delay and then print the volume of solution that is left in the syringe. The
Pre-Titration Delay is required for an initial baseline for the first injection of the experiment. The
time period for this initial baseline was entered in the Initial Delay text box located in the ITC
Equilibration Options group of the ITC Controls window.
Observing the Experiment
After a few injections you may want to view the injection peaks.
Please note: While running VPViewer and switching between application you may sometimes
see gaps in your data or no data being plotted, select Window:Refresh to see all the plotted data.
