MicroCal VP-ITC User Manual page 69

•

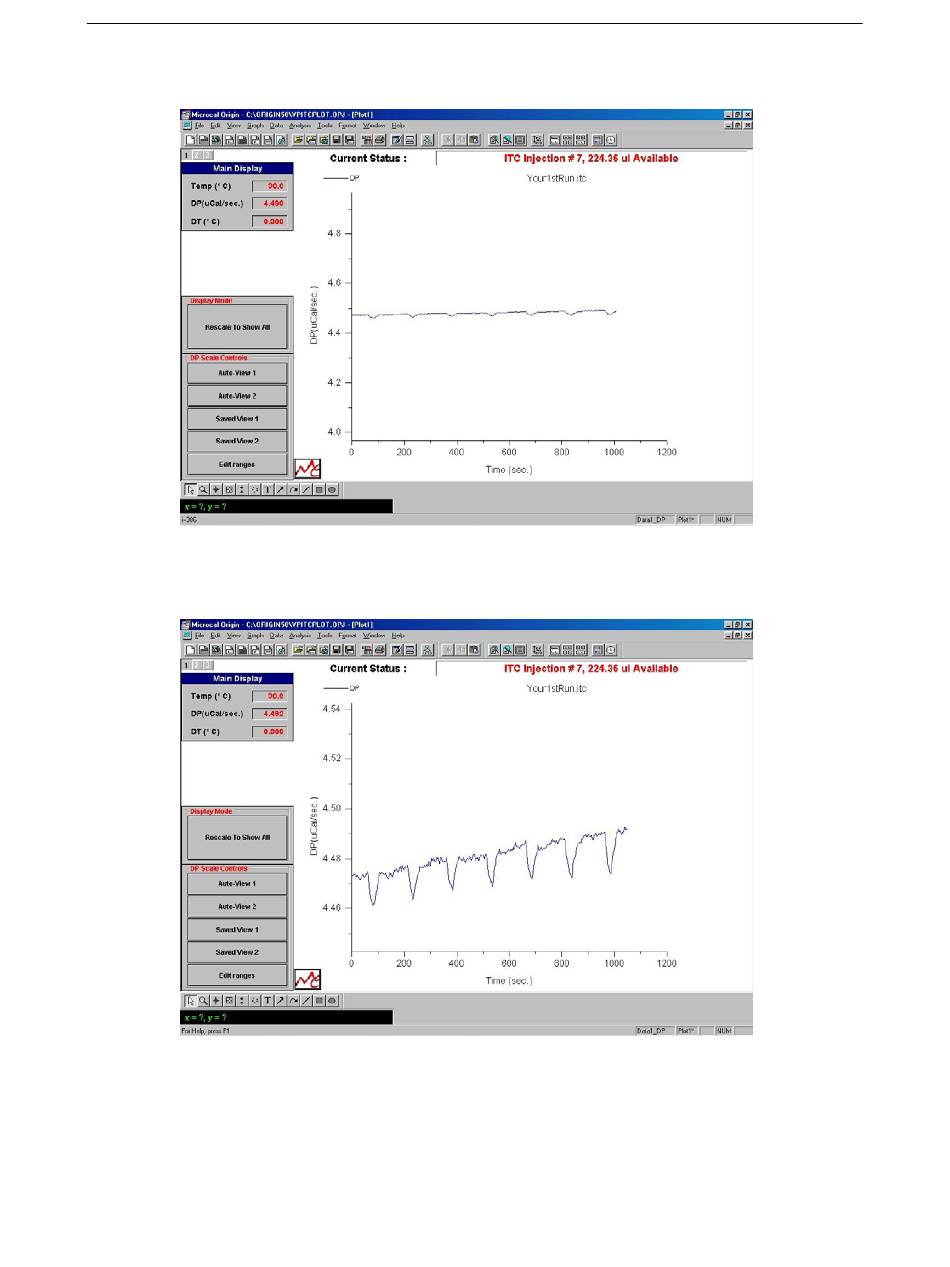

Select Auto View 2 and you should see a plot similar to the one below.
You may also want to get an even closer look at the baseline.
•
Click on Auto View 1 button.
Using a y axis display range of 0.1 µCal/sec. And an x axis display range of 20 minutes (1200
sec.), your baseline should look similar to that shown above. The slope and shape of the peaks
may be different, but the peaks should look similar to each other.
•
Allow all 30 injections to be completed, if they are similar to each other you may wish to
proceed to the next tutorial.
Section 4: Experimental Tutorials
59
