- Page 1 NetSure™ DC/DC Converter Module User Manual (UM1C400483500e / 11XA9076RJ), Revision G Specification Number: 1C400483500e Model Number: C400/48-3500e...
- Page 2 NetXtend™ are trademarks of Vertiv Energy Systems, Inc. All other trademarks are the property of their respective owners. © 2017 Vertiv Energy Systems, Inc. All rights reserved. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
-
Page 3: Table Of Contents
Troubleshooting ..............................18 Converter Current Sharing Imbalanced ....................18 Converter Fault Symptoms and Troubleshooting ..............18 Replacement Procedures ........................... 20 Converter Module Replacement ........................ 20 Converter Fan Replacement ..........................21 Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 4: Admonishments Used In This Document
SAFETY! Informs the reader of general safety information, reminders, precautions, or policies not related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA) Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 5: Important Safety Instructions
NEVER allow a metal object, such as a tool, to contact more than one termination or battery terminal at a time, or to simultaneously contact a termination or battery terminal and a grounded object. Even a momentary short circuit can cause sparking, explosion, and injury. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 6: Personal Protective Equipment (Ppe)
ALERT! Installation or removal of equipment containing static sensitive components requires careful handling. Before handling any equipment containing static sensitive components, read and follow the instructions contained on the Static Warning Page. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 7: Static Warning
If necessary to repair equipment containing static sensitive components, wear an appropriately grounded wrist strap, work on a conductive surface, use a grounded soldering iron, and use grounded test equipment. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... - Page 8 This page is intentionally blank. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
-
Page 9: Introduction
• Input Voltage Protection: The converter will shut down at low or high voltage input. Refer to the following: Low Voltage Disable Point: 255Vdc±5Vdc; hysteretic at least 15Vdc for restart. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 10: Environmental Ratings
0.6m distance from a horizontal line from the middle of converter does not exceed 50 dBA with a temperature of 25°C. • Over Voltage Category: II. • Power Distribution System: TN/TT/IT. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 11: Compliance Information
Overvoltage Protection: When output voltage goes above a preset value (59.5±0.5V, not to exceed 60V for more than 50ms), the converter shuts down. Software settable HVSD level (from controller) 56V-59V. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... - Page 12 • Walk-in Function: The rise time of the converter output voltage is > 8s at 90% of the rated load, and the maximum time is 124s at 100% of the rated load. The feature is selectable (on/off) and configurable in seconds through the controller. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
- Page 13 (+158°F) will result in output power being decreased. Full power capability is restored when the temperature decreases to below approximately +45°C (+113°F). Refer to Figure 1 to review the relationship between the output power and the ambient temperature. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
-
Page 14: Mechanical Specifications
• Dimensions (H x W x D): 5.20” (132mm) x 3.36” (85.3mm) x 11.3” (287mm). • Local Controls: None. • Local Status and Alarm Indicators: Power (Green) Protection (Yellow) Alarm (Red) Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 15: Operation
The converter may also be restarted from the controller. Refer to the controller’s documentation. Figure 2: Local Indicator Locations Protection Indicator (Yellow) Power Indicator Alarm Indicator (Green) (Red) Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 16: Installing Converter Modules
WARNING! To prevent damage to the latching mechanism, ensure the handle is in the open position when installing or removing a converter module. NEVER hold the handle in the closed position when installing a converter into a shelf. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... - Page 17 Certain functions (i.e. converter current limit, converter addressing) may require adjustment when adding or replacing a converter module. Refer to the power system documentation for instructions. Figure 3: Installing Converter Latch Handle Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
-
Page 18: Troubleshooting And Repair
• Power Indicator (Green) OFF • Protection Indicator (Yellow) ON • Protection Indicator (Yellow) Flashing • Alarm Indicator (Red) ON • Alarm Indicator (Red) Flashing Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... - Page 19 (Red) On converter. and internal output fuse open. Converter addresses Replace the converter. contradictory. Alarm Fan not operating Indicator (converter shuts Replace the fan. (Red) Flashing down). Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G...
-
Page 20: Replacement Procedures
Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... -
Page 21: Converter Fan Replacement

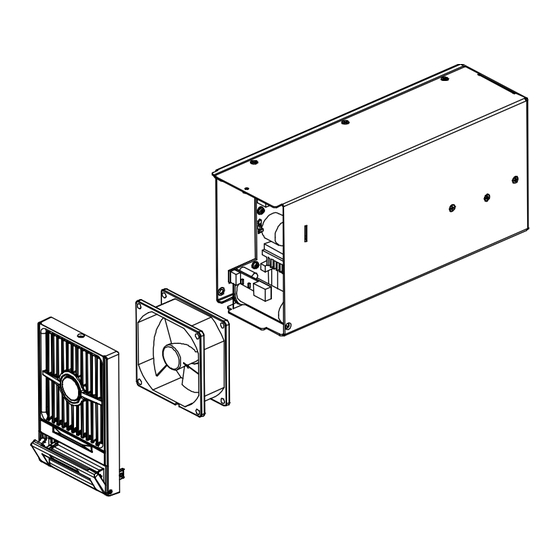

Enable the external alarms, or notify appropriate personnel that this procedure is finished. Ensure that there are no local or remote alarms active on the system. Figure 4: Fan Replacement Vertiv | NetSure DC/DC Converter Module User Manual (1C400483500e / 11XA9076RJ) | Rev. G... - Page 22 VertivCo.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA UM1C400483500e / 11XA9076RJ (RG 08/17)
