Page 2: Table Of Contents
Content 1. The installation and components of equipment ..........1 2. Installation and adjustment ................4 3. Maintenance and sterilization ................4 4. Precaution ......................7 5. After service ..................... 9 6. Environmental protection ................. 9 7. Manufacturer’s right ..................9 8. -
Page 3: The Installation And Components Of Equipment

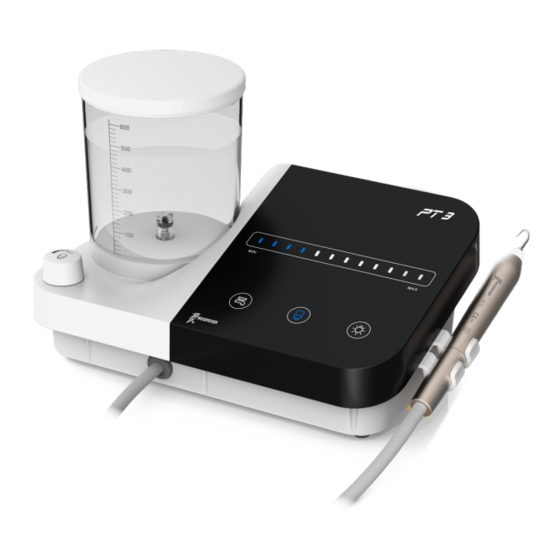

1.2.1 The components of machine are listed in the packing list. 1.2.2 Product performance and structural composition Periodontal treatment device PT 3 is composed of electro circuit, water way, handpiece, periodontal treatment device tip and foot pedal. 1.2.3 Scope of application Periodontal treatment device PT 3 is used for the dental calculus elimination. - Page 4 l) Applied part of the equipment: handpiece and tip m) Degree of protection against harmful ingress of water: Ordinary equip- ment, the foot switch is drip-proof equipment (IPX1) n) Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air, Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
-
Page 5: Sketch Map For Connection Of Detachable Handpiece. Are Showed In Picture
1.4.3 Sketch map for connection of detachable handpiece. are showed in picture 3. picture 3 1.4.4 Instruction of using wrench Picture 4... -
Page 6: Installation And Adjustment
2. Installation and adjustment 2.1 Operation 2.1.1 Open the packing box, make sure that all the parts and accessories are complete according to the packing list, take the main unit out of the box, and put it on the the stable plane facing to the operator. 2.1.2 Turn the water control knob to the max according to the picture direction, Do not screw it over tight in case of damage. - Page 7 3.1.1 Autoclaved under high temperature, pressure, time: °C , 2.0bar~2.3bar (0.20MPa~0.23MPa), 4min. 3.2 The tip and wrench can be cleaned by ultrasonic cleaner. 3.3 Troubles shotting Fault Possible Solutions The plug is in loose or Connect the power plug well. The scaling tip doesn’t vibrate wrong contact.
- Page 8 Fault Possible Solutions The water control knob is Turn the knob to a high grade a low grade. [note 1] The amount of spouting water The water pressure is not Enhance the water pressure. is too little. enough. The water pipe is jammed. Clean the water pipe by multi-function syringe [note 2].
-
Page 9: Precaution
d) Screw off the scaling tip or pull out the handpiece. e) Step on the foot switch. f) Turn on the switch of the multi-function syringe, press the air or water into the water pipe to clean and eliminate the impurity. [Note 3 ] If the scaling tip has been screwed on tightly and there is fine spray too, the following phenomena show that the scaling tip is damaged: a) The vibrating intensity and the pulverization degree become weak obviou-... - Page 10 I. The maintenance, repair and modification are made by the manufacturer or the authorized dealer. II. The changed components are original of "WOODPECKER" and operated correctly according to instruction manual. 4.1.15 The screw thread of the scaling tips produced by other manufacturers maybe coarse, rusty and collapsed, which will damage the screw thread of the han- dpiece irretrievably.
-
Page 11: After Service
°C °C 4.5.1 Environment temperature: +5 to +40 4.5.2 Relative humidity: 30% ～ 75% 4.5.3 Atmosphere pressure: 70kPa to 106kPa °C 4.5.4 A temperature of the water at the inlet ： not higher than +25 5. After service We offer one year free repair to the equipment according to the warranty card. The repair of the equipment should be carried out by professional technician. -
Page 12: European Authorised Representative
CE marked product Earth (ground) Mode of outside-water Can be autoclaved system Switch of automatic water Mode of LED supply Adjustment for the water flow, in Mode of auto-water system Humidity limitation for Temperature limitation for storage storage Atmospheric pressure for storage Authorised Representative in the EUROPEAN COMMUNITY 9. -
Page 15: Statement
All rights of modifying the product are reserved to the manufacturer without further notice. The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOO-... - Page 16 ZMN/WI-09-205 V1.7-20180913...
