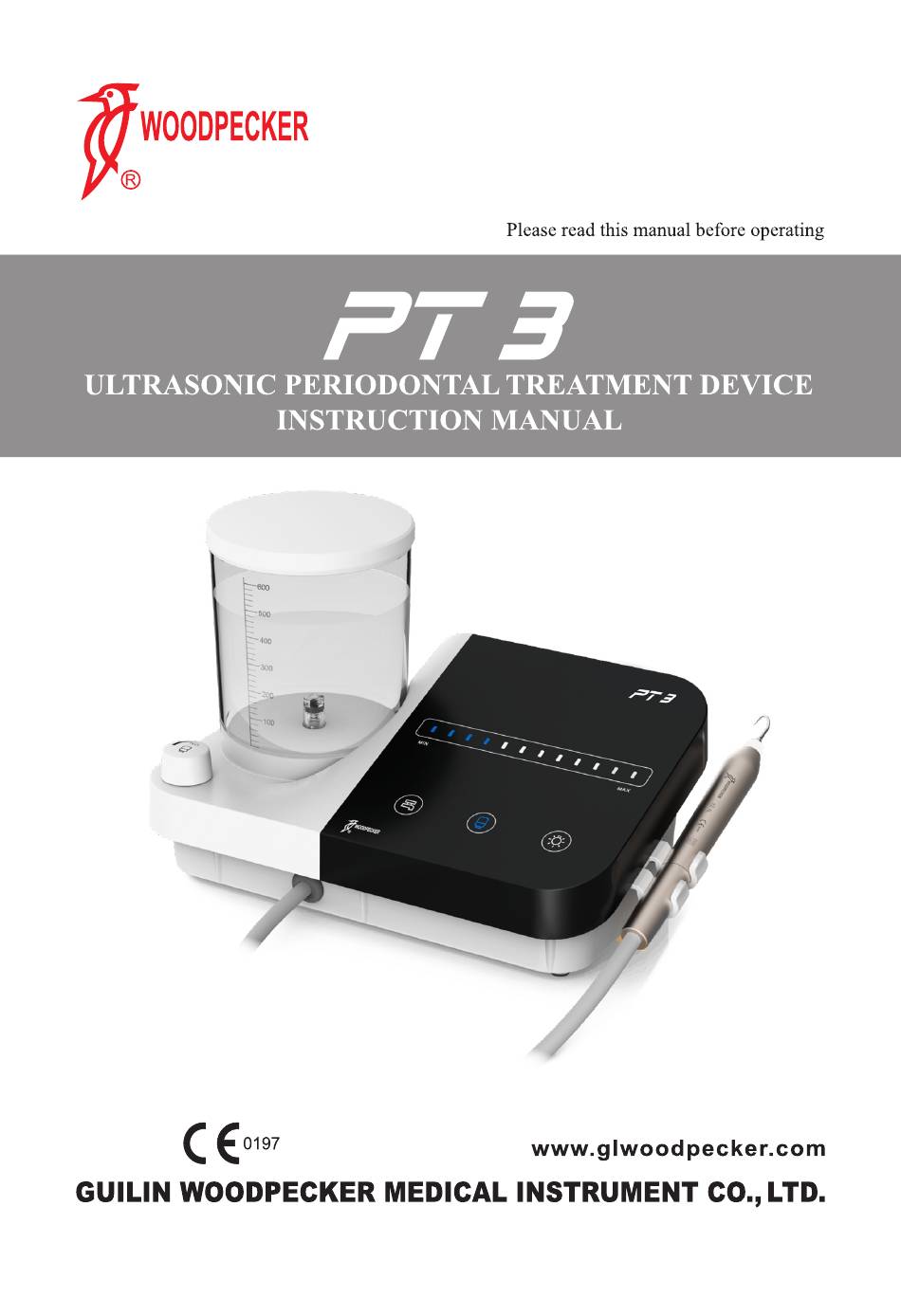

Summary of Contents for Woodpecker PT 3
-
Page 2: Table Of Contents
Content 1. The installation and components of equipment ..........1 2. Installation and adjustment ................4 3. Maintenance ..................... 5 4. Cleaning, Disinfection and Sterilization ............7 5. Precaution ...................... 1 2 6. After service ....................1 4 7. Environmental protection ................1 4 8. -
Page 3: The Installation And Components Of Equipment
1.2.1 The components of machine are listed in the packing list. 1.2.2 Product performance and structural composition Periodontal treatment device PT 3 is composed of electro circuit, water way, handpiece, periodontal treatment device tip and foot pedal. 1.2.3 Scope of application Periodontal treatment device PT 3 is used for the dental calculus elimination. - Page 4 l) Applied part of the equipment: handpiece and tip m) Degree of protection against harmful ingress of water: Ordinary equip- ment, the foot switch is drip-proof equipment (IPX1) n) Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air, Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
- Page 5 1.4.3 Sketch map for connection of detachable handpiece. are showed in picture 3. picture 3 1.4.4 Instruction of using wrench Picture 4...
-
Page 6: Installation And Adjustment
2. Installation and adjustment 2.1 Operation 2.1.1 Open the packing box, make sure that all the parts and accessories are complete according to the packing list, take the main unit out of the box, and put it on the the stable plane facing to the operator. 2.1.2 Turn the water control knob to the max according to the picture direction, Do not screw it over tight in case of damage. -
Page 7: Maintenance
3. Maintenance 3.1 Troubleshooting Fault Possible Solutions The plug is in loose or Connect the power plug well. The scaling tip doesn’t vibrate wrong contact. and no water flowing out The foot switch is in loose Connect the switch well. when stepping on the foot contact. - Page 8 Fault Possible Solutions The water control knob is Turn the knob to a high grade a low grade. [note 1] The amount of spouting water The water pressure is not Enhance the water pressure. is too little. enough. The water pipe is jammed. Clean the water pipe by multi-function syringe [note 2].
-
Page 9: Cleaning, Disinfection And Sterilization
d) Screw off the scaling tip or pull out the handpiece. e) Step on the foot switch. f) Turn on the switch of the multi-function syringe, press the air or water into the water pipe to clean and eliminate the impurity. [Note 3 ] If the scaling tip has been screwed on tightly and there is fine spray too, the following phenomena show that the scaling tip is damaged: a) The vibrating intensity and the pulverization degree become weak obviou-... - Page 10 Tools: 5# torque wrench, tray, soft brush, clean and dry soft cloth. 1. Remove the tip from product with 5# torque wrench provided by Guilin Woodpecker Medical Instrument Co., Ltd, and then put the tip and wrench into a clean tray.
- Page 11 The cleaning can be divided into automated cleaning and manual cleaning. Au- tomated cleaning is preferred if conditions permit. 4.3.1 Automated cleaning •The cleaner is proved to be valid by CE certificationin accordance with EN ISO 15883. ▪There should be a flushing connector connected to the inner cavity of the pro- duct.
- Page 12 the equipment manufacturer to familiarize yourself with the disinfection process and precautions. b) With this equipment, cleaning, disinfection and drying will be carried out together. c) Cleaning: (c1) The cleaning procedure should be suitable for the product to be treated. The flushing period should be sufficient (5-10 minutes). Pre-wash for 3 minutes, wash for another 5 minutes, and rinse it for twice with each rinse lasting for 1 minute.
- Page 13 In this chapter, we only check the appearance of the product. After inspec- tion, if there is no problem, the handpiece should be immediately reassembled, installing the sealing ring, LED, light guide, and cone head in sequence to the handpiece, and then tighten the cone head clockwise. 4.6.1 Check the product.
-
Page 14: Precaution
d) Please use the recommended sterilization procedures for sterilization. It is not recommended to sterilize with other sterilization procedures such as ethylene oxide, formaldehyde and low temperature plasma sterilization. The manufacturer assumes no responsibility for the procedures that have not been recommended. If you use the sterilization procedures that have not been recommended, please adhere to related effective standards and verify the suitability and effectiveness. - Page 15 I. The maintenance, repair and modification are made by the manufacturer or the authorized dealer. II. The changed components are original of "WOODPECKER" and operated correctly according to instruction manual. 5.1.15 The screw thread of the scaling tips produced by other manufacturers maybe coarse, rusty and collapsed, which will damage the screw thread of the handpiece irretrievably.
-
Page 16: After Service
poisonous, caustic, or explosive. 5.3.3 This equipment should be stored in a room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa to106kPa, and the temperature is -20 ℃ ~ +55 ℃ . 5.3.4 Please turn off the power switch and pull out the power plug when the equipment is not used. -
Page 17: European Authorised Representative
Date of manufacture Manufacturer Class II equipment Type BF applied part serial number Used indoor only Adjustment for the water Appliance compliance WEEE flow directive Water entrance pressure Keep dry 0.01MPa - 0.5MPa Handle with care Recovery CE marked product Earth (ground) Mode of outside-water Can be autoclaved... -
Page 18: Emc-Declaration Of Conformity
11. EMC-Declaration of conformity... -
Page 20: Statement
All rights of modifying the product are reserved to the manufacturer without further notice. The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOO-... - Page 21 ZMN-SM-082 V2.0-20201124...
