Page 2: Table Of Contents
Contents 1. The installation and components of equipment ..........1 2. Product function and operation .................4 3. Sterilization and maintenance ................5 4. Precaution ......................8 5. After service ....................10 6. Symbol instruction ..................10 7. Environmental protection ................11 8. Manufacturer’s right ..................11 9. European authorized representative ..............11 10. -
Page 3: The Installation And Components Of Equipment

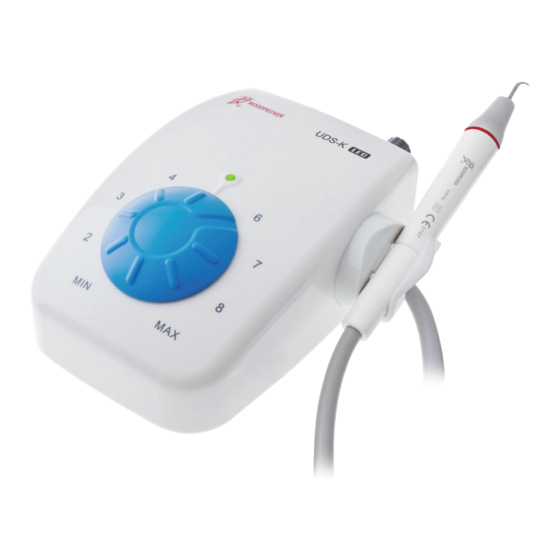

Ultrasonic scaler is composed of electrocircuit, water way and ultrasonic transducer. 1.2.3 Scope of application Ultrasonic scaler UDS-K LED is used for the dental calculus elimination . 1.3 The main technical specifications 1.3.1 Power supply input: 220 - 240V~ 50Hz/60Hz 150mA 1.3.2 Main unit input: 24V~ 50Hz/60Hz l.3A... - Page 4 Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide 1.3.17 Working condition: a) Environment temperature: +5°C to +40°C b) Relative humidity: 30% ~75% c) Atmosphere pressure: 70kPa to 106kPa d) A temperature of the water at the inlet: not higher than +25°C...
- Page 5 Instruction for main components of detachable handpiece: Nipple: the nipple can be removed. You can screw out the nipple and clean the pole with alcohol termly. Decorative ring: can be disassembled and cleaned with alcohol regularly, can be autoclaved under the high temperature and pressure. Handpiece: the main part of ultrasonic scaler, can be autoclaved under the high temperature and pressure.
-
Page 6: Product Function And Operation
③ Uninstall: Hold the handpiece , turn torque wrench toward counter- clockwise direction; ④ Sterilize after each operation; ⑤ The torque wrench must be cooled naturally after sterilization to avoid scalding when using next time ; ⑥ Keep in a cool ,dry and ventilative place and keep it clean . d) Notice Forbidden sterilization way as following: ①... -
Page 7: Sterilization And Maintenance
shining for 10 seconds. 2.2.5 Vibrating intensity: Adjust the vibrating intensity as you need, generally turn the knob to the middle grade. Because different patients has different sensitivity and the rigidity of the gingival tartar is not alike too, the vibrating intensity should be adjusted during the clinical treatment. - Page 8 All the scaling tips can be autoclaved to 134°C. 3.3 The sterilization of the torque wrench The wrench can be sterilized under high temperature and pressure. 3.4 The cleaning of the torque wrench and scaling tip Both of them can be cleaned with an ultrasonic cleaner. 3.5 Sterilization and cleaning of LED lamp and Light pipe Clean the LED lamp and Light pipe with purified water and sterilize them under high temperature and high pressure after every operation.
- Page 9 Fault Possible causes Solutions The water control switch is Turn on the water control The scaling tip vibrates turned off. switch [note 1]. but there is no water There is impurity in the Contact our dealers or us. flowing out when solenoid valve.
-
Page 10: Precaution
Fault Possible causes Solutions The vibration is too strong and the vibrating The vibrating intensity Contact our dealers or us. intensity control knob control knob is damaged. is malfunction. There is water seeping from the coupling The waterproof “O” ring was Change a new “O”... - Page 11 4.1.15 The power supply is considered as a part of ME equipment.This device can only be equipped with the special power supply of Guilin Woodpecker Medical Instrument Co., Ltd. 4.1.16 The power supply is NOT waterproof. Please keep it dry and away from the water.
-
Page 12: After Service
far from the vibration, and is installed or keep it in a cool , dry and ventilated place. 4.3.2 Don't put the machine together with the articles that is combustible poisonous,caustic, or explosive. 4.3.3 This equipment should be stored in a room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa to106kPa, and the temperature is -20°C ~ +55°C. -
Page 13: Environmental Protection
Appliance compliance WEEE directive Atmospheric pressure for storage Temperature limitation Humidity limitation for for storage storage A u t h o r i s e d R e p r e s e n t a t i v e i n t h e E U R O P E A N COMMUNITY 7. -
Page 16: Statement
The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. -
Page 17: Table Of Operating Power Of The Tips
TABLE OF OPERATING POWER OF THE TIPS Scaling Endodontics Tip Model Power Tip Model Power G 10 G 11 E10D Periodontics Tip Model Power E11D P2LD Cavity Preparation P2RD Tip Model Power... - Page 18 ZMN/WI-09-046 V2.6-20190910...
