Summary of Contents for Woodpecker AP-B

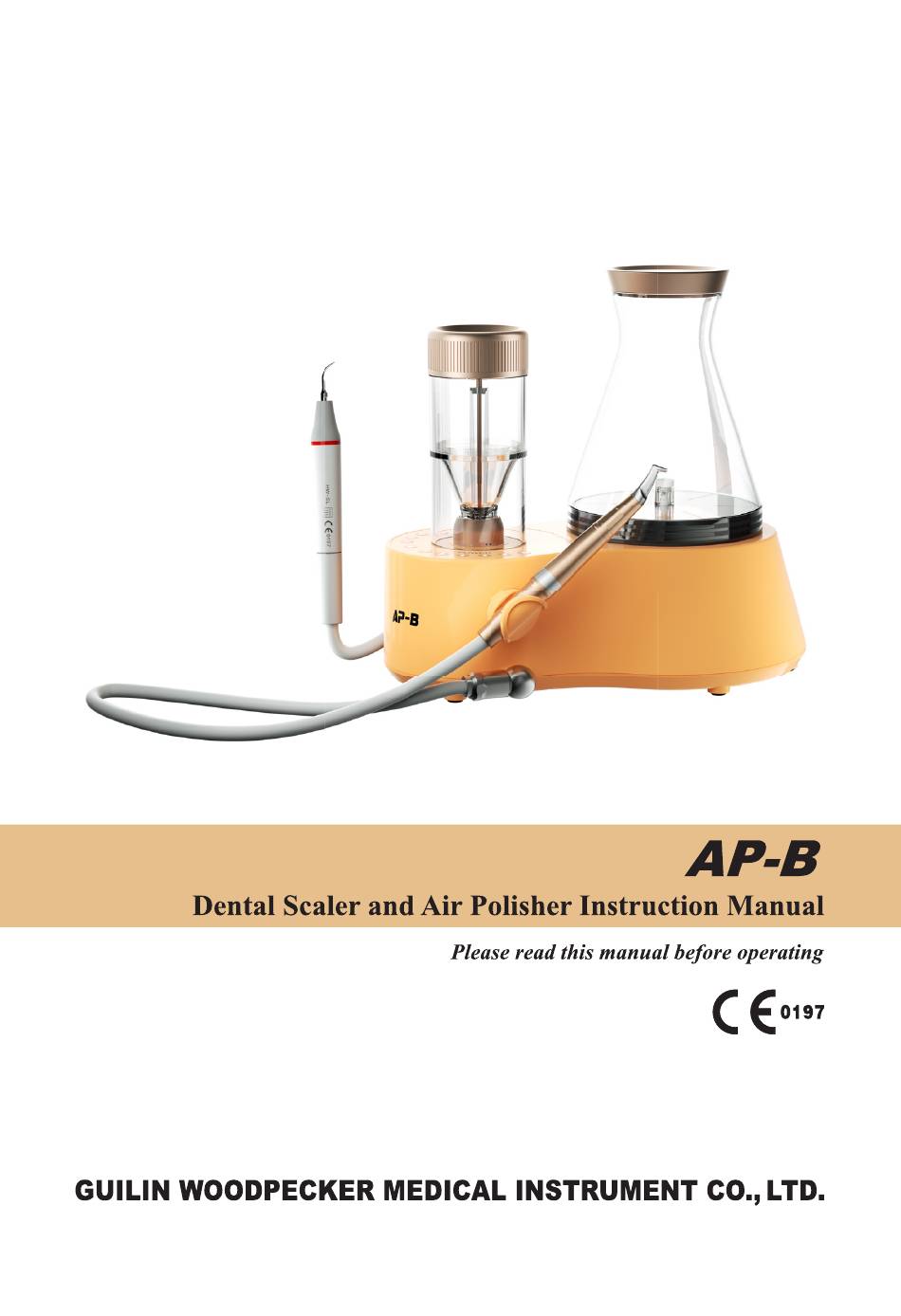

- Page 1 ZMN-SM-491 V1.4-20230221...
- Page 2 Contents Preface ...................... 1 1 Introduction ................... 1 2 Installation and Operation ..............2 3 Troubleshooting ..................9 4 Cleaning, Disinfection and Sterilization ..........1 3 5 Maintenance, storage and transportation ..........1 8 6 Environment protection ..............1 9 7 After service ..................
- Page 3 Ultrasurgery, root canal motor, Curing light, dental implant unit, endo motor, etc. 1 Introduction AP-B dental scaler and air polisher has both ultrasonic system and airpolishing system. The device features include: 1) Automatically switch the working mode according to the selected handpiece.
- Page 4 1.5.5 Patients with respiratory diseases such as asthma and chronic bronchitis are not allowed to use this device. 1.6 Equipment security classification 1.6.1 Classification by operation mode: Continuous operating device 1.6.2 Type of protection against electric shock: Class Ⅰ 1.6.3 Degree of protection against electric shock: B type applied part 1.6.4 The contact duration time of applied part: Tips: Less than 30 minutes Nozzle: Less than 10 minutes...
- Page 5 Fig. 1 Front view of main unit 2.1.2 Back view of main unit Fig. 2 Back view of main unit 2.1.3 Touch panel Fig. 3 Touch panel After power on, the button will be blue. If there is no air connection or the air pressure is insufficient, the blue light flashes.
- Page 6 Figure 4 ultrasonic handpiece Fig. 5 Airpolishing handpiece 2.1.5 Installation diagram of tip Figure 5 Installation diagram of tip 2.2 Main unit installation 1) Open the package, check whether all the accessories of this equipment are complete according to the packing list, and put the main unit on the stable...
- Page 7 desktop to the operator. 2) Take out the foot switch and insert the connector into the corresponding foot switch socket on the back of the main unit. 3) Take out the external air pipe and connect the air pipe joint with the air inlet interface on the back of the main unit.
- Page 8 3-5 times, then pour the powder into the powder tank. When the powder in the powder tank is used up, please click the “Purging Mode” button twice to remove the compressed air in the powder tank, and then add powder into powder tank. It is unallowed to add powder when in use. [Tip 1] Do not exceed the maximum (MAX) mark.
- Page 9 2.3.5.2 Before the treatment, please spray in the external container for 1-3 seconds in advance to ensure that the gas and water are evenly sprayed. 2.3.5.3 Before air polishing, please wear goggles and veil. Users should wear goggles or protective masks. 2.3.5.4 Hold the handpiece like holding a pen.
- Page 10 Fig. 7 Nozzle locking 2.4 Maintenance 2.4.1 Air polishing handpiece 2.4.1.1 Remove the air polishing handpiece, loosen the handpiece head and pull out the handpiece head (For subgingival handpiece, the nozzle needs to be removed in advance), as shown in figure 8. 2.4.1.2 Align the handpiece head with a three way syringe and blow away the residual powder in the handpiece.
- Page 11 use. It is easy to cause blocked that leaving extra powder in the powder tank for a long time because the powder will clump in a humid environment. Therefore, please pour out the powder remaining in the powder tank after use. 2.4.2.2 Before turning off the device every day, please use an air gun to blow off the powder remaining in the powder tank, and blow off the powder on the threads of the powder tank and the threads of the powder tank cover.
- Page 12 at the on-off valve may be damaged for a long time; it needs to be replaced after damage. Expected life of sand pipe at the bottom: Frequency of use Expected life 1~2 times/day 4~6 years 3~4 times/day 2~4 years 5 times or more/day 1~2 years 3.
- Page 13 4. The O-rings in the rest of the mainframe may also be damaged due to wear and tear, which need to be replaced after the damage. 3.2 Troubleshooting Failure Possible cause Solutions Poor contact of power Plug in the power plug plug.
- Page 14 After power-off, there is Impurity in the solenoid Contact local distributors still water spray. valve. or manufacturer. Check the air connection Unconnected air source and ensure that the or low air pressure (≤ pressure meets the 3bar). requirements of the device (5bar-7bar).
- Page 15 Seal ring damaged. Replace seal ring. The upper cover of Powder tank leakage the powder tank is not Re-screw the upper cover. screwed in place. Tail line seal ring Airpolishing handpiece damaged, deformed or Replace seal ring. leakage. missing. Handpiece snap ring Handpiece plug difficult.
- Page 16 Automated cleaning is preferred if conditions permit. 4.2.1 Automated cleaning The cleaner is proved to be valid by FDA, CE certification or in accordance with EN ISO 15883. There should be a flushing connector connected to the inner cavity of the product.
- Page 17 system: • The sterilizer is FDA approved, CE certified or in accordance with EN ISO 15883. • Use high temperature disinfection function. The temperature does not exceed 134 °C. The temperature cannot exceed 20 minutes. • The sterilizer has a flush connecting piece that is connected to the interior of the handpiece.
- Page 18 time provided by manufacturer. 4.3.2 Manual disinfection Tools: containers for disinfectant, water guns, air guns, trays Place the handpieces and its accessories in a disinfectant (e.g.75% medical alcohol or 2% glutaraldehyde solution) for at least the time specified by the manufacturer. Remove the handpieces and its accessories from the disinfectant and rinse it with purified water, distilled water or deionized water for at least 5 times for not less than 60 seconds of each time.
- Page 19 1) Check the handpieces and its accessories. If there is still visible stain on the handpieces and its accessories after cleaning/disinfection, the entire cleaning/ disinfection process must be repeated. 2) Check the handpieces and its accessories. If it is obviously damaged, smashed, detached, corroded or bent, it must be scrapped and not allowed to continue to be used.
- Page 20 manufacturer assumes no responsibility for the procedures that have not been recommended. If you use the sterilization procedures that have not been recommended, please adhere to related effective standards and verify the suitability and effectiveness. *Fractionation pre-vacuum procedure: a procedure for steam sterilization by repeating pre-vacuum, the procedure used here is steam sterilized by three pre- vacuums.
- Page 21 be installed or stored in a cool, dry and ventilated place. 5.2.2 Do not mix with toxic, corrosive, flammable and explosive articles during storage. 5.2.3 The product should be stored in an environment where the relative humidity is 10% ~ 93%, the atmospheric pressure is 70kPa ~ 106kPa, and the temperature is -20°C ~ + 55°C.
- Page 22 This product is a precision device. If there is problem that needs to be repaired, returned to Woodpecker or handled by professionals is recommended. If any component part needs to be replaced, please contact Woodpecker for relevant information. Please use accessories or component parts provided or approved by Woodpecker.
- Page 23 Guidance and manufacturer’s declaration - electromagnetic emissions The model AP-B is intended for use in the electromagnetic environment specified below. The customer or the user of the model AP-B should assure that it is used in such an environment. Emissions test...
- Page 24 Guidance & Declaration - Electromagnetic immunity The model AP-B is intended for use in the electromagnetic environment specified below. The customer or the user of the model AP-B should assure that it is used in such an environment. IEC 60601 test...
- Page 25 3 V, 0.15 MHz – 80 used no closer to any MHz, 6 V in ISM MHz, 6 V in ISM part of the models AP-B, bands between 0.15 bands between 0.15 including cables, than the MHz – 80 MHz, 80 MHz –...
- Page 26 a Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
- Page 27 11 Statement Woodpecker reserves the right to change the design of the device, the technique, fittings, instruction manual and the content of the original packing list at any time without further notice. The pictures are only for reference. The final interpretation rights belong to Guilin Woodpecker Medical Instrument Co., Ltd.
