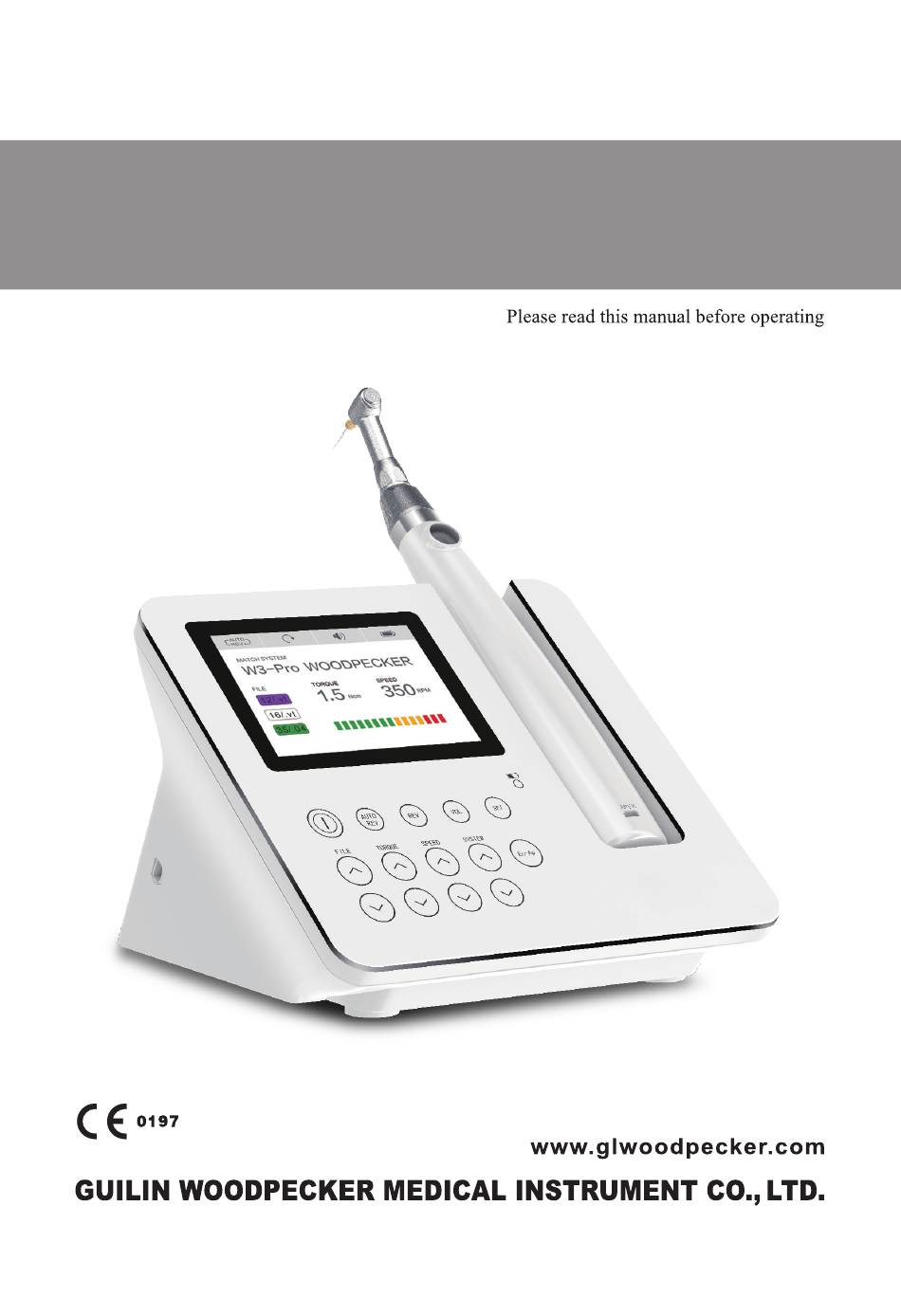

  • Page 1 Endo Radar Endo Motor INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents 1 Introduction ................... 1 2 Installation and setting ................5 3 Motor alone mode ................1 2 4 Apex locator alone mode ..............1 6 5 Combined length determination mode ..........2 0 6 Trouble shooting ................2 2 7 Cleaning, Disinfection and Sterilization ..........

  • Page 3: Introduction

    Endo motor, apex locator and ultrasurgery, automatic water supply system etc. 1.2 Introduction Endo Motor products are mainly used in dental root canal preparation, is used for each model pulpitis and pulp necrosis and various root tooth root canal treatment of periarthritis of important equipment.
  • Page 4 1.3.1 Structure Endo Radar is composed of Motor h andpiece, Contra-angle, measuring wire, USB wire , Power adapter, etc... 1.3.2 Product accessories Motor h andpiece Contra-angle Power adapter USB wire Measuring wire File clip Lip hook Touch probe Tester Lubricator Connecting &...
  • Page 5 1.5.2 The product is only suitable for hospitals, clinics, and must be used by a qualified dentist at the same time. 1.5.3 Contraindications In cases where a patient has been fitted with an implanted heart pacemaker (or other electrical equipment ) and has been cautioned against the use of small electrical appliances (such as electric shavers , hair dryers , etc ) it is recommended not to use the this device.
  • Page 6 56℃. Contra-angle 1.6.9 Only use the original WOODPECKER contra-angle. Do not use any other contra-angle or other reduction rate other than original one. 1.6.10 Never press the contra-angle push button when the motor handpiece is running or if it is coming to a stop.

  • Page 7: Installation And Setting

    2 Installation and setting 2.1 Please remove the “Switch label” before first time usage. 2.2 Through the tail restart hole can be directly cut off the base power supply circuit, when there was a crash phenomenon such as the base, can use a needle inserted with hole, when the base shutdown can be pulled out, then open the base again, then to restart the base operation.
  • Page 8 2.4.2 Removing When removing the protective silicon cover, pull it straight out slowly. 2.5 Installing and removing the Connecting & LED holder 2.5.1 Installing Install the Connecting & LED holder into the motor handpiece, clamp the contra-angle and file. 2.5.2 Removing Sliding it in the direction of the socket of motor handpiece and then removed with contra-angle.

  • Page 9: Motor Alone Mode 1

    2.7 Touch button of base(Motor alone mode) 1 POWER Power on or power off 2 AUTO REV Automatic protection mode 3 REV Forward or reverse 4 VOL Adjust the volume 5 SET Parameters calibration 6 LED If continuously with green LED, it means wireless charging 7 EN-Ap The mode switch...

  • Page 10: Apex Locator Alone Mode 1

    2.8 Touch button of base(Apex locator alone mode) 1 VOL Adjust the volume 2 3 SPEED +- Set the apical point, it can be set anywhere from 10 to apex(00) 4 En-Ap The mode switch 2.9 Touch button of base(Combined length determination mode) Combined length determination mode parameter setting: 1 SET Touch the button for more than 1 seconds, enter combined length determination mode parameter setting.
  • Page 11 5 6 SYSTEM+- Select “AP.REV/AP.STOP”, “ ”, ” 7 En-Ap Select “AP.REV” or “AP.STOP”, enable or disable “ ”, enable or disable “ ” Auto apical point reverse The file will reverse when the file tip reaches the apical point. Auto apical point stop The file will stop when the file tip reaches the apical point.
  • Page 12 2.10 LCD screen...
  • Page 13 1 SYSTEM display the selected file system 2 FILE display the selected file type 3 SPEED display the rotation speed(applied only to continuous rotation mode) 4 TORQUE display the limiting value of torque 5 TORQUE BAR display the limiting value of torque in the bar 6 AUTO REVERSE display the selected auto reversing protection mode: AUTO REVERSING...
  • Page 14 low volume on silent mode 10 APEX BAR Display apex bar 2.11 Introduction of LED and button on handpiece 2.11.1 The state of battery: (green)full state of charge or enough (yellow) 30%-60% electricity remained (red)less than 30% of electricity, the battery need to be charged immediately.
  • Page 15 LED is green , indicating that the handpiece is ready for work. 3.2.2 The handpiece is ready for work, if the LED is green, the handpiece will work as the set program. 3.2.3 Long press the ON/OFF button, and the handpiece will turn off. 3.3 Auto reversing protection mode 3.3.1 AUTO REVERSING...
  • Page 16 Push the handpiece button twice to restart the handpiece. 3.4 The display of the torque Instructions a)when it shows location 1 in the picture, The current load is 50% of the preset load b) when it shows location 2 in the picture, The current load is 80% of the preset load c) when it shows location 2 in the picture, The current load is 100% of the preset load and the motor stops.
  • Page 17 c. Touch the “SET” button for more than 1 seconds to enter setting interface. d. Touch the “SYSTEM” button to select “Contra-angle Calibration” , then touch the “En-Ap” button to enter the calibration. e. Power on the motor handpiece to start calibration. f.
  • Page 18 4 Apex locator alone mode 4.1 Insert the measuring wire 4.1.1 Insert the plug of the measuring wire into the left side socket of the unit.(as the picture) Picture 1 Attention: a. Please be careful to use the device, keep it stable and avoid hit. Incautious use will lead to the damage or the failure of the machine.
  • Page 19 4.2 Test the wire connectting (Test before each use) a. Press the power button .When the machine is starting up, you can press the En-Ap button. And you can enter into the apex measure module. b. Make sure if the plug of the measuring wire is inserted into the socket correctly.
  • Page 20 1) Approx 2mm to apical foramen 2) Approx 0.6mm to apical foramen 3) Apex(apical foramen) 4.4 Testing the device by tester. (Two weeks test again) User can use the tester to check if the device work properly, specific operation is as follows: a.
  • Page 21 Picture 5 Picture 6 Attention: a. When grip the root canal with a needle file, please grip the upper of the metal part(near the root canal at the needle handle). If you grip the lower part (bladeor moving part),it will wear the metal part of the file folder and the resin part.

  • Page 22: Combined Length Determination Mode 2

    Picture 7 Picture 8( a ) Picture 8( b ) Picture 9 4.7 Cleaning and disinfection 4.7.1 You can use the alcohol or the soap clean the machine and the measuring wire. 4.7.2 Don’t use the chemical reagent. 4.7.3 The hip hook,filp clip,touch probe and the contra-angle must be cleaned, disinfected before you start the treatment.
  • Page 23 5.1 Base installing 5.1.1 Insert the measuring wire into the left side female socket of the base. 5.1.2 Insert the lip hook into the white female socket of measuring wire. 5.1.3 Insert the USB wire’s male plug (big) into the right side USB’s female socket of the base.

  • Page 24: Trouble Shooting 2

    5.5 Hook the lip hook in the corner of the patient’s mouth. 5.6 Power on the motor handpiece to operate. 5.7 The display of root hole magnified area display in combined length determination mode: 1 Approx 2mm to apical foramen 2 Approx 0.6mm to apical foramen 3 Apex(apical foramen) 6 Trouble shooting...

  • Page 25: Cleaning, Disinfection And Sterilization 2

    Problem Cause Solution The handpiece 1. The wireless 1.Press the handpiece “ON/ cannot be connection has failed OFF” button more than 5 connected to the 2. Handpiece far from seconds to power off and base the base. power on again. 2.
  • Page 26 efficacy (VAH/DGHM-listing, CE marking, FDA and Health Canada approval) and in accordance with the DFU of the disinfecting solution manufacturer. 7.2.3 Do not place the contra-angle in a disinfectant solution or in an ultrasonic bath. Do not use chloride detergent materials. 7.2.4 Do not use bleach or chloride disinfectant materials.
  • Page 27 # Operation Operating Mode Warning 2 Automated Put the - Avoid any contact between the Cleaning accessories contra-angle and any instruments, with washer- (connecting & kits, supports or container. disinfector LED holder, - Follow instructions and observe contra-angle, concentrations given by the lip hook, file manufacturer (see also general clip, protective...
  • Page 28 # Operation Operating Mode Warning 4 Packaging Pack the - Check the validity period of the accessories pouch given by the manufacturer to (connecting & determine the shelf life. LED holder, - Use packaging which is resistant contra-angle, to a temperature up to 141°C lip hook,file (286°F) and in accordance with EN clip , protective...

  • Page 29: Storage, Maintenance And Transportation 2

    # Operation Operating Mode Warning 6 Storage Keep the - Sterility cannot be guaranteed if accessories packaging is open, damaged or wet. (contra-angle, - Check the packaging and the lip hook, file clip contra-angle before using it and touch probe) (packaging integrity, no humidity in sterilization and validity period).

  • Page 30: Environmental Protection 2

    9 Environmental protection Please dispose according to the local laws. 10 After service From the date this equipment has been sold, based on the warranty card, we will repair this equipment free of charge if there are quality problems. Please refer to the warranty card for the warranty period. 11 Symbol instruction CE marked product serial number...

  • Page 31: European Authorized Representative 2

    The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must undertake legal responsibilities. 14 EMC-Declaration of comformity The device has been tested and homologated in accordance with EN 60601-1-2 for EMC.
  • Page 32 RF emissions Class B The model Endo Radar CISPR11 is suitable for used in all establishments, including Harmonic emissions Class A domestic establishments and lEC 61000-3-2 those directly connected to Voltage fluctuations / Complies the public low-voltage power flicker emissions supply network that supplies lEC 61000-3-3 buildings used for domestic...
  • Page 33 Voltage <5 % UT <5 % UT Mains power quality dips, short (>95% dip in (>95% dip in UT.) should be that of a typical interruptions UT.) for 0.5 cycle commercial or hospital and voltage for 0.5 cycle <5 % UT environment.
  • Page 34 Conducted RF 3 Vrms Portable and mobile RF lEC 61000-4-6 150 kHz to 80 communications equipment should Conducted RF 3V/m be used no closer to any part of lEC 61000-4-6 6 Vrms the models Endo Radar, including Radiated RF cables, than the recommended lEC 61000-4-3 frequency separation distance calculated...
  • Page 35 Table 4: Recommended separation distances between portable and mobile RF communications equipment and the model Endo Radar Recommended separation distances between portable and mobile RF communications equipment and the model Endo Radar The model Endo Radar is intended for use in electromagnetic environment in which radiated RF disturbances is controlled.
  • Page 36 ZMN/WI-09-409 V1.4-20190104...
