- Page 2 CURING LIGHT LED.B USER’S MANUAL Industrial design patent No.: CN 200730092316.9...
-
Page 3: Table Of Contents
Content 1. Introduction—————————————————1 2. Principle and usage——————————————1 3. Structure and components———————————2 4. Technical specifications————————————2 5. Operation—————————————————3 6. Instruction of recharging————————————4 7. Precaution—————————————————4 8. Maintenance————————————————5 9. Contraindication———————————————5 10. Notice——————————————————5 11. Trouble shooting——————————————6 12. After service————————————————7 13. Storage and transportation———————————7 14. Packing list————————————————8 15. -
Page 4: Introduction
2. Principle and usage 2.1 LED.B adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time. 2.2 This product is used to restore teeth and solidify material for whitening teeth. -
Page 5: Structure And Components

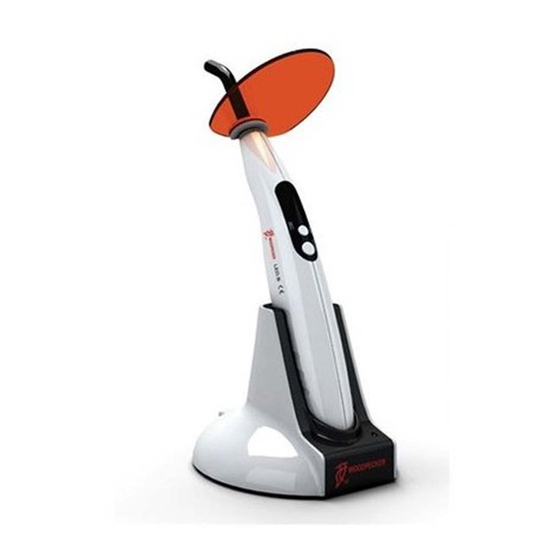

3. Structure and components LED.B (dental) is composed mainly of high power LED, optical fiber and the main unit. (Picture 1) 4. Technical specifications 4.1 Power supply: rechargeable Lithium battery Battery model: ICR18650 Battery voltage and capacity: 3.7V/2000mAh Input of adapter: l00V to 240V~ 50Hz/60Hz 4.2 Applied part: Optical fiber... -
Page 6: Operation
5. Operation 5.1Take off the red cap from the optical fiber and then insert the metal part into the front of LED.B (Make sure to screw the fiber to the end). 5.2 To install the light hood on as show in picture 1. -
Page 7: Instruction Of Recharging
6. Instruction of recharging 6.1 Recharging by UDS-M scaler: press the recharging button, insert the LED.B into the recharging hole and the light shines, which means that the recharging is on. When the light turns off, it means the recharging is over. -
Page 8: Maintenance
battery could be used, because other brand pedestal charger, adapter and Lithium battery are likely to damage the circuit. ① WARNING: If the curing light works for 40s continously, the temperature of the top of optical fiber may reach 56 ℃ .” ②... -
Page 9: Trouble Shooting
2. Change the optical fiber. Light intensity 2. The optical fiber has 3.Wipe off the resin. insufficient cracked. 4.Charge the LED.B. 3. There is resin remained on the surface of optical fiber. 4. Low battery. 1. The battery is used up. -
Page 10: After Service
1. The adapter is not The equipment connected well. 1. Reconnect. is not charging 2. Faulty of adapter or 2. Change the adapter. when the adapter incompatible. 3. Cleaned by the alcohol. is connected. 3. The charging point is impurity. If any malfunction case was found, please contact with the dealer the unit was purchased or our company. -
Page 11: Packing List
13.4 Excessive impact or shake should be avoided during transportation. 13.5 Don't mix it with dangerous articles during transportation. 1 3 . 6 K e e p i t a w a y f r o m s u n o r s n o w o r r a i n d u r i n g transportation. -
Page 12: Environmental Protection
Manufacturer Used indoor only Screw inside/outside Class Ⅱ equipment CE marked product FDA marked product Authorised Representative in the EUROPEAN COMMUNITY Got the quality management system certification and CE certification issued by TüV Rheinland 16. Environmental protection There is any harmful element in our product. It can be disposed according to the local law. -
Page 13: For Technical Data, Please Contact
The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. 19. Declaration of conformity 19.1 Product conforms to the following standards... - Page 16 The device has been tested and homologated in accordance with EN 60601-1-2 for EMC. This does not guarantee in any way that this device will not be effected by electromagnetic interference. Avoid using the device in high electromagnetic environment.
- Page 17 ZMN/WI-04-563 2.3 Edition...
