  • Page 2: Table Of Contents

    Contents Preface------------------------------------------------------------------------- 1 1. Product introduction ------------------------------------------------------ 1 2. Product installation and function description ------------------------- 3 3. Operation instruction ----------------------------------------------------- 5 4. Troubleshooting -----------------------------------------------------------11 5 Maintain maintenance-----------------------------------------------------12 6 X-ray tube characteristics ------------------------------------------------12 8 Storage, maintenance and transportation ------------------------------14 9. Environment protection --------------------------------------------------15 10.

  • Page 3: Preface

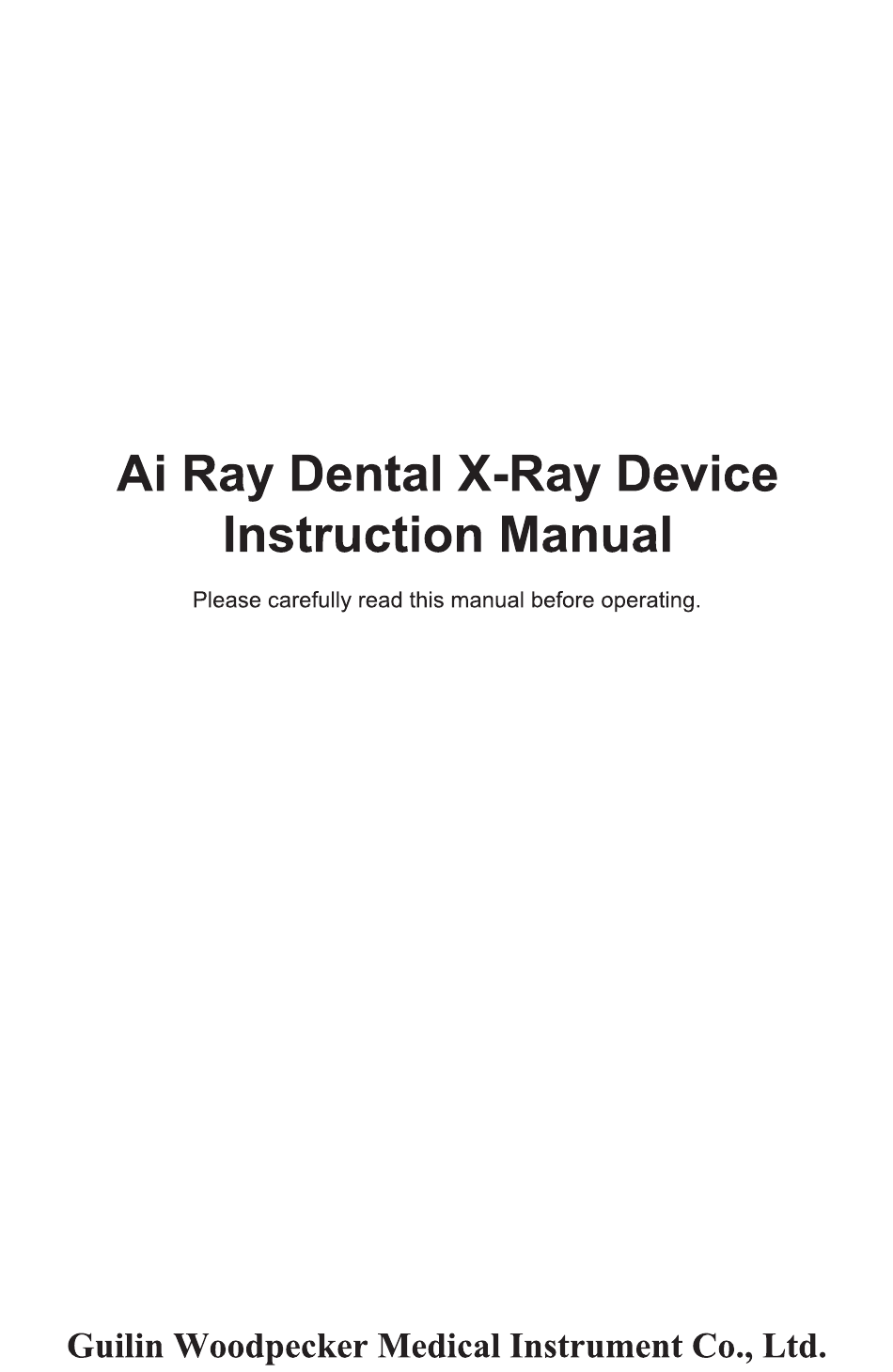

    Preface Thank you for purchasing the Dental X-ray Device produced by Guilin Woodpecker Medical Instrument Co., Ltd. Woodpecker is a high-tech enterprise researching, developing, producing and selling Dental products, and it owns a sound quality control system. Please read the full text of the instruction manual carefully to ensure that you can use the equipment correctly and safely.
  • Page 4 mixture with air, oxygen, or nitrous oxide: Equipment can’t be used in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide. 1.9 Primary technical parameters 1. Power adapter input: ～ 100-240V 50/60Hz 1.5A 2. Internal power supply: DC 10.8V 3.

  • Page 5: Product Installation And Function Description

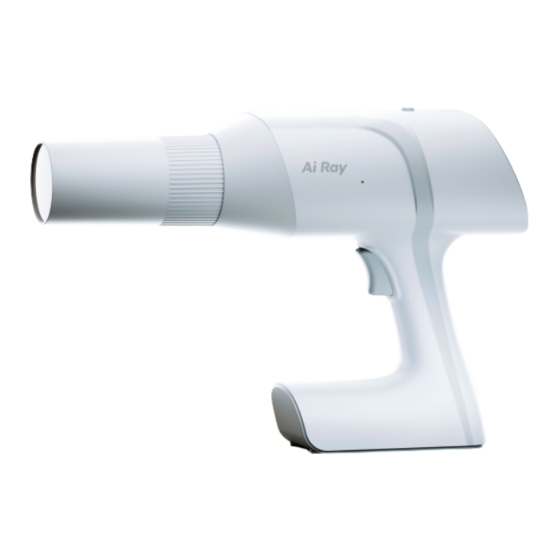

    2. Product installation and function description 2.1 Schematic diagram of the whole machine Figure 1 Schematic diagram of Dental X-Ray Device 2.2 Accessories installation 2.2.1 Installation area Take out all the parts from the packing box. Be careful not to drop or damage the equipment.
  • Page 6 [Note] Only the power adapter and power line provided with the equipment can be used 2.2.3 Exposure handbrake 2.3 Installation Figure 3 Exposure hand brake Note: ① wired connection mode: Long press the switch of exposure hand brake, the exposure starts light on. 2.2.4 Functions of the control panel Figure 4 Control panel...

  • Page 7: Operation Instruction

    Table 1 S/ N Icons Function Selection of equipment: equipment of image receptor for Digital Intraoral X-ray Imaging System, film and image plate scanner (IP image plate) Selection of human body: The patients shot include adults/ children Selection of tooth position : selection of tooth position shot.
  • Page 8 equipment; 3. Select the human body, tooth position and the equipment mode; 4. Adjust the exposure time. The system has a default exposure time, or adjust the shooting time as required; 5. Prepare film or image plate scanner (IP image plate) or Digital Intraoral X-ray Imaging System (sensor).
  • Page 9 3.4.1 Mode function When different modes of the equipment, tooth positions and human bodies are selected, the control panel automatically displays the exposure time. 1. Equipment Mode Click the icon of equipment selection in the arrow indication in Figure 5 to enter the equipment interface as shown in Figure 6.
  • Page 10 Figure 7 Table 2 Human Body Mode Icons Mode Adult Mode Child Mode 3. Tooth Position Mode Click the tooth position selection icon indicated by the arrow in Figure 8 , enter the interface of the tooth position as shown in Figure 9. Select the tooth type to be shot, and the corresponding area of the tooth is displayed in blue.
  • Page 11 Figure 9 3.4.2 Setting function Click the setting icon indicated by the arrow in Figure 10 to enter the setting interface. Different languages and factory modes can be set as shown in Figure 11. After the setting is successful, it will automatically exit to the Figure 10 interface.
  • Page 12 adjust the exposure time from 0.04 second to 1 second. The exposure time can be adjusted from 0.04 seconds to 1 second in 15 steps. 3.4.4 Exposure 1. Long press the exposure switch of Dental X-Ray device to carry out exposure.

  • Page 13: Troubleshooting

    Woodpecker accessories and operated according to the operating instructions. 3.11 Other safety information can be found in each chapter of this instruction manual.

  • Page 14: Maintain Maintenance

    The temperature of Equipment is cooled down equipment is too high before use Restart the machine, if the The voltage of fault still exists, please equipment is too high contact the manufacturer If the above methods can not eliminate the fault, please contact the distributor to return the equipment to the manufacturer for handling.
  • Page 15 Filament frequency: DC/ AC sine wave (0-20kHz) Nominal anode input power: 585W (1s) Anode heat capacity: 4300J Maximum anode heat dissipation: 100W Overall dimension and wiring: as shown in Figure 12 Maximum rated value: as shown in Figure 13 Thermal characteristics: see Figure 14 Filament and emission characteristics: see Figure 15 Figure 12 Mechanical dimension machine wiring Figure 13 Maximum rating diagram...

  • Page 16: Storage, Maintenance And Transportation

    Figure 14 X-ray tube anode heating and cooling curve Figure 15 Filament and emission characteristic curve 8 Storage, maintenance and transportation 8.1 Storage/ maintenance 1) The equipment shall be handled with care, away from the hypocenter, and shall be installed or stored in a cool, dry and ventilated place. 2) Do not store with toxic, corrosive, flammable and explosive substances.

  • Page 17: Environment Protection

    with care to avoid inversion; 2) It shall not be mixed with dangerous goods during transportation; 3) Avoid sun exposure or rain and snow immersion during transportation; 9. Environment protection This equipment can’t be disposed of as household waste. Therefore, this equipment should be placed in a special recycling place for waste electronic medical equipment.

  • Page 18: Electromagnetic Compatibility

    based on the warranty card. Please refer to the warranty card for the warranty period and scope. This product does not contain self-maintained parts, and the maintenance of this equipment should be carried out by designated professionals or special repair shops. 11.
  • Page 19 RF emission The Dental X-Ray Device is suitable Group B CISPR 11 for used in all establishments, Harmonic emission including domestic establishments and Group A lEC 61000-3-2 establishments directly connected to the public low-voltage power supply Voltage fluctuation/ network that supplies buildings used for flicker emission Complied domestic purposes.
  • Page 20 <5% UT <5% UT Mains power quality should be (>95% dip in (>95% dip in Voltage that of a typical commercial UT.) for 0.5 UT.) for 0.5 dips, short or hospital environment. If cycle 40 % cycle 40 % interruptions the user of the Dental X-Ray UT (60% dip UT (60% dip...
  • Page 21 Portable and mobile RF communication equipment should be used not closer to any part of the Dental X-Ray Device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance Conducted 150kHz~80MHz 3Vrms...
  • Page 22 a. Field strengths of a fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.

  • Page 23: Symbol Instruction

    Electromagnetic propagation is affected by the absorption and emission from buildings, objects and human bodies. Notes: Without the explicit consent of Woodpecker, unauthorized changes or modifications to the equipment may cause electromagnetic compatibility problems of this equipment or other equipment.

  • Page 24: Statement

    13 Statement Please refer to the product packaging label for the production date, service life: 10 years.
  • Page 27 ZMN-SM-661 V1.2- 20220414...
