  • Page 2: Table Of Contents

    Contents 1 Product introduction ................1 2 Installation .................... 6 3 Function and operation of product ............ 1 3 4 Operation instruction ................. 1 6 5 Troubleshooting .................. 3 0 6 Cleaning, Disinfection and Sterilization ..........3 1 7 Storage, maintenance and transportation ........... 3 4 8 Environmental protection ..............

  • Page 3: Product Introduction

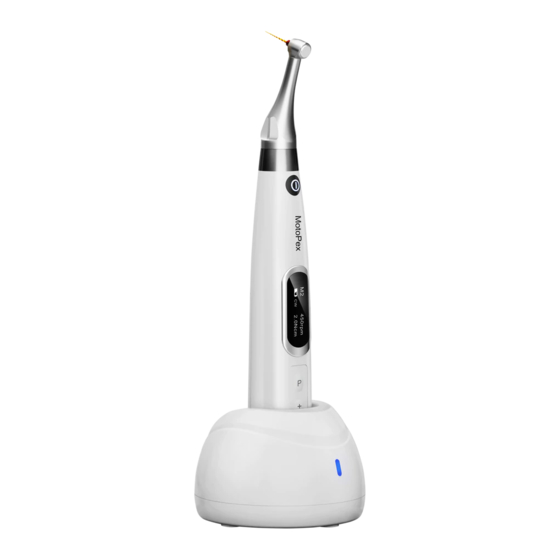

    Ultrasurgery, Endo Motor, etc. 1.2 Product description Endo Motor (mode ： Ai-Motor 、 MotoPex) is mainly used in Endodontic treatment. It is a cordless endo motor with root canal measurement capability. It can be used as a endo motor for preparation and enlargement of root canals, or device for measuring canal length.

  • Page 6: Installation

    1.5 Scope of application 1.5.1 The device can be used for preparation and enlargement of root canals, or device for measuring canal length. 1.5.2 The device must be operated in hospital and clinic by the qualified dentists. 1.6 Contraindication a) The doctor with a pacemaker is disabled. b) patients with cardiac pacemakers (or other electrical equipment) are warned not to use small appliances (such as Electric razors, hair dryers, etc.) patients are disabled.
  • Page 7 1.7.10 Before the contra angle stopping rotating, do not press the push cover of contra angle. Otherwise the contra angle will be broken. 1.7.11 Before the motor handpiece stopping rotating, do not remove the contra angle. Otherwise the contra angle and the gear inside motor handpiece will be broken.
  • Page 8 Input: ~100V-240V 50Hz/60Hz 0.5-0.2A Output: DC5V/1A 1.9.3 Torque rang: 0.4Ncm-5.0Ncm （ 4mNm ~ 50mNm ） 1.9.4 Speed rang: 100rpm~1200rpm 1.9.5 Wireless charging(only for Ai-Motor) Frequency range: 112-205KHz Maximum RF output power of the product: 9.46dBuA/m@3m 1.10 Environment parameters 1.10.1 Environment temperature: +5℃ ~ +40℃...
  • Page 9 This mode is for canal measurement. The motor handpiece does not run in this mode . 2.2.1.2 CW Mode The motor handpiece rotates forward 360º, clockwise direction. Used rotaty files likes DENTSPLY Protaper or WOODPECKER W3-Pro . 2.2.1.3 CCW Mode The motor handpiece rotates counterclockwise direction only. This...
  • Page 10 Forward Angle<Reverse Angle, such as F : 30/R : 150, effective cutting angle is Reverse Angle, it is suitable for used the reciprocating files likes DENTSPLY WAVEONE or WOODPECKER W3-ONE. Forward Angle>Reverse Angle, such as F : 180/R : 30, effective cutting angle is Forward Angle, it is suitable for used the reciprocating files likes SENDONELINE S1.
  • Page 11 2.2.2 Torque Display This appears when the motor is running. Meter shows the torque load on the file. 2.2.3 Canal Measurement Display This appears when a file is inside the canal and the lip hook is contacting the patient mouth. Bars in meter show the location of the file tip.
  • Page 12 device. Otherwise the contra angle will be damaged. 2.4 Installation and removal of contra angle. 2.4.1 Installation Line up the notch inside the contra angle with the projection inside the motor handpiece and slide it in until it clicks securely into place. The contra angle rotates 360°...
  • Page 13 Before starting the device, plug the file into the hole of contra angle head. Hold down the push button on the contra angle and insert the file. Turn the file back and forth until it is lined up with interior latch groove and slips into place.
  • Page 14 Be careful when removing files to avoid injury to fingers. Removing files without holding the push button will damage the chuck of contra angle. 2.6 Canal measurement functional connection This is not required if the canal measurement function will not be used.

  • Page 15: Function And Operation Of Product 1

    Otherwise, the function of root canal preparation and root canal length measurement cannot be used together. 3 Function and operation of product 3.1 Button definition and settings a. Turn power on Press Main button to turn on motor handpiece. b. Turn power off Hold down the Setting button “P”, then press Main button to turn off motor handpiece.
  • Page 16 button “P” till target setting, press Adjusting button “+”/“-” to adjust, then press Main button to confirm. 3.2 Screen display Standby interface a. Customized program sequence number 0-9, totally 10 programs. b. Battery consumption c. Set speed d. Set torque e.
  • Page 17 Apical reference point setting interface a. Apical reference point flash bar b. Apical foramen c. Digital “02” meter reading, very near physiological apical foramen. 3.3 Terms and definition Clockwise rotation, forward ration Be applied to rotaty file Counter clockwise rotation, reverse rotation Be applied to special file, inject calcium hydroxide and other solutions Reciprocating motion...

  • Page 18: Operation Instruction 1

    The file rotation starts automatically when the file Auto Start is inserted in the canal. The file rotation stops automatically when the file Auto Stop is taken out of the canal. The file slows down automatically as it Apical Slow Down approaches the apex.
  • Page 19 d) Hold down the Setting button “P”, then press Main button to turn off motor handpiece. In Standby Interface, the motor handpiece would automatically shut down after 3 minutes without any button-pressing operation. The motor handpiece will also automatically shut down while it is put into the charging base.
  • Page 20 The speed setting can be adjusted from 100 rpm to1200 rpm. Press Adjusting button “+”/“-” to increase or decrease speed. Long press to fast increase or fast decrease speed. In ATR mode, speed of 100~500rpm are available. In REC mode, speed of 100~500rpm are available.
  • Page 21 Rotation starts automatically when the file is inserted into the canal and the canal length indicator bar lights up more than 2 bars. P ress Adjusting button “+”/“-” to change. OFF: Motor does not start when file is inserted into the canal. The Main button is used to start and stop the motor handpiece.
  • Page 22 Forward Angle<Reverse Angle, such as F: 30º/ R: 150º, effective cutting angle is Reverse Angle, it is suitable for used the reciprocating files likes DENTSPLY WAVEONE or WOODPECKER W3-ONE. Forward Angle>Reverse Angle, such as F: 180º/ R: 30º, effective cutting angle is Forward Angle, it is suitable for used the reciprocating files likes SENDONELINE S1.
  • Page 23 After select file system, press Setting button “P” to entry select file number, press Adjusting button “+”/“-” to select file number, then press Main button to confirm. The parameters of "W3-Pro"can also be changed make it different from default setting. If want to change back to default setting, long press Setting button “P”...
  • Page 24 Press Setting button “P”again, the "Calibration" can be change, press Adjusting button “+”/“-” to select “ON”, then press to "Main" button to calibration. Before calibrating, making sure the original contra angle is installed, and do not install the file. The torque will not correct if calibration without original contra angle or any load on contra angle chuck, andhas risk of file separate.
  • Page 25 Cautions: 1. Protective function of automatic reverse is ONLY suitable for CW mode. 2. In REC mode, when the load value is higher than preset torque value, if Forward angle is greater than Reverse angle, the file rotation automatically change to reverse rotation, and if Forward angle is less than Reverse angle, the file rotation automatically change to forward rotation.
  • Page 26 Motor combined canal measurement function mode When using motor combined canal measurement function, the measuring wire must be connecting with motor handpiece by USB socket, and white socket connects with patient’s lip by lip hook, keep the black socket idle. The canal length indicator bar will show on the screen (more information about canal length...
  • Page 27 4.8 Canal measurement operation When using as alone apex locator mode. We suggest put the motor handpiece on the charging base to get better visual angle. Press Setting button “P” once during standby state, press Adjusting button “+”/“-” to select EAL Operation mode, then press Main button to confirm.
  • Page 28 Connection testing Strongly recommend check the connection testing every time before use. Clip the holder onto lip hook and check that all the bars on the meter on the screen light up, otherwise, the measuring wire or file clip should be replace.
  • Page 29 Root canal with blood overflowing from the opening If blood overflows from the opening of the root canal and contacts the gums, this will result in electrical leakage and an accurate measurement cannot be obtained. Wait for bleeding to stop completely. Clean the inside and opening of the canal throughly to get rid of all blood, and then make a measurement.
  • Page 30 Re-treatment of a root filled with gutta- percha The gutta-percha must be completely removed to eliminate its insulating effect. After removing the gutta-percha, pass a small file all the way through the apical foramen and then put a little saline in the canal, but do not let it overflow the canal opening.
  • Page 31 The actual apex for the canal is not the same as that for the anatomical apex. There are frequently cases where the apical foramen is located up towards the crown. In these cases, an X-ray might indicate that the file has not reached the apex even though it has actually reached the apical foramen.

  • Page 32: Troubleshooting 3

    grease the contra angle for 2-3s till the oil flow out of contra angle head part. 3. Vertically place the end part of contra angle more than 30 minutes to let go the redundant oil under gravity. Warnings Motor handpiece cannot be filled with oil. Cautions a: To avoid the contra angle from flying out for the pressure, use hand to safely hold the contra angle while greasing.

  • Page 33: Cleaning, Disinfection And Sterilization 3

    The time of endurance Battery capacity Please contact becomes shorter after becomes smaller. local distributor or charging. manufacturer. No sound Beeper Volume set to 0. Set Beeper Volume to Vol.0: Mute. 1,2,3. The continuously Incorrect specification Choose CCW Mode, rotating file is stuck at setting.
  • Page 34 Health Canada. 6.2.10 To sterilize the endodontic files, refer to the manufacturer's instructions for use. 6.2.11 The contra angle needs to be lubricated after cleaning and disinfection, but before sterilization. 6.3 Step-by-Step Procedure # Operation Operating Mode Warning 1 Preparation Remove accessories (contra angle, lip...
  • Page 35 # Operation Operating Mode Warning 3 Inspection Inspect the - Dirty accessories (contra angle, accessories lip hook, file clip, touch probe, (contra angle, lip protective silicon cover) must be hook, file clip, cleaned and disinfected again. touch probe, - Lubricate the contra angle with an protective silicon adequate spray before packaging.

  • Page 36: Storage, Maintenance And Transportation 3

    # Operation Operating Mode Warning 6 Storage Keep the - Sterility cannot be guaranteed if accessories packaging is open, damaged or wet. (contra angle, - Check the packaging and the lip hook, file contra angle before using it clip, touch (packaging integrity, no humidity probe, protective and validity period).

  • Page 37: Environmental Protection 3

    7.3 Transportation 7.3.1 Excessive impact and shake should be prevented in transportation. Lay it carefully and lightly and don’t invert it. 7.3.2 Don’t put it together with dangerous goods during transportation. 7.3.3 Avoid solarization and getting wet in rain and snow during transportation.

  • Page 38: Statement 3

    Guidance and manufacturer’s declaration - electromagnetic emissions The model Ai-Motor 、 MotoPex is intended for use in the electromagnetic environment specified below. The customer or the user of the model Ai-Motor 、 MotoPex should assure that it is used in such an environment.
  • Page 39 Guidance & Declaration — electromagnetic immunity The model Ai-Motor 、 MotoPex is intended for use in the electromagnetic environment specified below. The customer or the user of the model Ai-Motor 、 MotoPex should assure that It is used in such an environment.
  • Page 40 Conducted RF & Radiated RF Guidance & Declaration - Electromagnetic immunity The model Ai-Motor 、 MotoPex is intended for use in.the electromagnetic environment specified below. The customer or the user of the models Ai- Motor 、 MotoPex should assure that it is used in such an environment.
  • Page 41 Portable and mobile RF communications equipment should be used no closer to any part of the models Ai-Motor 、 MotoPex, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. 3 Vrms...
  • Page 42 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model Ai-Motor 、 MotoPex is used exceeds the applicable RF compliance level above, the model Ai-Motor 、 MotoPex should be observed to verify normal operation.
  • Page 43 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer.
  • Page 44 ZMN/WI-09-475 V1.4-20190703...
