Content 1. Introduction ..................1 2. Identification data ................4 3. Testing of the device ................5 4. Delivery ....................6 5. List of material included in the supply ........... 6 6. Installation ..................8 7. Controls .................... 1 1 8. Cleaning ,disinfection , Sterilization and maintenance ....1 6 9.
The user is not authorized to tamper with the equipment under any circumstances. If any problems are encountered, please contact a Woodpecker Service Centre. Any attempts on the part of the user or any unauthorized personnel to tamper with or alter the apparatus will invalidate the warranty and release the Manufacturers from any liability in respect of any harm or damage to persons or property.
Page 4
(anaesthetic mixture, oxygen, etc). 1.4 Safety requirements Woodpecker will not accept any liability for direct or incidental personal injury or damage to property in the following cases: 1.4.1 If the equipment is used for purposes other than that for which it is intended;...
Page 5
8 strictly. Danger: Use only original Woodpecker accessories and spare parts. Danger: Check the condition of the device before treatment.
An exact description of the model including the serial number of the equipment will make it easier for our After-Sale Service to respond quickly and efficiently to your enquiry. Always provide the above information whenever you contact a Woodpecker Service Centre. 2.2 Data plate of the device Each device has its own data plate (Fig.1), on which technical specifications...
2.3 Data plate of the scaler handpiece The serial number of the Surgic Touch (LED) handpiece is engraved on the ring nut (Fig.2). Fig.2 3. Testing of the device All the devices are checked and tested by Woodpecker completely, including all the parts.
When testing, all the parts will work in intermittent operation. The test emphasized that all the problems are from the failure parts. This procedure ensures the function and reliability of all the parts. 4. Delivery Avoid the excessive concussion, shake, cover in delivery. Do not mix with the danger articles.
6. Installation 6.1 Safety requirements during Installation Danger: The wiring system of the premises where the apparatus is installed and used must comply with the applicable standards and the relevant electrical safety requirements. Danger: Do not install the apparatus in places where there is a risk of explosion.
Page 11
1000ml, and the weight should not exceed 1Kg. 6.2 Initial installation To ensure perfect operation of the equipment, it is installed by technical personnel authorized by Woodpecker. The equipment will be installed in a suitable and handy place for it to be used. The technician must: 6.2.1 Install the device in a suitable place;...
Page 12
Danger: personnel injury. The footswitch of the Surgic Touch (LED) must not be activated when the door of the peristaltic pump open. (Fig.5—Ref.A).Moving parts could injure the operator. 6.3.2 Insert the rod for supporting the bag into the holes provided for it (Fig.6— Ref.A);...

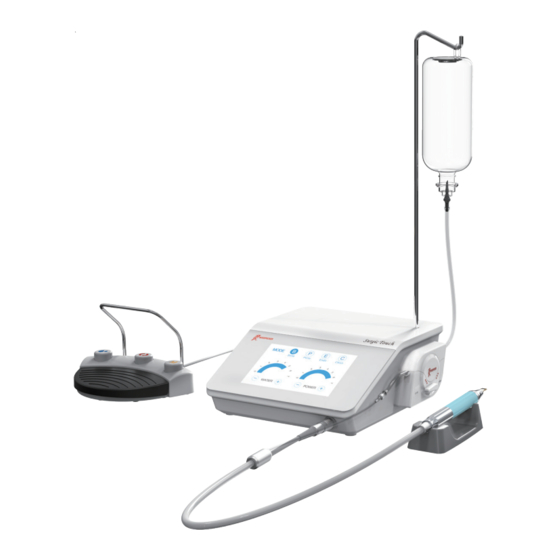

7. Controls 7.1 Description of the controls This section illustrates the parts of the front panel of the Surgic Touch (LED) unit, enabling the controls described in this manual to be located immediately. 7.1.1Description of bone function: Bone function Water Power increase/decrease increase/decrease...
Page 14
7.1.3 Description of Endo function: Endo function Water Power increase/decrease increase/decrease Fig.10 7.1.4 Description of clean function: Clean function Fig.11 7.2 Description of the display and functions There are three functions of bone root, clean for this Surgic Touch (LED). 7.2.1 BONE function (Fig.8) In bone function, both the water and power model are available.Seven power levels as follows:...
Page 15
c)Power 3-4: Middle bone density d)Power 2-3: Low bone density e)Power 1: Very low bone density 7.2.2 PERIO function (Fig.9) In this function, both the water and power model are available, one model as follow:Perio. 7.2.2 ENDO function (Fig.10) In this function, both the water and power model are available, one model as follow:Endo.
Page 16
Warn 02 There is no reliable Please reconnect the handle interface connection in the handle Warn 03 Fan failure Please call the Woodpecker service centre immediately. Warn 04 Pump failure Please call the Woodpecker service centre immediately.
Page 17
Warning code Warning description Solution Warn 05 Abnormal power failure Please call the Woodpecker service centre immediately. Abnormal handle or Please reconnect the handle and Warn 06 work tip loosening tighten the working tips. If the alarm is not eliminated, please contact the local sales or woodpecker company.
7.6 Rules for keeping the device in proper working order 7.6.1 Check the state of wear of the tips periodically and replace any for which a drop in performance is noted; 7.6.2 Do not alter the shape of the tips by bending or filling them; 7.6.3 Replace any tip that has become deformed or damaged by impacts;...
Page 19
product-specific procedures are used for cleaning and sterilization, and that the validated parameters are adhered to during every cycle. Please also observe the applicable legal requirements in your country as well as the hygiene regulations of the hospital or clinic. This applies especially with regard to the additional requirements for the inactivation of prions.
Page 20
b. Using a suitable rinsing adaptor, connect the product lumina to the rinsing connections of the disinfector. c. Start the program. d. Remove the products from the disinfector and start the inspection (see section Inspection and maintenance) after the program ends. e.
Page 21
8.3 MANUAL PROCEDURE When selecting the cleaning agent to be used, ensure that: • These are fundamentally suitable for the cleaning of the products and compatible with one another, • The detergent agent holds a tested effectiveness (e.g. DGHM, FDA approval or CE marking), •...
Page 22
institutes, do not contain chlorine and have been declared aldehyde-free. Warning:The handpiece to be Cleaned and disinfected before each use. For cleaning and disinfection proceed follows: # Action Separate the handpiece from the main unit, thoroughly surfaces with a soaked wipe. After any pre-cleaning, lightly soak a paper tissue or soft cloth in a mild, aldehyde-free disinfection and cleaning solution (bactericidal and fungicidal) and use it to clean/disinfect all...
Page 23
must also comply with EN ISO 11607 and be suitable for steam sterilization (temperature resistant to 134°C with adequate steam permeability). Use only the following listed steam sterilization procedures for sterilization; other sterilization procedures are not permissible: • Fractional pre-vacuum procedure* * Fractional pre-vacuum procedure = steam sterilization with repetitive pre- vacuum.
9.4 If the device is not used for a long time running, it is better to connect the electricity and water one time per month, 5 minutes per time. 9.5 disconnect the device from the power mains. Danger: Check regularly that the power cable is intact, if it is damaged, replace it with an Woodpecker spare.
10. Replacement of the fuses Danger: Switch off the apparatus. Always turn off the apparatus by means of the switch (Fig.5-Ref.B) and disconnect it from the power outlet before carrying out the following maintenance activities. 10.1 Insert the flat tip of a screwdriver into the recess in the fuse compartment below the power socket and use it as a lever (Fig.12-Ref.A);...
12. Tips 12.1 Sharp tips The sharp edges of these tips can be used to treat bone structures efficiently and effectively. Sharp tips are used in osteotomy and osteoplasty when a fine and well-defined cut in the bone structure concerned it required, there are also tips with sharp edges for osteoplasty techniques and for removing bone fragments.
Contact the nearest on the rear of the device The footswitch will not dealer or authorized properly. work. Woodpecker service centre. A faint whistle can be heard coming from the The tip is not correctly Unscrew the tip and Surgic Touch (LED)
Page 28
Connect the cord to the device. device. Contact the nearest Lack of continuity of a lead dealer or authorized in the cord. Woodpecker service The device is switched centre. on but will not work, the Contact the nearest message WARN appears dealer or authorized Handpiece failure.
Contact the nearest No liquid comes out of dealer or authorized The handpiece is clogged. the tip during operation. Woodpecker service centre. The device is working Too much pressure by the Check that the tube in properly, but the pump is...
We are not responsible for any irretrievable damage caused by the non- professional person. Woodpecker state that the we can provide circuit diagrams, component lists, drawings, calibration details, or other information to help maintenance personnel repair Surgic Touch(LED) components that can be repaired by maintenance personnel designated as required.
The warranty is valid only if the warranty slip enclosed with the product has been completed in full and returned to us or, if appropriate, to your WOODPECKER dealer or importer within 20 days from the date of purchase, as proven by the...
In the event of failure due to accidents or improper use, or if the warranty has lapsed, repairs to WOODPECKER produces will be charged on the basis of the actual cost of the materials and labour required fro such repairs.
Page 33
The models Surgic Touch(LED) use RF energy only for its internal function. RF emissions Group 1 Therefore, its RF emissions are very low and CISPR 11 are not likely to cause any interference in nearby electronic equipment. RF emissions The models Surgic Touch(LED) are suitable Class B CISPR11 for used in domestic establishment and in...
Page 34
Voltage dips, <5 % U <5% U Mains power quality should be short (>95% dip (>95% dip in that of a typical commercial or interruptions in U hospital environment. If the user for 0.5 for 0.5 cycle of the models Surgic Touch(LED) voltage cycle 40% U...
Page 35
Conducted 3 Vrms 3V d Portable and mobile RF communications 150 kHz 3 V/m equipment should be used no closer IEC 61000-4- to 80 MHz to any part of the models Surgic 3 V/m Touch(LED), including cables, than Radiated RF 80 MHz to the recommended separation distance lEC 61000-4-...
Page 36
Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
Page 37
For transmitters rated at a maximum output power not listed above, the recommended separationdistance d in meters (m) can be estimated using the equation applicable to the frequency of thetransmitter, where P is the maximum output power rating of the transmitter in watts (W) accordableto the transmitter manufacturer.
