Summary of Contents for Diamond Products CC800M

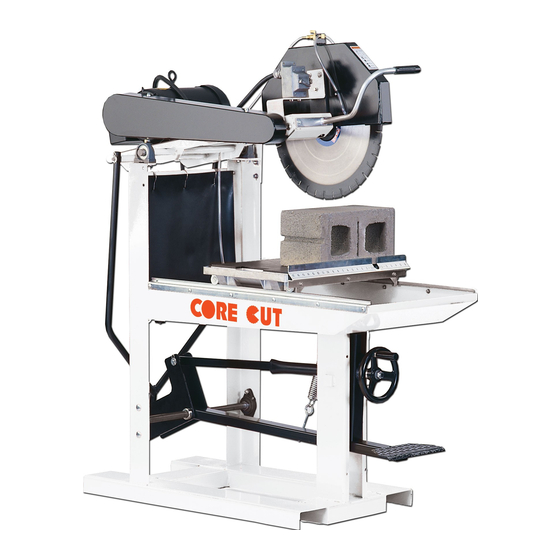

- Page 1 DIAMOND P R O D U C T S OPERATOR’S MANUAL CORE CUT MASONRY SAW MODEL: CC800M...
- Page 2 SAFETY WARNINGS PERSONAL SAFETY • Read and understand instructions before operating saw. • not operate the saw under influence drugs alcohol. • Always wear safety-approved hearing, eye, head and respiratory protection. • Sturdy boots with non-slip soles aid in providing proper footing. steel-toed safety boots recommended.
- Page 3 OPERATING INSTRUCTIONS: BLADE MOUNTING: Be certain that have the correct diamond blade for the application. Contact your authorized service dealer for correct specification. Getting the correct blade will made a tremendous difference in your blade costs performance. The blade shaft flanges and arbor must be inspected...
- Page 4 WARNING: Always make sure that motor connected to a properly grounded outlet. Failure to do so may result in serious bodily injury or death. Do not operate motor on low voltage. It may cause power loss, overheating, or burn out motor windings. Check voltage motor while operating.
- Page 5 ABOUT DIAMOND BLADES Diamond Products manufactures diamond blades suited for your specific cutting needs – brick, concrete block .tile, refractory etc. Contact a Diamond Products Customer Service...
- Page 6 SPECIFICATIONS Blade Capacity: 20" 24" & Maximum Depth of Cut: 8" & 10" Respectively Arbor Size: 1" Blade Drive: Matched premium gripnotch V-belts Models: CC850-E 1-20 CC850-E3-20 Baldor Electric Motor Baldor Electric Motor 5 Hp - Phase, Totally Enclosed 5 Hp - Phase, Totally Enclosed Fan Cooled...
- Page 7 Intentionally Blank...
- Page 8 333 Prospect Street, Elyria, Ohio 44035 (440) 323-4616 • (800) 321-5336 • Fax (440) 323-8689 www.diamondproducts.com Printed in U.S.A.
