REPLACEMENT PARTS

Foreaseofidentificationwhenorderingreplacementpartsor
contacting the factory about your unit, please quote the unit type
and unit serial number. This information can be found on the
serialplateattachedtoyourunit(seeFigure18.2).
When a component part fails, a replacement part should be
obtained through our Parts Department. If the part is considered
to be under warranty, the following details are required to
process this requirement:
1. Full description of part required, including Unit's part number,
if known.
2. The original equipment serial number.
3. An appropriate purchase order number.
Figure 18.1 - Model Number Designations
1,2 3 4,5 6 7 8 9
PT CC MBH SV G C VC F CG DM PA CO HO HP EH PC
1,2 - Product Type (PT)
UV - Sentinel
3 - Cooling Control (CC)
V - Valve Control, Blow Thru
D - Face & Bypass, Draw Thru
4,5 - Nominal Capacity (MBH)
30 - 30,000 Btu/Hr
40 - 40,000 Btu/Hr
50 - 50,000 Btu/Hr
60 - 60,000 Btu/Hr
6 - Supply Voltage (SV)
A - 115/60/1
B - 208/60/1
C - 230/60/1
H - 277/60/1
7 - Generation (G)
A - Current Design
8 - Control (C)
M - Modine Control System
F - Factory Installed Free Issue
B - By Others - Field Installed
9 - Ventilation Configuration (VC)
A - Economizer with No Exhaust
B - Economizer with Gravity Exhaust
C - Economizer with Powered Exhaust
D-ERVwithOADamper(Digit3=Vonly)
E - ERV with OA Damper & Economizer
(Digit3=Vonly)
10 - Filtration (F)
A-MERV8(Standard)
B - MERV 11
C - MERV 13
11 - Case Gauge (CG)
A-20Ga(Standard)
B - 16Ga
12 - Door Mounted Stat (DS)
N - None
V - Vertical Stat
H - Horizontal Stat
18
10 11 12,13 14 15 16 17 18,19 20
13 - Door Mounted Other (DO)
N - None
K - Key Over-ride
S - Occupancy Sensor
L - Indicator Light
T - Twist Timer
14 - Piping Arrangement (PA)
2 - 2 Pipe
4 - 4 Pipe
15 - Cooling Option (CO)
0 - None
6 - 6-row coil
16 - Heating Option (HO)
0 - None
1 - 1-row coil
2 - 2-row coil
6 - 6-row coil
9 - 1-row steam coil
17 - Heating Position (HP)
N - Not Applicable
R - Reheat
18,19 - Electric Heat (EH)
00 - None
02-2kW(1-stage)
03-3kW(1-stage)
04-4kW(1-stage)
05-5kW(1-stage)
06-6kW(2-stage)
07-7kW(2-stage)
08-8kW(2-stage)
09-9kW(2-stage)
10-10kW(2-stage)
20 - Piping Connections (PC)
T - Top Connections
B - Bottom Connections

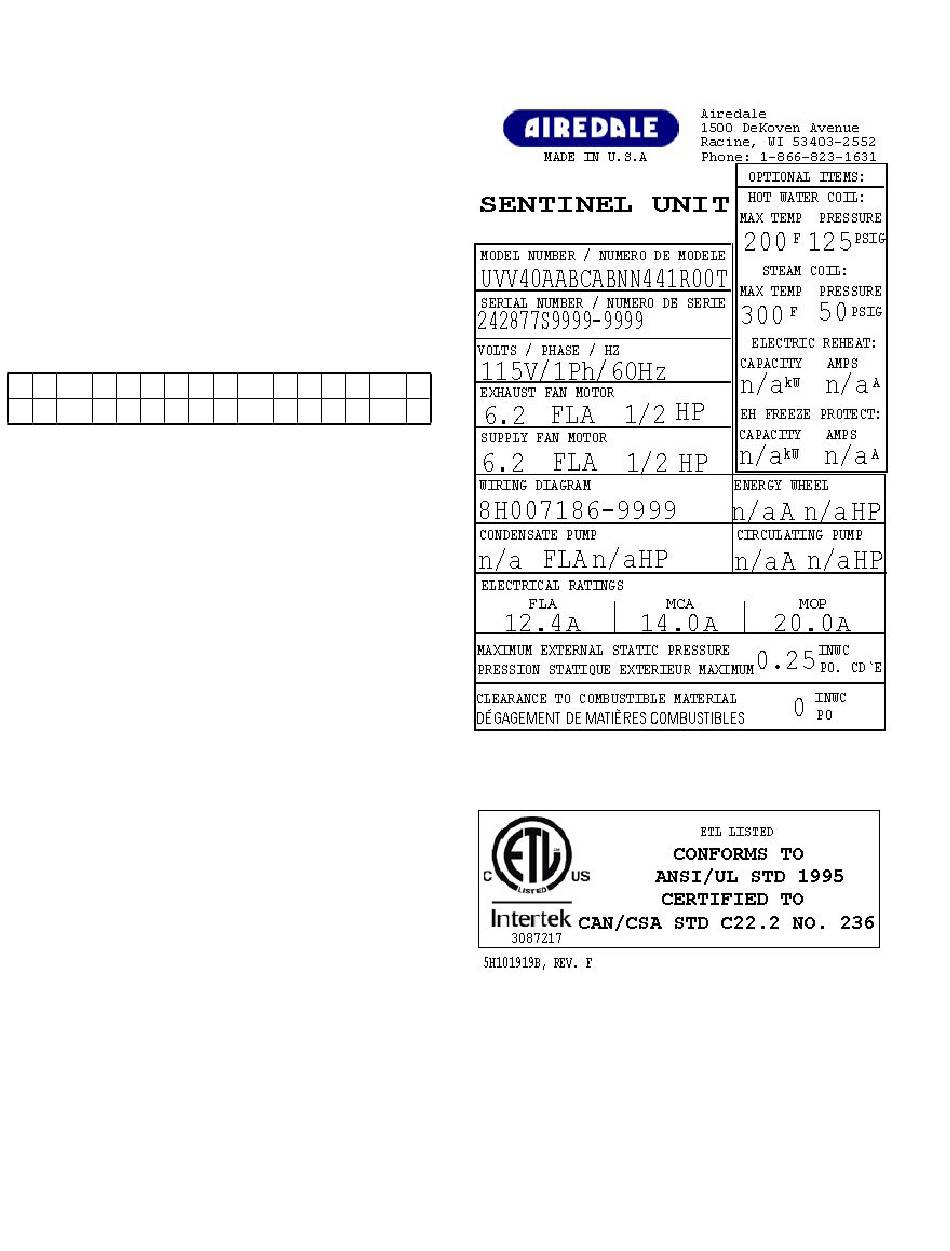

Figure 18.2 - Serial Plate EXAMPLE
