DIMENSIONS

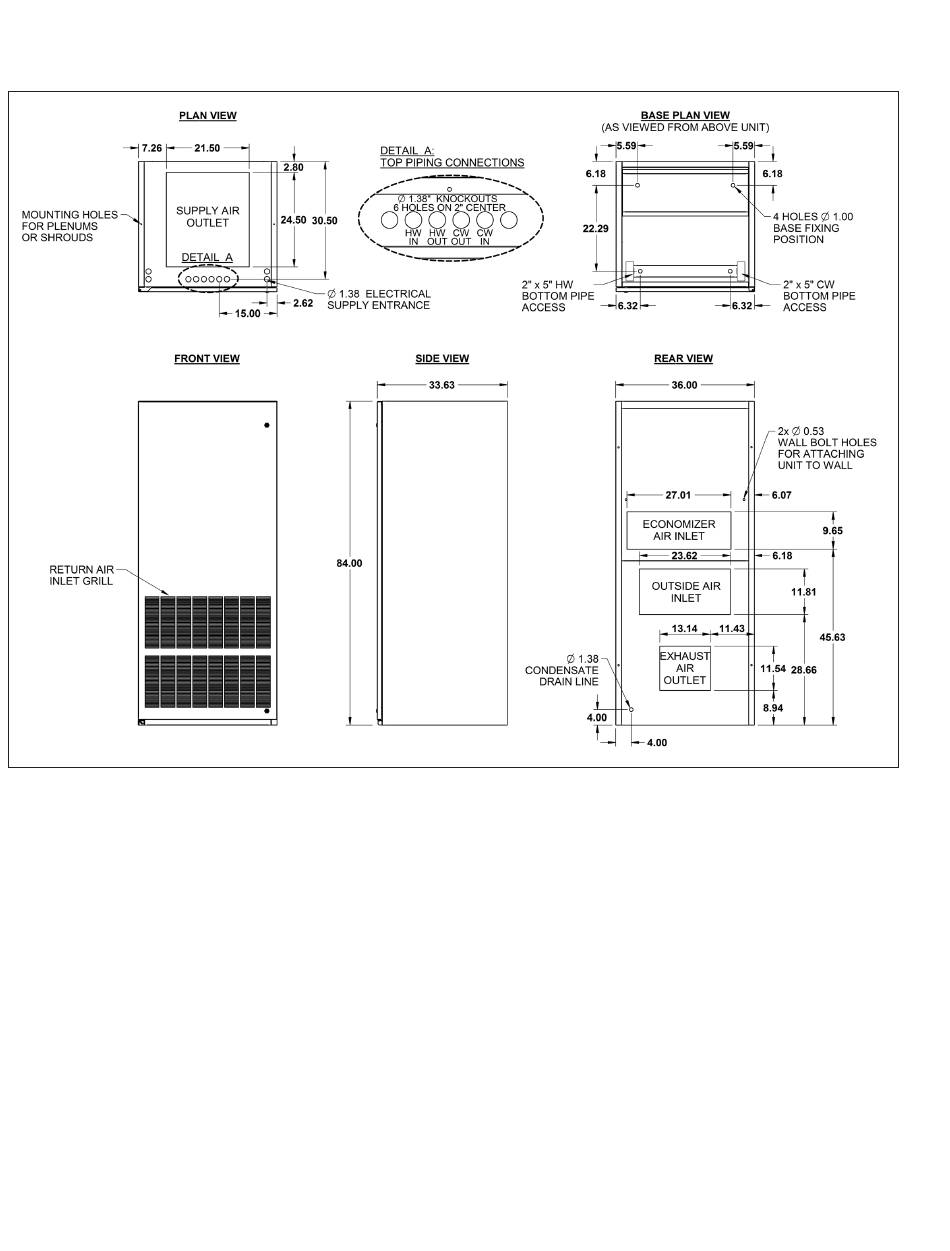

Figure 9.1 – Dimensions – Base Unit UVV (Digit 9: Ventilation Configuration = E)
NOTE:
Unit will be provided with top and bottom piping knockouts. Reference Digit 20 in unit nomenclature to understand where terminations are located.
AIR 3-500.3
