ACCESSORY INSTALLATION
9. C leanthefrontflangeoftheoutersplitterplateandattachthe
gaskettotheflange.SeeFigure14.1.

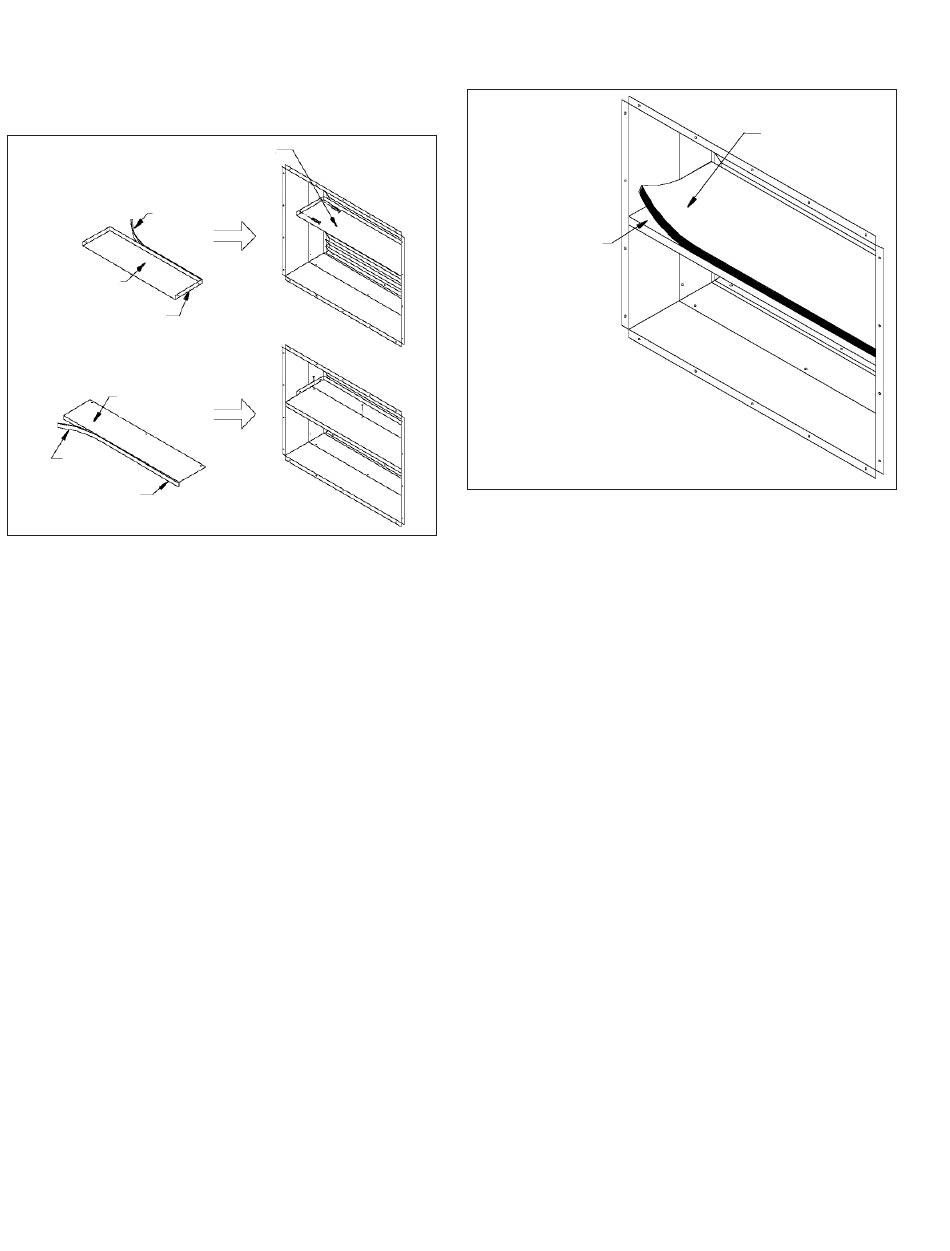

Figure 14.1 - Splitter Plate Installation
ANGLE SPLITTER PLATE
SLIGHTLY DOWNWARD
TOWARD THE OUTSIDE
OF THE BUILDING
GASKET
OUTER SPLITTER
PLATE
ALL FLANGES
UP
INNER SPLITTER
PLATE
GASKET
FLANGE
DOWN
10. Place the outer splitter plate in the proper position inside the
wall sleeve. The splitter plate must be positioned between
the fresh air intake and the exhaust air outlet on the back
of the classroom unit. The splitter plate should be angled
slightlydownward(approx1/2"overadistanceof8"),
toward the outside of the building, and the gasket should be
in tight contact with a blade near the center of the louver.
11. U seself-tappingscrews(byothers)tofastentheouter
splitter plate to the wall sleeve.
12. Place the inner splitter plate over the outer splitter plate,
ensuringthattheroomsideflangeisflushwiththewall
sleeveflange.Figure14.1.
 1 3. U seself-tappingscrews(byothers)tofastentheinner
splitter plate to the outer splitter plate.
14. Seal the inner and outer splitter plates to the wall sleeve,
ensuring that no air can pass from one side to the other.
15. Clean the top surface of the two splitter plates and attach 1"
thickfoil-facedinsulation(byothers).SeeFigure14.2.
16. C leanthewallsleeveflangeandinnersplitterplateflange
and attach the double-sided gasket. Note: Do not remove
the backing strip from the room side of the gasket until the
classroom unit is ready for installation. See Figure 14.1.
14
Figure 14.2 - Splitter Plate Insulation
CLEAN TOP SURFACE
OF SPLITTER PLACE
BEFORE INSTALLING
INSULATION
AIR 3-500.3
1" FOIL FACED
INSULATION
(BYOTHERS)
