DIMENSIONS

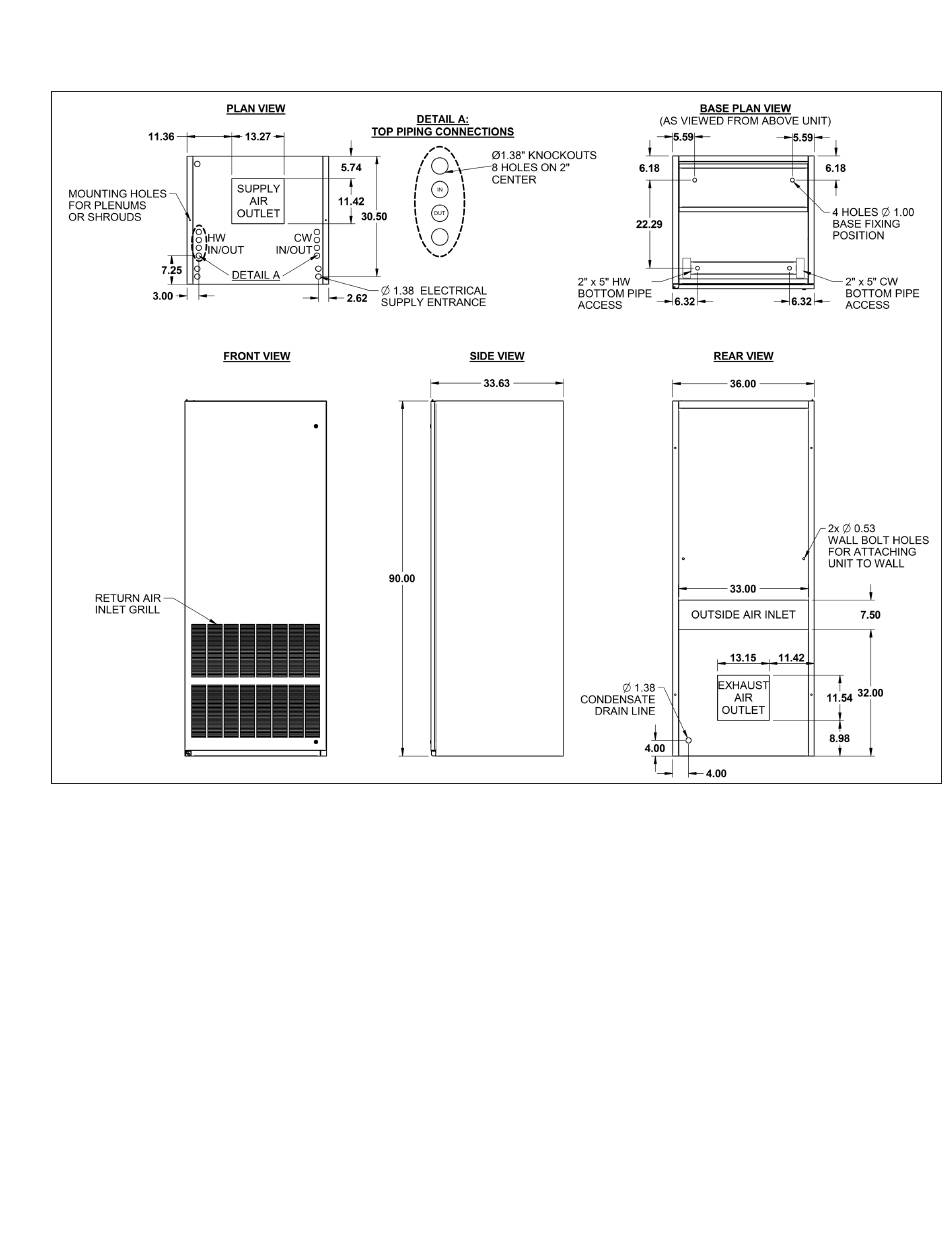

Figure 11.1 – Dimensions – Base Unit UVD (Digit 9: Ventilation Configuration A, B or C)
NOTE:
1.BaseUnitUVD(Digit9:VentilationConfiguration=A)willbeprovidedwithnoExhaustAirOutlet.
2. Unit will be provided with top and bottom piping knockouts. Reference Digit 20 in unit nomenclature to understand where terminations are located.
AIR 3-500.3
11
