ACCESSORY INSTALLATION

ACCESSORY INSTALLATION
IMPORTANT
Theuseofthismanualisspecificallyintendedfora
qualifiedinstallationandserviceagency.Aqualified
installation and service agency must perform all
installation and service of these appliances.
Wall Sleeve and Louver (Optional)
Instructions only applicable to accessories sold by Modine. If not
provided by Modine, consult manufacturer's recommendations.
The wall sleeve is designed to provide a sealed plenum from
the fresh air intake and exhaust air outlet on the back of the
classroom unit to the outside of the building. When a single wall
sleeve is used, the intake and exhaust airstreams are separated
with a splitter plate. Units may use a single wall sleeve with
horizontal splitter plate or double wall sleeves depending on the
unitconfiguration.
Wall Sleeve Kit Includes:
• Outer wall sleeve
• I nnersplitterplate(ifapplicable)
•  Outersplitterplate(ifapplicable)
• Inner wall sleeve
• Masonry screws
• One roll of gasket material
Assembly/Installation
The recommended procedure for assembly and installation is
described as follows:
1. Check to insure that the opening in the wall is at the correct
heightfromthefloorandthatthesizeoftheopening
is correct. This information is contained in the Modine
Engineering Manual or submittal.
2. From inside the building, slide the outer wall sleeve into the
wallopeninguntiltheflangeisintightcontactwiththewall.
See Figure 13.1.

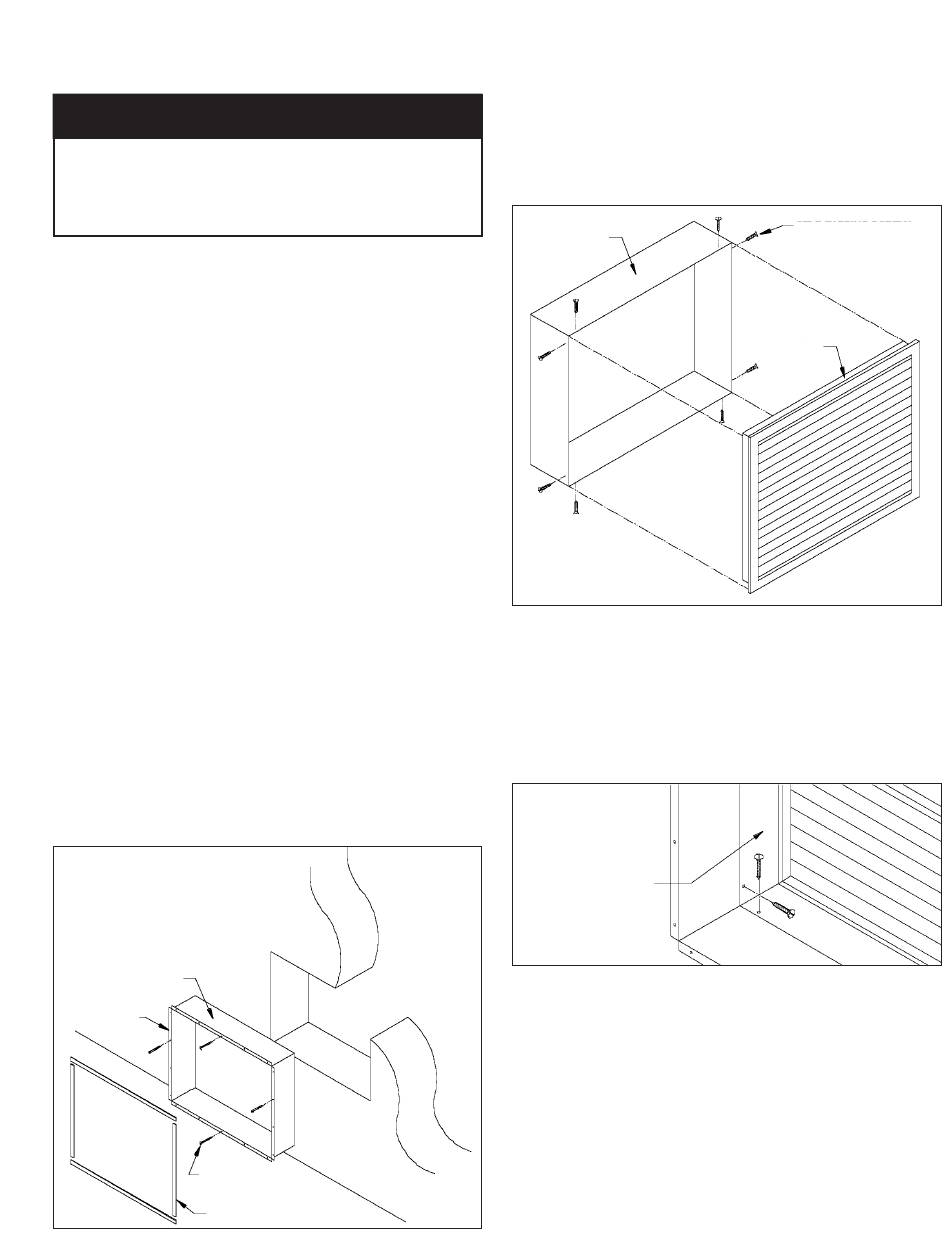

Figure 13.1 - Outer Wall Sleeve
INTERIOR WALL OF BUILDING
OUTER WALL
SLEEVE
FLANGE
MASONRY SCREWS
(FASTENTOWALL)
GASKET
3. Use the masonry screws provided to fasten the wall sleeve
flangetothewall.Donotattachthewallsleevetothe
classroom unit.
4. S lidethelouver(soldseparately)intotheinnerwallsleeve.
Useself-tappingscrews(byothers)tosecurethelouverto
the wall sleeve. See Figure 13.2.
Figure 13.2 - Louver and Inner Wall Sleeve
INNER WALL
SLEEVE
5. From outside the building, slide the louver and inner wall
sleeve into the wall opening and the outer wall sleeve until
thelouverflangeisintightcontactwiththewall.
6. Use an exterior grade sealant to seal the louver to the wall.
7. F rominsidethebuilding,useself-tappingscrews(byothers)
to fasten the two halves of the wall sleeve together. See
Figure 13.3.
Figure 13.3 - Wall Installation
FROM THE OUTSIDE PUSH
LOUVER AND INNER WALL
SLEEVE INTO THE WALL
OPENING SO THE LOUVER
FLANGE IS IN TIGHT
CONTACT WITH THE WALL
8. Seal the seam between the inner and outer wall sleeve.
AIR 3-500.3
SELF-TAPPING SCREW
(BYOTHERS)
LOUVER
