Accessories

Rack Mounting HyperDeck

The HyperDeck Extreme 8K HDR and HyperDeck Extreme Control can be rack mounted into a
broadcast rack or road case using the HyperDeck rack mount kit.
Sitting at three rack units high and half the width of a standard rack, HyperDeck Extreme can
be mounted side by side or individually using the blanking panel provided with the kit.
The HyperDeck rack mount kit includes the following:

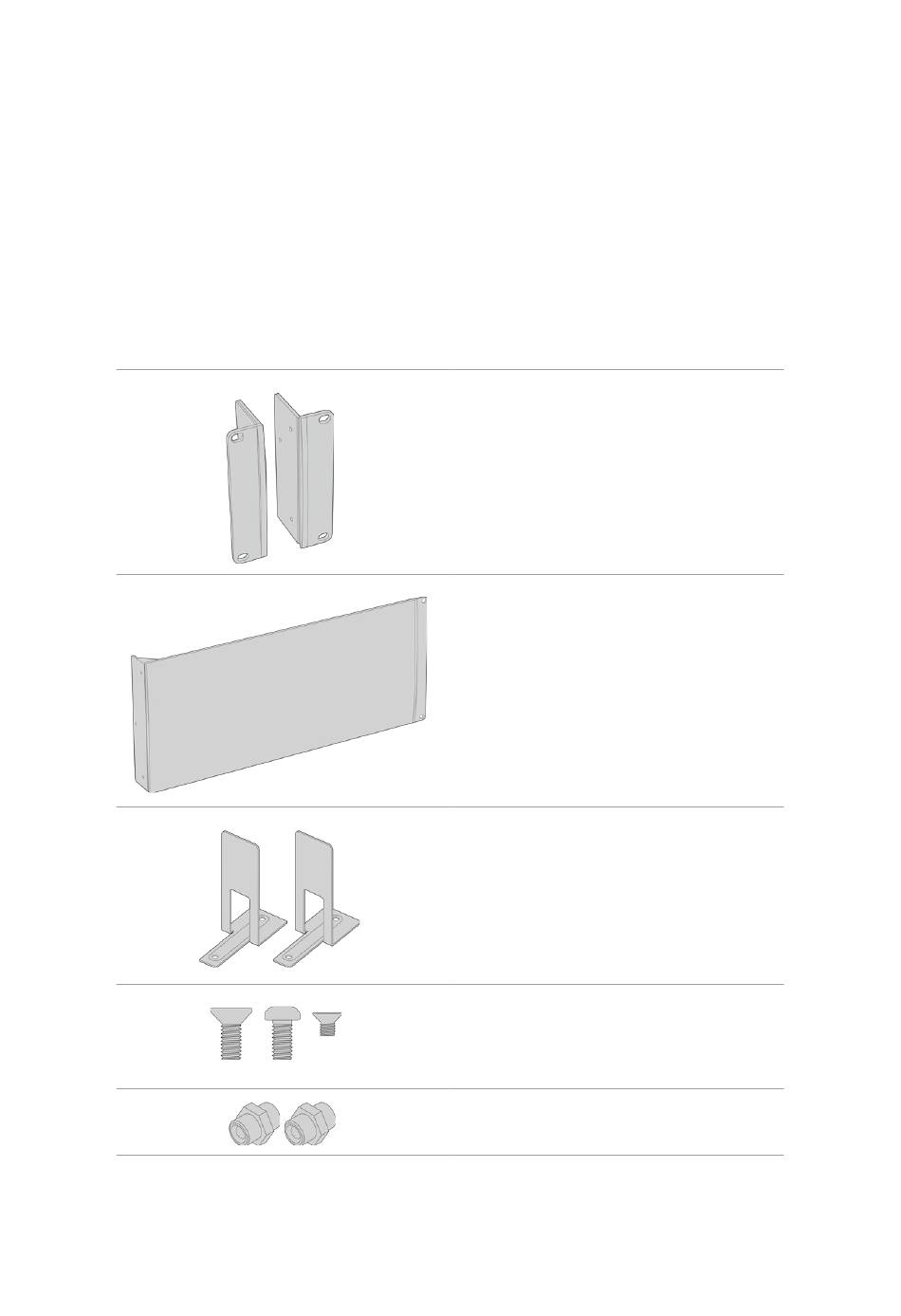

The HyperDeck Extreme Rack Kit contains the following items:
2 x Rack ears
Attach rack 'ears' to the outside edge of
HyperDeck Extreme for mounting in a rack.
1 x Half rack width blanking panel
The blanking panel has a mounting ear on one side
so you can cover the empty rack space if you are
installing a single unit. The illustration shows the ear
on the right side. Simply rotate the panel 180° to
mount it to the other side.
2 x Support brackets
The T-shaped support brackets attach underneath
the HyperDeck Extreme units where the two units
meet at the front and the rear to provide support.
Screws
8 x M4 10mm 4 x M4 8mm
Rack Blanking
ear screws panel screws
2 x Cable tab insert
15 x M3 5mm
Support bracket
screws
