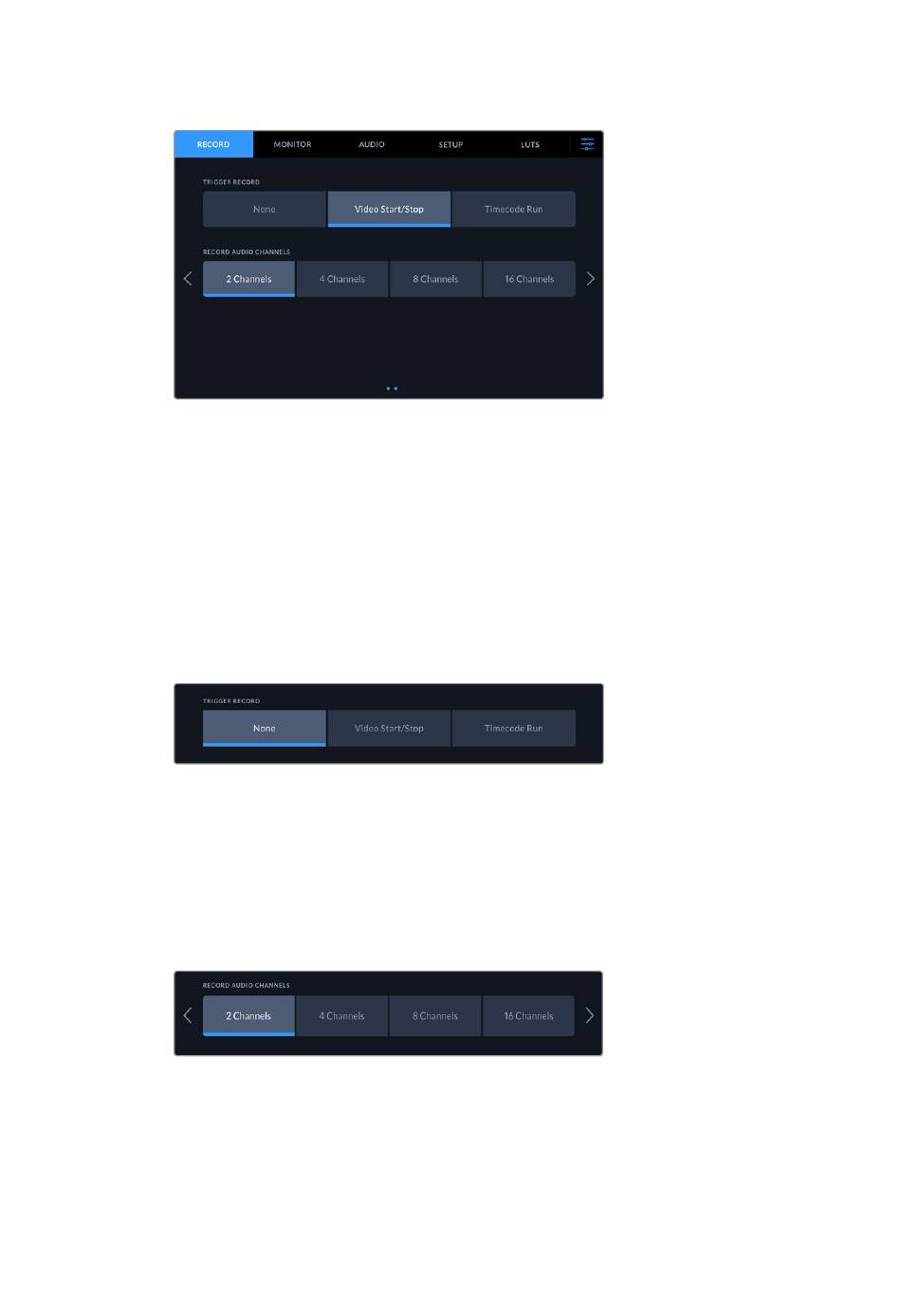

Record Page 2
Additional settings on the second record page
Trigger Record
There are two trigger record modes available, video start/stop and timecode run.
Some cameras, such as the URSA Mini, send a signal over SDI to start and stop
recording on external recorders. Tapping on 'video start/stop' will trigger the
HyperDeck Extreme to start or stop recording when the record button is pressed on
the camera.
You can use the time 'timecode run' option to trigger the unit to start recording when it
receives a valid timecode signal via the inputs. When the signal stops, recording will
also stop. You can disable trigger recording by tapping the 'none' option.
Select 'none' to disable trigger recording
Record Audio Channels
HyperDeck Extreme 8K HDR can record up to 16 channels of audio at a time. Select
how many channels you wish to record by tapping 2, 4, 8 or 16 channels. If you are
recording 4 channels or less, you can adjust the input volume level by using the
adjustments meters on the audio tab or the onscreen audio meter settings. For more
information, see the 'audio settings' section later in this manual.
Tap on 2, 4, 8 or 16 channels to select the
number of audio channels you want to record
