NOTE When plugging in external power, make sure the power voltage output matches
the input voltage range marked on the rear panel.

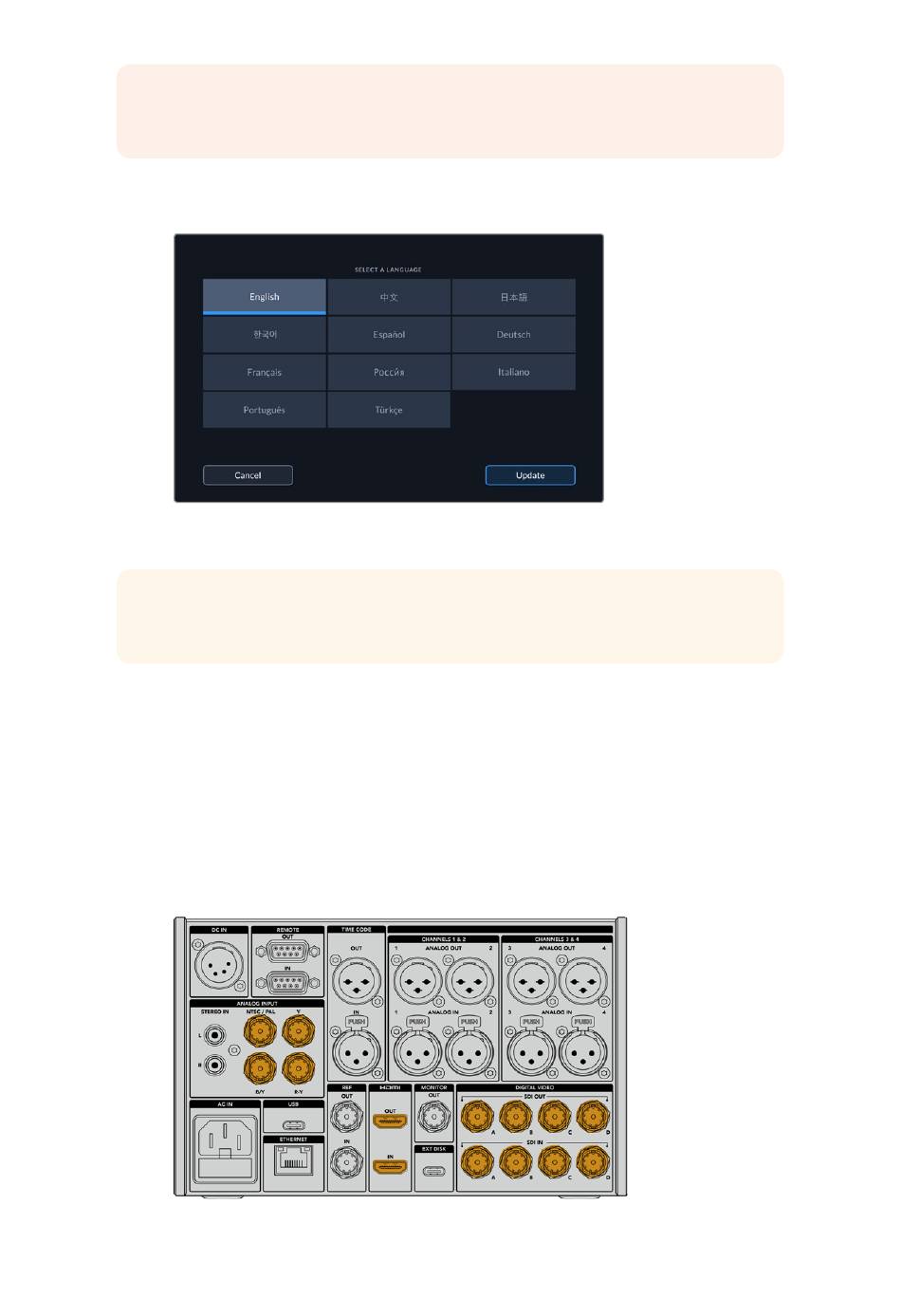

Once powered, the touchscreen display will prompt you to select your language. To select your
language, tap on the language option followed by 'update'. The main window will now appear.
Select your language and tap update to confirm
TIP You can change your language at any time via the setup menu. For more
information, see the 'setup tab' later in this manual.

Plugging in Video and Audio

There are a range of connectors on the rear of the unit so you can plug in a variety of sources,
from analog composite and component video, to SDI and HDMI.
If you want to connect an HDMI or SDI monitor, plug them into the HDMI or SDI outputs.
Audio is embedded in SDI and HDMI so you don't have to worry about connecting audio.
However, if you want to plug in analog audio sources you can connect them via the balanced
XLR or unbalanced RCA inputs. For detailed information on all the input and output connectors,
refer to the 'HyperDeck Extreme 8K HDR rear panel' section of this manual.
Plug your video source into the SDI, HDMI or analog video inputs
Getting Started with HyperDeck Extreme 8K HDR 5
