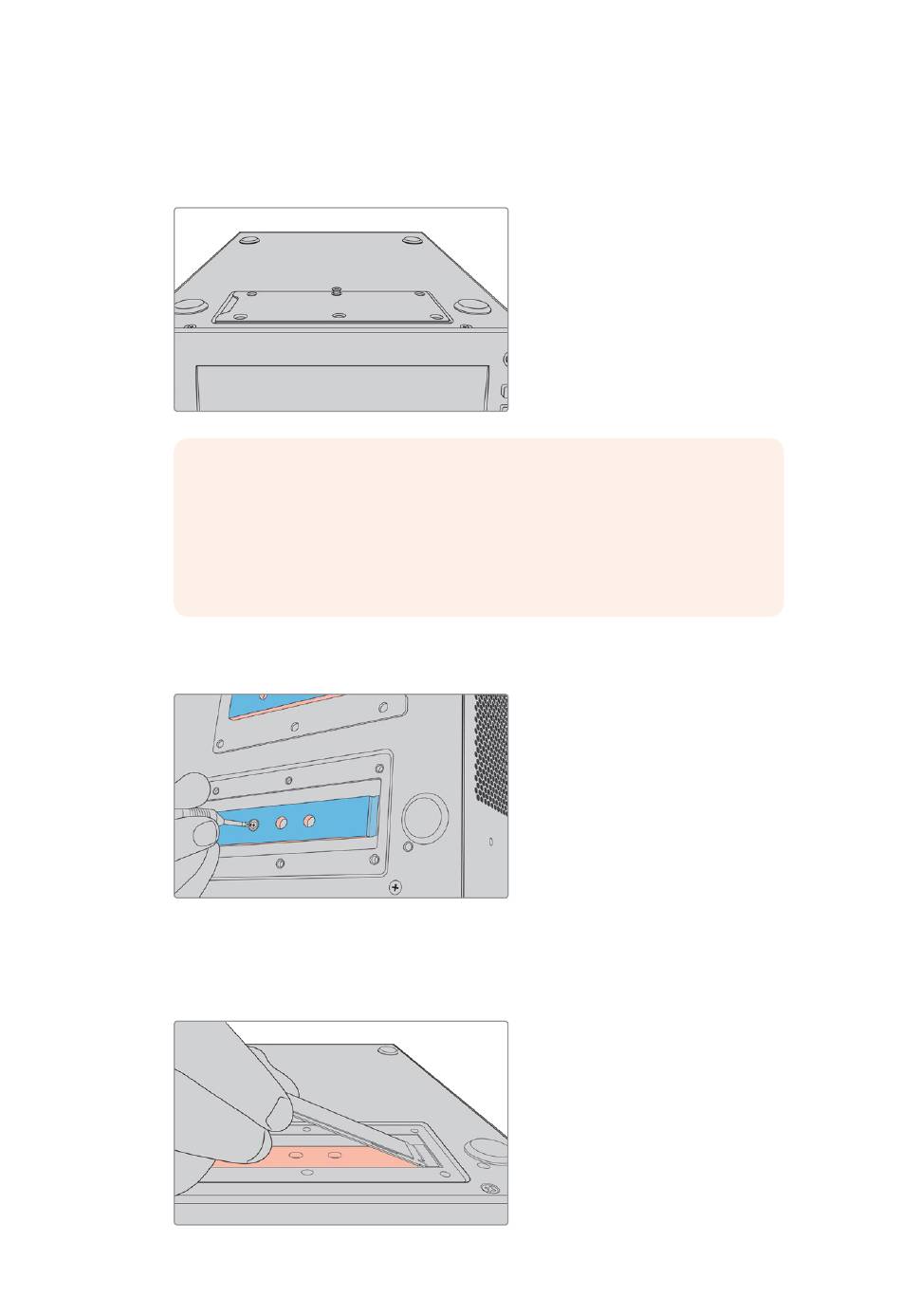

To install the cache:
1
Disconnect your HyperDeck Extreme 8K HDR from the power source. You can leave
other cables connected, but you may find it easier to remove them.
2
Turn the unit upside down and unfasten the 6 screws from the cover plate to remove it.
NOTE
HyperDeck Extreme 8K HDR ships with thermally conductive heat pads
pre installed to fill the air gaps between your PCIe flash disk and the unit.
These work by transferring the heat away from the PCIe flash disk to the
chassis. One pad is installed onto the mother board, the other on the inside
of the cover plate. Remember to remove the blue protective film when
installing a SSD.
3
Unfasten the standoff mount screw. If you are using a different length NVMe card,
unscrew the standoff mount as well and lightly fasten it into the suitable slot.
4
Peel back the protective blue film on the motherboard heat pad.
5
Remove your NVMe SSD from the packaging and slide the card into place in the
PCIe slot. The slot will pivot up to 30 degrees to help installation.
Using the Optional Internal Cache
49
