4 Search dial, indicator LEDs and mode buttons
There are three modes when using the large search dial; shuttle, jog and position.
The row of LED lights will indicate the search direction depending on which mode
is selected. Turn the dial left or right to fast forward or rewind.
5 Transport Controls
Traditional transport controls provide familiar playback controls including play, stop,
record and edit. The skip buttons are for file based decks such as a
HyperDeck recorder.
6 Timecode Entry and Trim buttons
You can select your in and out points and refine them frame by frame by using the
timecode entry and trim buttons.
7 Deck status indicators
LED indicators will display the status of the deck letting you know when it is ready for
playback and recording.

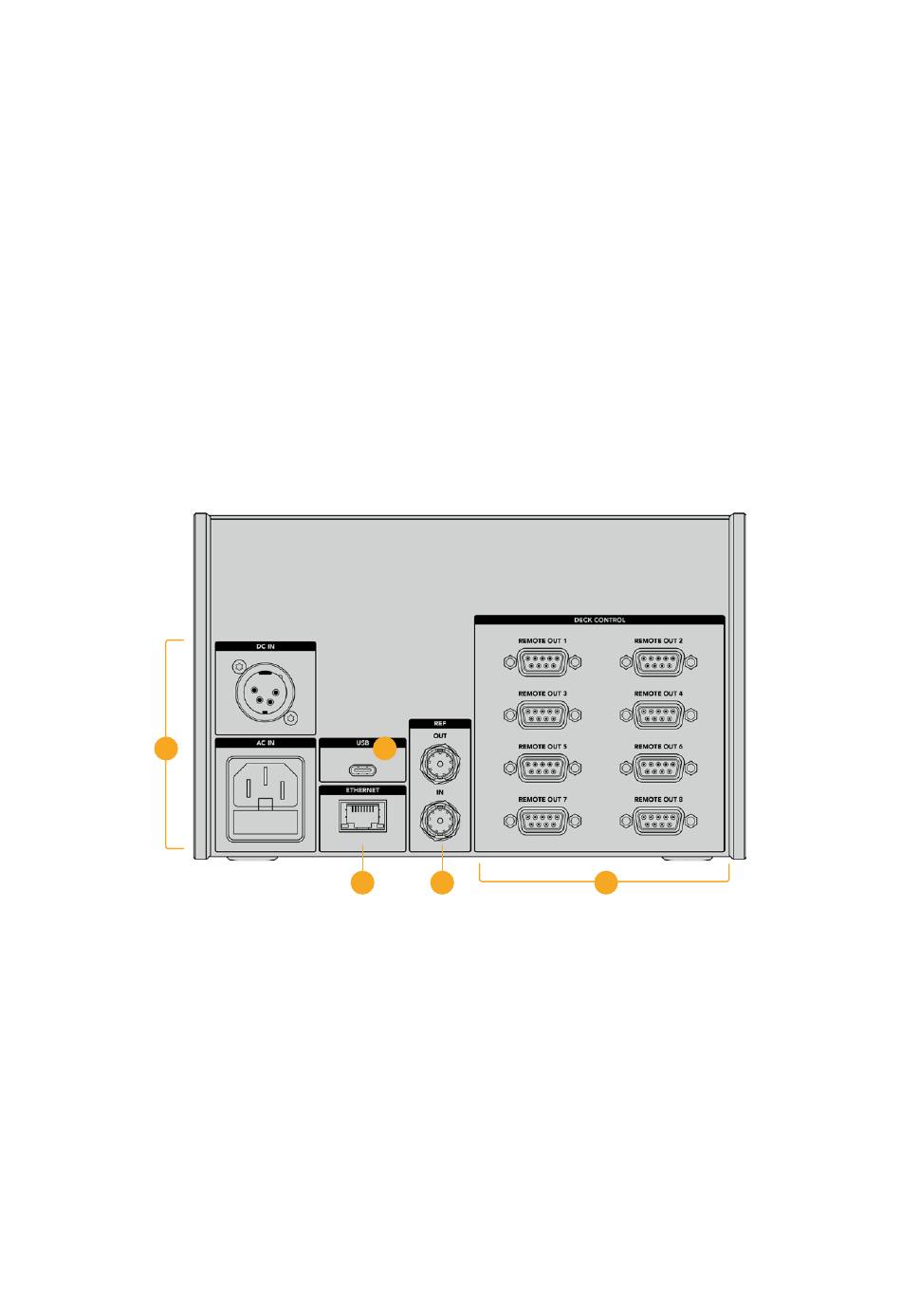

HyperDeck Extreme Control Rear Panel

8
8 Power Inputs
The HyperDeck Extreme Control has inputs for both AC and DC power.
9 USB
A USB port lets you connect your controller to a computer so you can update via the
HyperDeck Setup Utility.
10 Ethernet
The ethernet connection is not enabled at this time.
11 Reference
Reference out and reference in connections for synchronous recordings between
connected devices.
12 Deck Control
Eight numbered RS-422 connections to connect up to 8 RS-422 enabled devices.
9
10 11 12
HyperDeck Extreme Control Rear Panel 62
