Connecting Your Video Signal - Blackmagicdesign HyperDeck Extreme Control Installation And Operation Manual

By tightening the screws to either side of your 9 pin serial
cable, you can prevent any interruption to the connection.
TIP HyperDeck Extreme 8K HDR and HyperDeck Extreme Control can both be rack
mounted using the HyperDeck rack mount kit. See the section 'accessories' later in
this manual.

Connecting your Video Signal

With the HyperDeck Extreme 8K HDR, you can use the large touchscreen display to view
playback of your tape device.
To connect your video signals:

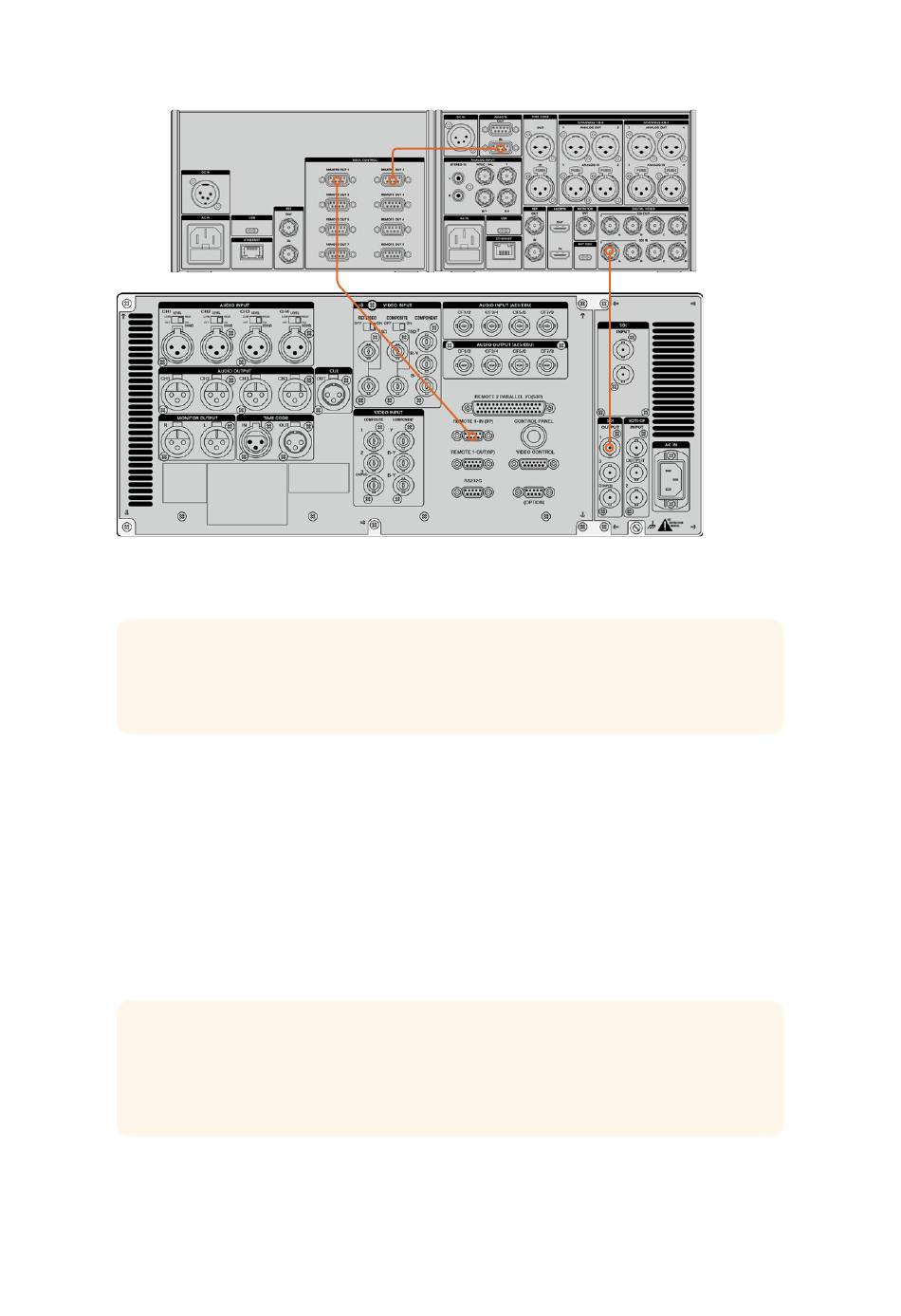

1 Connect a BNC cable to the 'SDI out' connection on the rear of your tape based deck
to the 'SDI in A' connection on the HyperDeck Extreme 8K HDR.
2 Insert your cassette tape into the tape based deck.
3 Put your deck into 'remote' mode.
TIP The HyperDeck Extreme 8K HDR can accept both digital and analog based
sources, meaning you can also archive media from analog based tape decks. Just
connect the composite out of the tape deck to the composite in on the rear of the
HyperDeck Extreme 8K HDR.
HyperDeck Extreme Control Workflow 54
