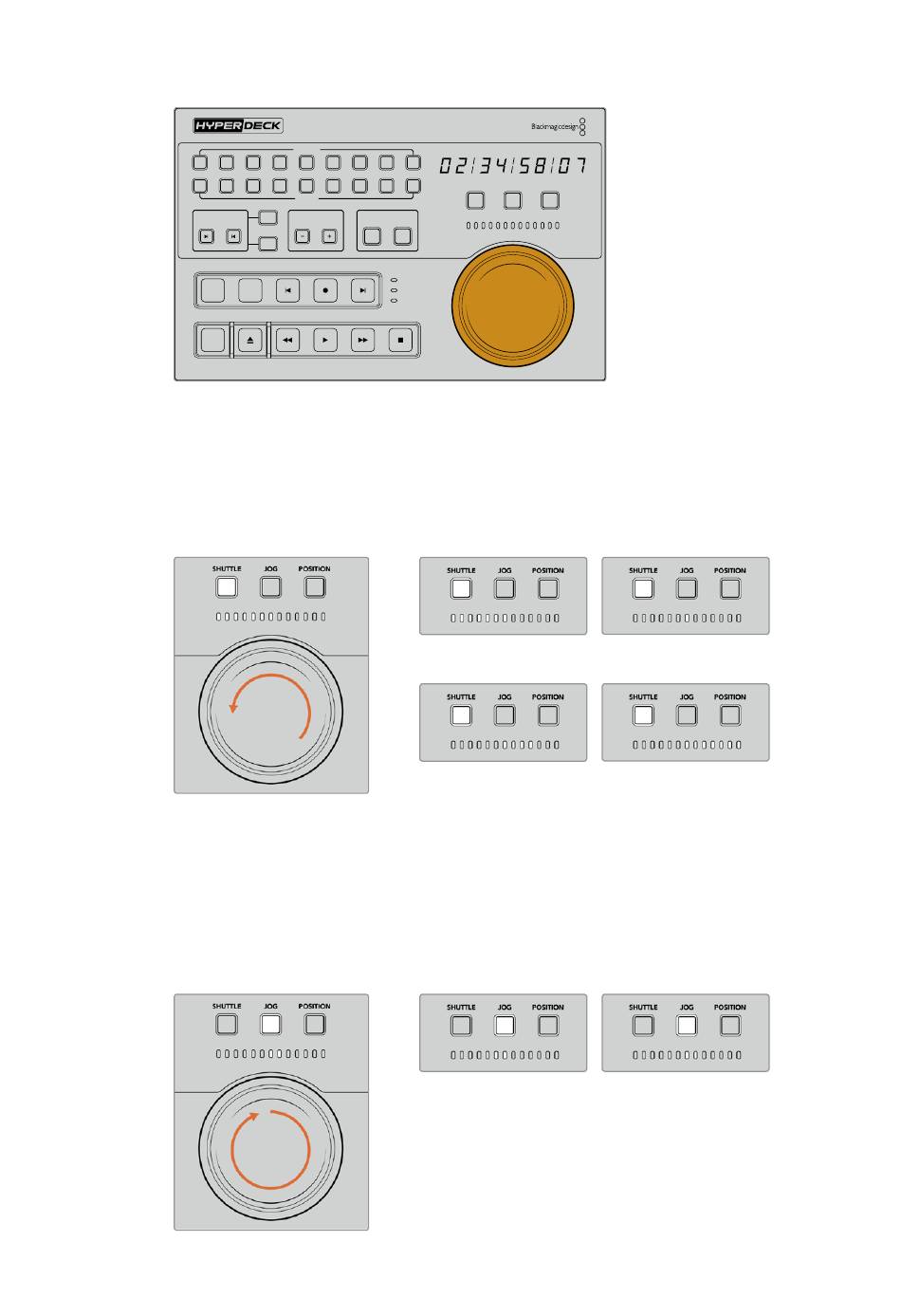

When you are in shuttle mode you can turn the dial to the left or right up to a maximum
of 120 degrees to rewind or fast forward your tape or file based media. The further you
turn the dial towards the 90 degree mark, the faster the media will spool until the clutch
engages to let you know you are at full speed. To stop spooling, return the dial to the
center position. You will feel a tap on the knob when you reach the center.
Light indicators above the search
dial will indicate the direction and
speed you are traveling in shuttle mode.
Jog
Jog mode offers precise control over tape and drive based decks with a slower speed
compared to 'shuttle' mode. Press the jog button to select jog mode and the button will
illuminate. The search dial will now respond to how fast you rotate the dial. The dial will
spin freely without any clutch engaging.
Light indicators will display the
direction of your search dial position.
HOURS MINUTES SECONDS
7 8 M
SHUTTLE JOG
7 8 M
PLAYER RECORDER
SKIP
REF
SERVO
REMOTE
F FWD STOP
Full reverse
Forward
Jog backward
FRAMES
POSITION
Stop position
Full speed forward
Jog forward
